11
After installing the body
tighten the nuts.
Ceiling
Special nut B
Hanging bolt
Special nut A
30mm(1-3/16°) or
more

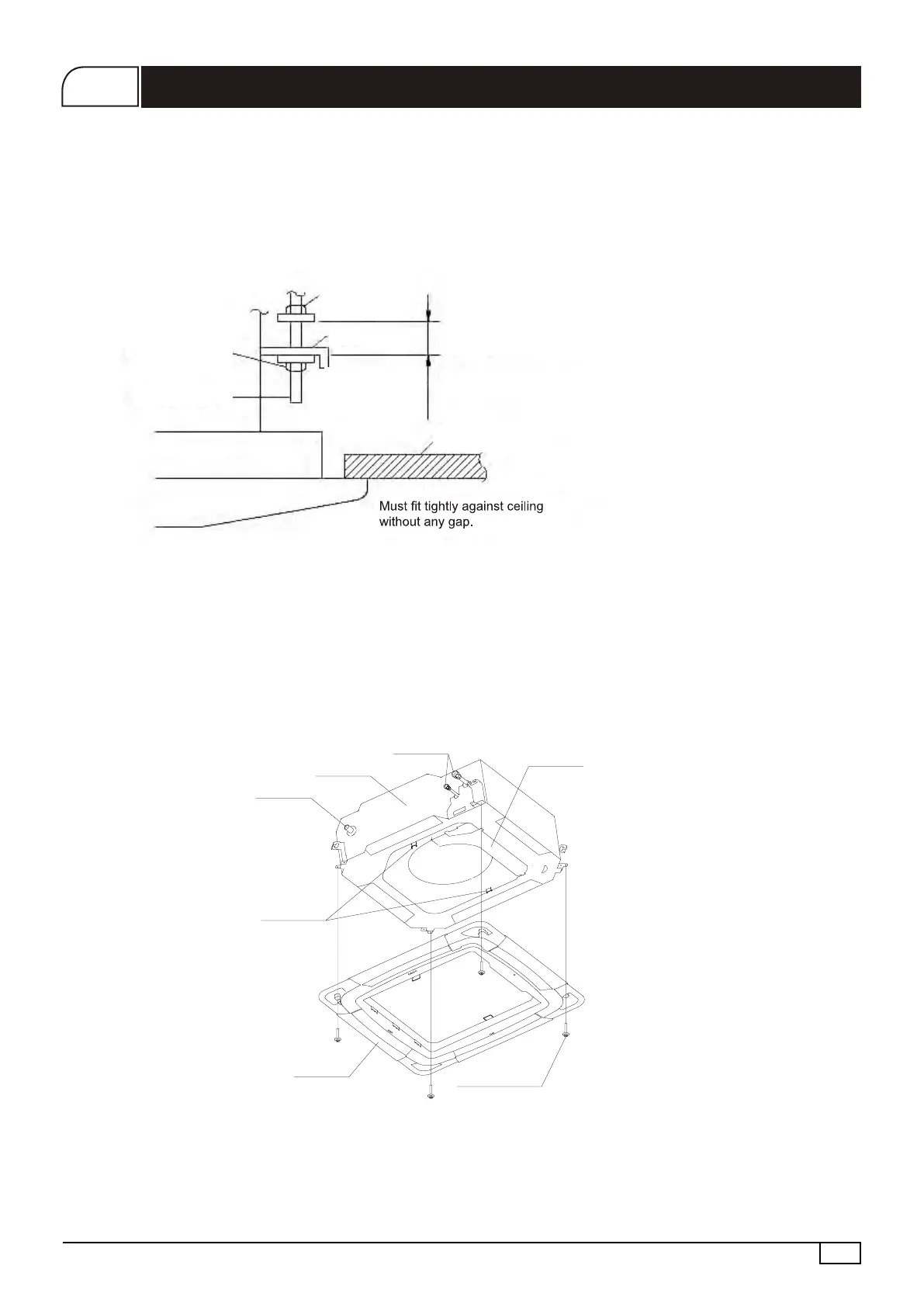

3. Body Installation
1) Install nut A, then nut B onto the hanging bolt.
2) Raise the body and mount its hooks onto the hanging bolt between the special nuts.
3) Turn nut B to adjust the height of body.
4) Leveling using a level to ne adjust the body for proper positioning.
Hook
Fig. 4
4. Panel Installation
1) Connect plugs of water pump and swing motor.
2) Fix panel with screws.
Refrigerant pipe
Indoor unit
Drain pipe
Housing
2
×
U-shaped
hooks
Trim panel
4
×
Bolts (M5*25)
(including gaskets)
Fig. 5
Installation Procedure
To Next Page
