MODEL 06206
MARINE WIND TRACKER
INTRODUCTION
The YOUNG Model 06206 Marine Wind Tracker is a compact wind speed
and wind direction display. This model has features such as relative
wind angle and NMEA compatibility that make it suitable for shipboard
use.
FEATURES
• 3 digit wind speed display
• 3 digit maximum wind speed or wind direction display
• Multi-color wind direction display with variability display
• Wind speed and direction alarms with delay
• RS-485/NMEA serial connections
• Calibrated 0-5 VDC outputs
• Display brightness control
• 4-20 mA Sensor Inputs
• Luminous front panel markings
PRECAUTIONS
• INDOOR USE ONLY unless placed in approved enclosure.
• Operating temperature range 0-50°C (32-122°F), 0-95% RH.
• Use only recommended power sources; 12-30VDC, 4.5 W.
• Disconnect power when making connections or servicing
sensors.
• MAXIMUM 24 VAC/30 VDC on alarm relay contacts.

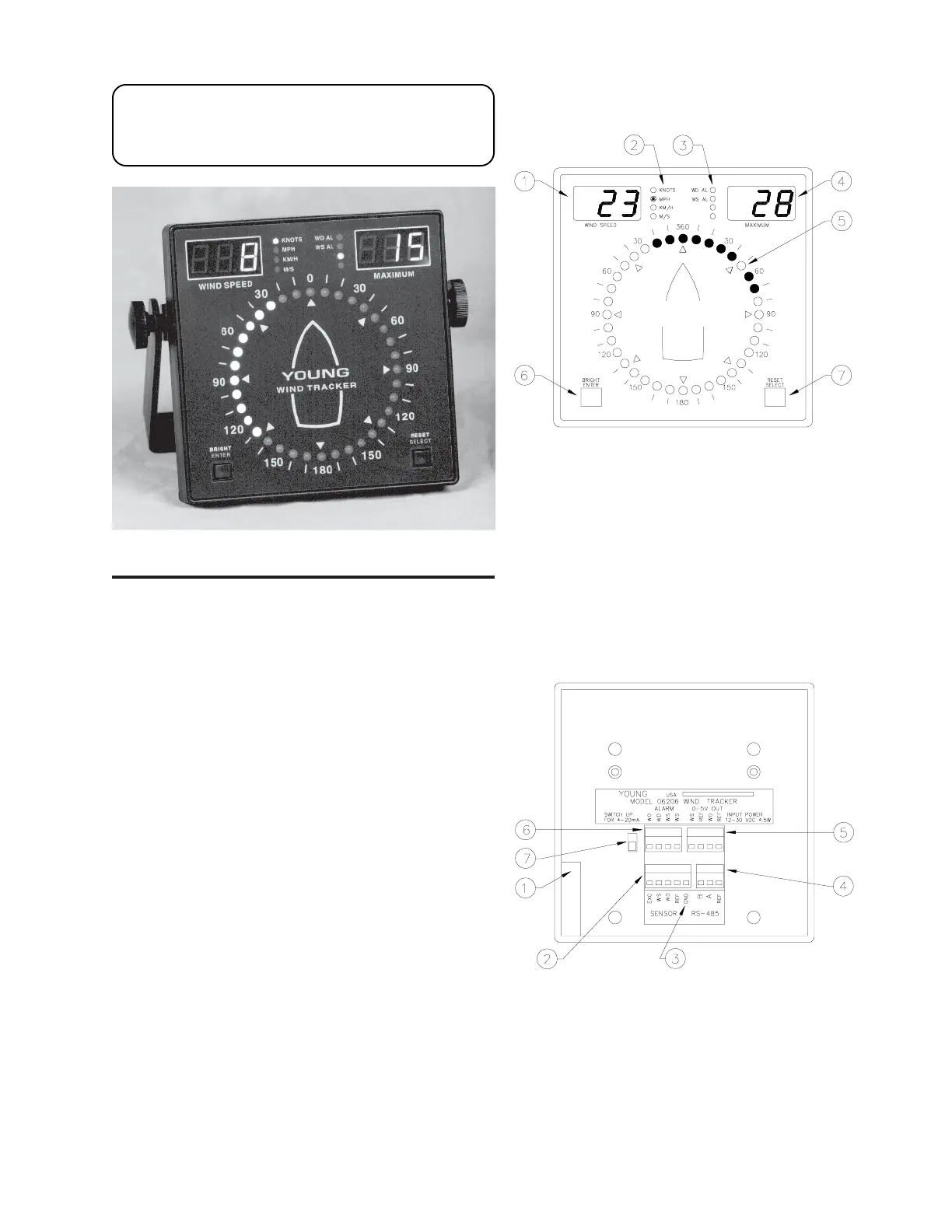

FRONT PANEL
1. Wind Speed Display
2. Wind Speed Units Indicator
3. Alarm Status Indicators
4. Maximum Wind Speed or Relative Wind Direction Display
5. Relative Wind Direction and Variability Display
6. Brightness (operate mode), ENTER (setup mode)
7. MAX RESET (operate mode), SELECT (setup mode)
BACK PANEL
1. Power input (12-30 VDC) AC adapter supplied
2. Sensor or 4-20 mA inputs
3. Earth ground connection
4. RS-485/NMEA serial connections
5. 0-5 VDC calibrated outputs
6. Alarm relay connections (normally open)
7. Input selector switch
YOUNG
WIND TRACKER
