Correctway to climb onto
platform

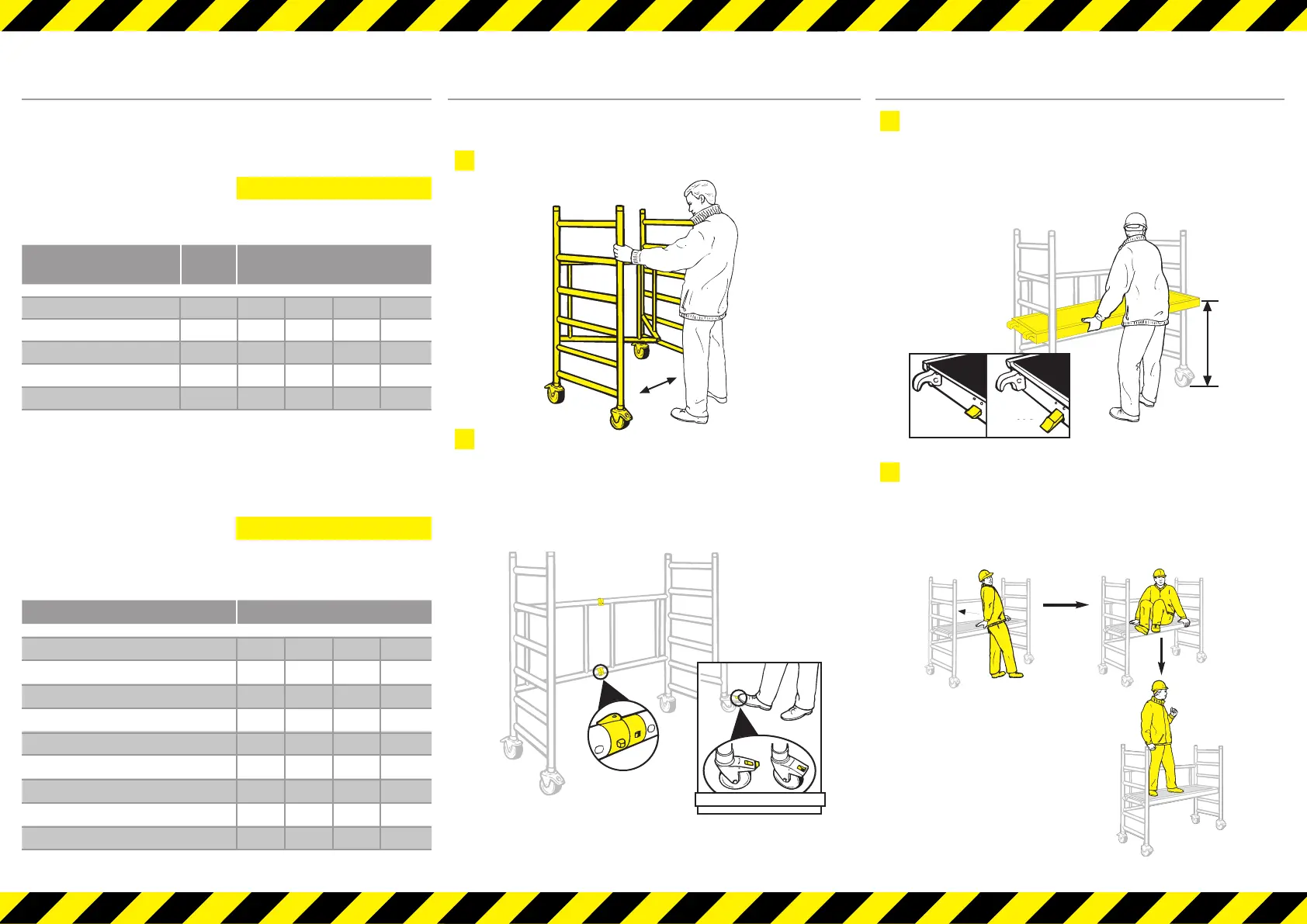

Assembly
Stage 1: Base Pack
Move the Base Unit into required position. Unfold Base
Frame.
Push folding frame outwards until folding elbow joints
lock into position. Fully unfold base frame. Ensure both
folding elbow joints are in locked position (see insert). To
unlock joint press latch inwards.
Lock brake on castors, ensure castors always face
Quantity Schedule
Quantity Schedule in Packs
Mini-Max Tower to HD1004: 1.83m platform Length
Internal/External Use
Working Height (m)
2.8m 3.7m 5.7m 7.8m
Platform Height (m)
0.9m 1.7m 3.7m 5.8m
Description Weight
(KG)
Pack Quantities
Base Pack 34 1 1 1 1
Guardrail Pack 16 1 1 1
2m Extension Pack 44 1 2
Small Stabiliser Pack* 12 2 2
Medium Stabiliser Pack* 09 2
* 4 Stabilisers required in total.
Quantity Schedule in Components
Mini-Max Tower to HD1004: 1.83m platform Length
Internal/External Use
Working Height (m)
2.8m 3.7m 5.7m 7.8m
Platform Height (m)
0.9m 1.7m 3.7m 5.8m
Description Component Quantitiies
Folding Base Frame 1 1 1 1
Trapdoor Platform 1 1 2 3
8 Rung Frames 2 4
Diagonal Braces 1 4 7
Horizontal Braces 5 7 9
Toeboard Kit 1 1
Guardrail Frames 2 2 2
Small Stabilisers (SP7) 4* 4
Medium Stabiliser Pack* 4
* Only required for external use.
Assembly
3
Position platform at desired height level.
Do not position platform above 3rd rung.
Ensure windlock is locked in position and Trapdoor
Platform is level before ascending platform.
4
Base Frame assembly is now complete. Always
climb from the inside of the frame – never the
outside. When working on platform never over-reach.
End Frames should be used to provide a rm
hand hold.
6
1
2
UNLOCKED LOCKED
7
Unlocked Locked
Unlocked
Locked
Correct way
to climb onto
platform
8
