Assembly
During assembly a Temporary Guardrail will be employed.
10
Position Trapdoor Deck on 8th rung. Ensure windlocks
on both sides are locked (see Fig 3). Ascend the tower
through the trap door of the platform.
All components must be passed through the trap door
or be lifted well within the footprint of the tower.
Temporary Horizontal Guardrails must be positioned 4
rungs up from the platform during building.
Assembly
Stage 3
11

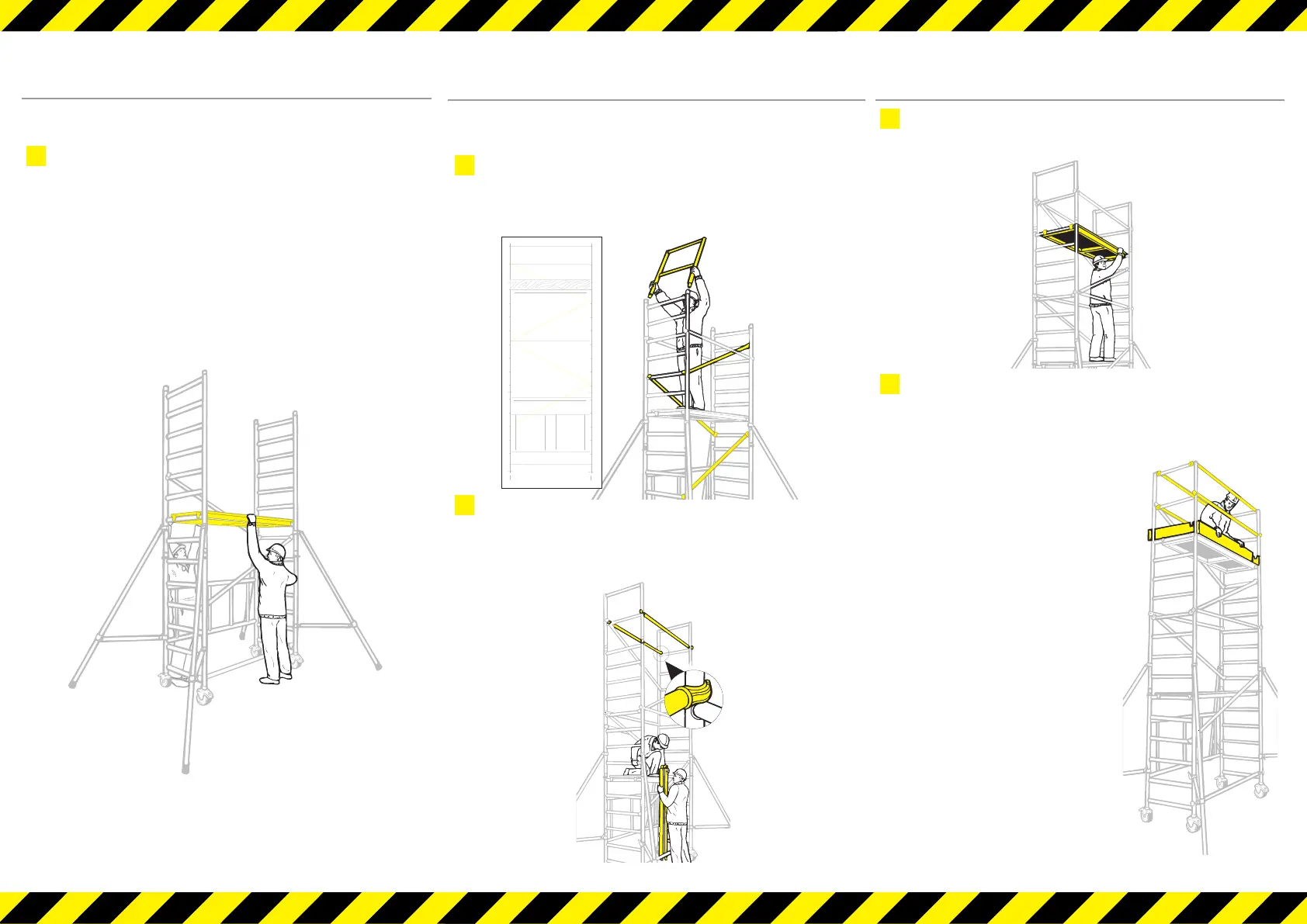

Fit temporary Guardrails. Locate Guardrail Frames
and Guardrails. Ensure the interlock clips are engaged.
Bracing pattern should follow a simple zig-zag shape (see
insert).
12
Ensure Intermediate Guardrails are positioned onto
the upright above the horizontal tube, with the claws
locked outwards as shown. Then move the platform and
temporary Guardrails down 2 rungs.
12 13
Assembly
13
Move other platform to the top rung of the 2m
Extension Frame. Ensure all Windlocks are locked.
14
Position upper Guardrails. Now fit toeboards correctly,
ensuring there are no gaps large enough for objects to fall
through and that the trap door can open and close with
ease. (see Toeboard section).
Your Tower is now complete
and is ready to use.
For increased heights refer to
quantity schedule for additional
packs, erect as described in
stage 2.
To dismantle see
dismantling on page 16.
