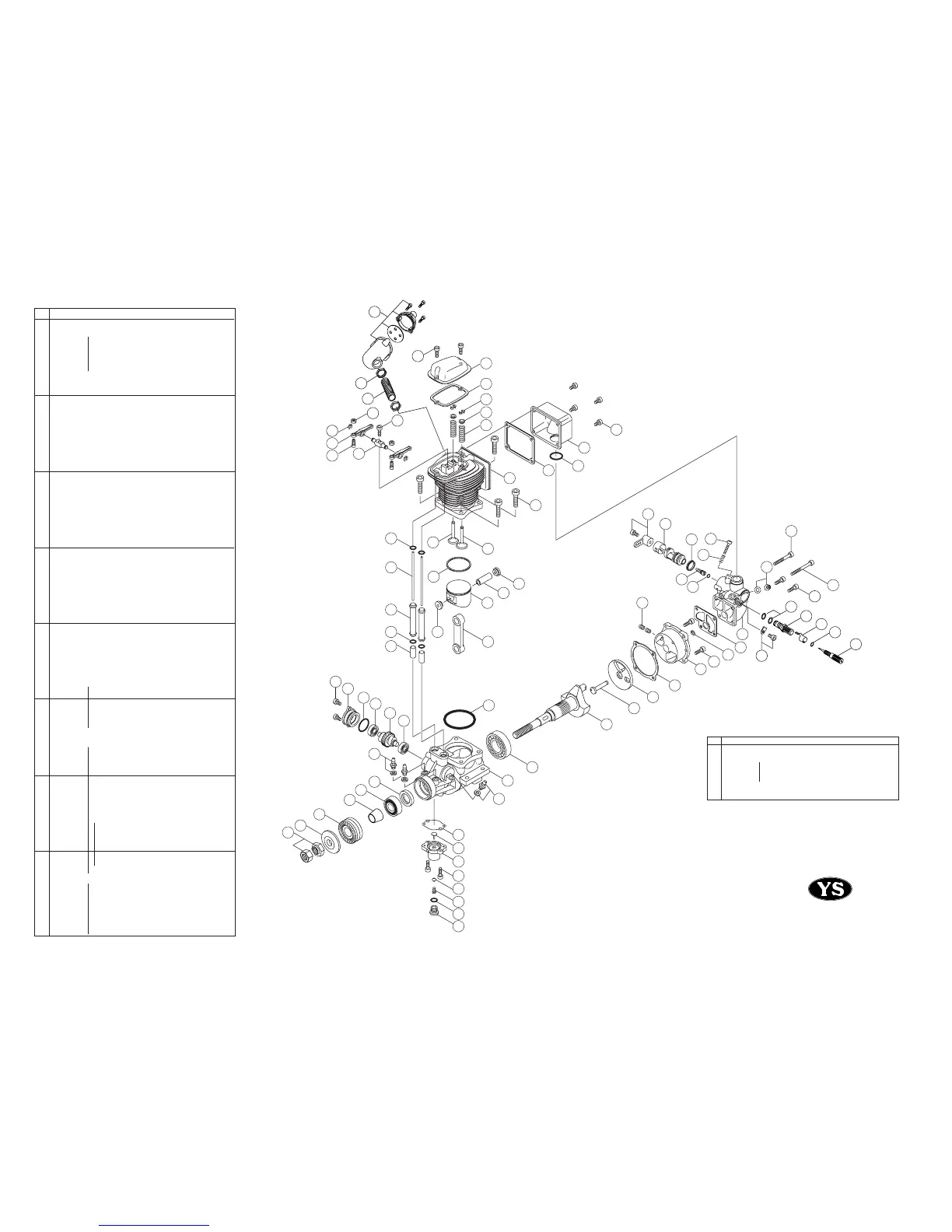

1 F7101 Crankcase 1
F7102A Cylinder Head
2 F7102 Cylinder Head with Liner 1
3 F9103 Intake Valve 1
4 F9104 Exhaust Valve 1
5 F1209 Valve Spring Set 2
6 F9106 Spring Retainer Set 2
7 F9107 Valve Spring Retainers Clips 4
8 F9208 Cylinder Head Gasket 1
9 R6115 Draive Washer Spacer 1
11 F9111 Head Screws 4
12 F9112 Valve Cover 1
13 F9113 Valve Cover Gasket 1
14 F9114 Valve Cover Screws 2
15 F9115 Air Chamber 1
16 F9116 Air Chamber Gasket 1
17 F9117 Air Chamber Screws 4
18 F9118 Air Chamber O Ring 1
19 F9319 Crankshaft 1
20 F9120 Rear Bearing 1
21 F1240 Front Bearing 1
22 F9122 Front Bearing Oil Seal 1
23 F9323 Drive Washer 1
24 F9324 Drive Washer Retainer 1
25 F1266 Propeller Washer 1
26 F1267 Propeller Nut Set 2
27 F1421 Piston 1
28 F1224 Piston Ring 1
29 F1222 Wrist Pin 1
30 F1323 Wrist Pin Retainer 2
31 F9131 Rocker Arm Set 2
32 F1213 Tappet Adjusting Screw Set 2
33 F1214 Tappet Lock Nut 2
34 F9134 Rocker Arm Shaft 1
35 F9135 Rocker Arm Screw 1
36 F1217 E Ring Set 2
37 F1235 Cam Gear 1
38 F9138 Cam Gear Cover 1
39 F1233 Cam Gear Cover O Ring 1
40 F9140 Cam Gear Cover Screws 2
41 F1242 Cam Gear Bearng 2
42 F1236 Cam Follower 2
43 F9143 Push Rod 2
44 F9144 Push Rod Covers 2
45 F1239 Push Rod Covers O rings 4
46 F9146 Con Rod 1
F9147A Rear Cover Assy.
47 F9147 Rear Cover 1
48 F9148 Disc Valve 1
49 F9149 Disc Valve Pin Retainer 1
50 F1229 Disc Valve Set 1
51 F9151 Disc Valve Pin E Ring 1
52 F9152 Rear Cover Gasket 1
53 F9153 Rear Cover Screws 4
F9354A Carburetor Assy.
54 F9354 Carburetor Body 1
55 F9355 Throttle Barrel 1
56 F9156 Low Needle Valve 1
57 F9157 Low Needle Valve O Ring 1
58 F9358 Throttle Barrel Seal 1
59 R6124 Throttle Barrel Retainer 1
60 F1260S Throttle arm 1
61 F1258 Throttle Stop Screw 1
62 F1259 Throttle Stop Spring 1
F1554S Needle Valve Set
63 F1554 Needle Valve 1
64 F1546 Needle Valve O Ring 1
65 F1555 Needle Seat 1
66 F1256 Needle Seat O Ring 2
67 F1557 Needle Valve Detent 1
68 F9164 Carburetor Gasket 1
69 F9165 Carburetor Screws 2
F9166A Regulator
70 F9166 Regulator Body 1
71 F1245 Regulator Adjusting Screw 1
72 F1246 Regulator O Ring 1
73 F9169 Diaphragm 1
74 F1248 Plunger 1
75 F1249 Regulator Spring 1
76 F1251 Regulator Screws 2
NO. PART# DESCRIPTION QTY
'99NOV.
77 F9174 Fuel Nipples 4
F9377A Muffler Set
78 F9377 Muffler 1
79 F9378 Exhaust Pipe 1
80 F9379 Lock Nuts 2
F9390 Gasket Set 4
F9391 O Ring Set 11
NO.PART# DESCRIPTION QTY
