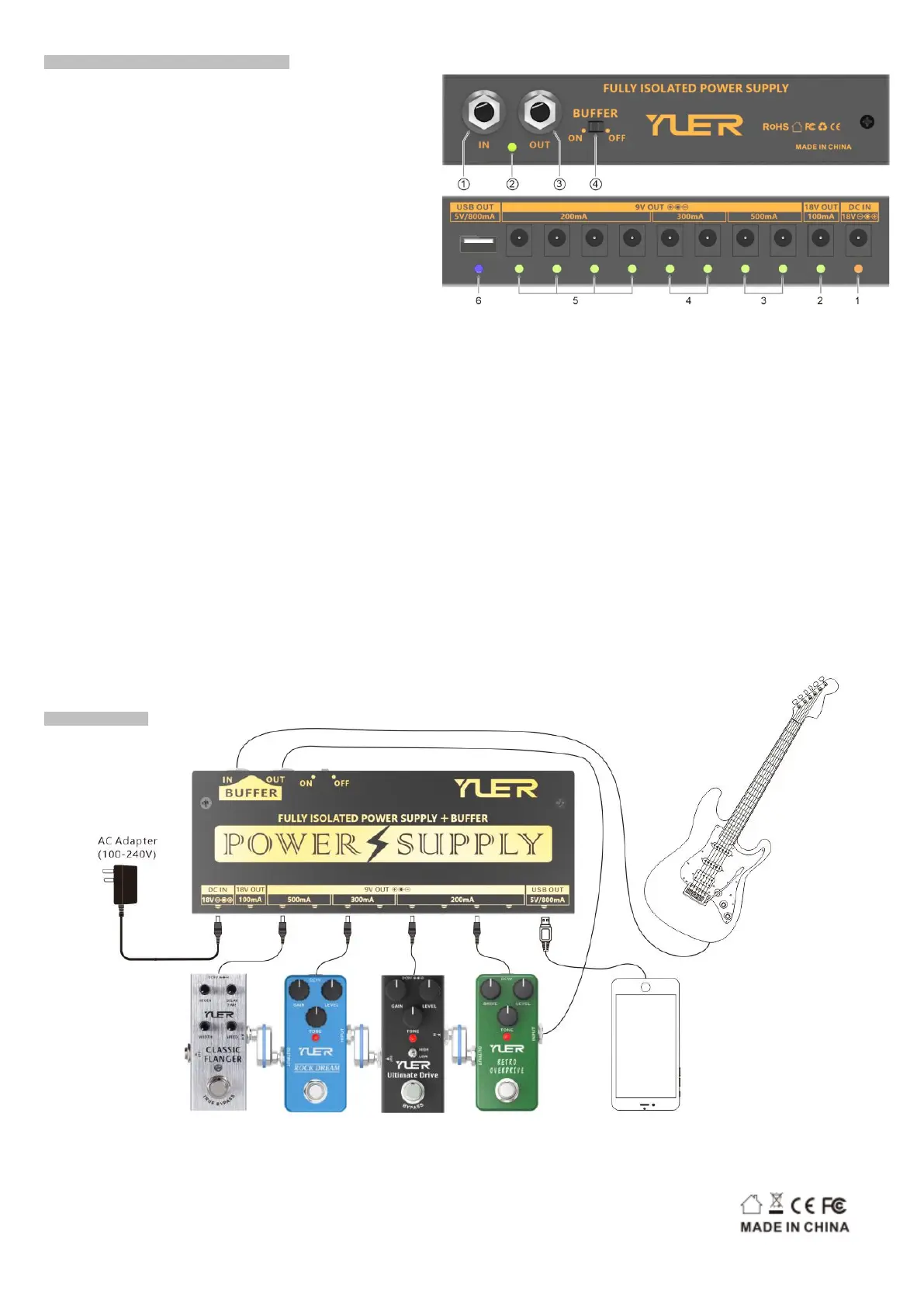

Names and functions of components
1. BUFFER input 1/4" mono connector.
2. BUFFER working indicator, green LED when on,
LED off when off.
3. BUFFER output 1/4" mono connector.
4. BUFFER switch: turn BUFFER function on or off, TRUE
BYPASS when off
1. 18 VDC input port, plug the output of AC power adapter in here. Orange indicator LED with correct function. LED off in if short
circuit or polarity protection is triggered.
2. 18 V / 100 mA DC, center negative, output socket. The maximum output current is 100 mA, Green indicator LED with correct
function. LED off in if short circuit or polarity protection is triggered.
3. 9 V / 500 mA DC, center negative, output sockets. The maximum output current is 500 mA, Green indicator LED with correct
function. LED off in if short circuit or polarity protection is triggered.
4. 9 V / 300 mA DC, center negative, output sockets. The maximum output current is 300 mA, Green indicator LED with correct
function. LED off in if short circuit or polarity protection is triggered.
5. 9 V / 200 mA DC, center negative, output sockets. The maximum output current is 200 mA, Green indicator LED with correct
function. LED off in if short circuit or polarity protection is triggered.
6. Standard USB-A socket, +5 VDC power output. The maximum output current is 800 mA. Blue indicator LED with correct function.
LED off in if short circuit or polarity protection is triggered.
Note: In case of serious overload or a short-circuit, independent protection measures are triggered for each individual output interface.
The respective output will be turned off. Please disconnect the connection as soon as possible and verify that the connected device
meets the parameters for the output interface.
BUFFER use (for instruction purposes only, actual operation may differ):
1. Connect the buffer between your guitar and other effects to suppress the loss of signal and external interference caused by
excessive cable length.
2. Connect the buffer between your effects and the amplifier to enhance the sound of the equipment connected before the BUFFER
and eliminate unnecessary noise.
3. Add a BUFFER before and after your effects chain.
4. Activate the BUFFER according to your tonal preferences.
How to connect
Packing list Power supply: 1 piece (dimensions: 160x60x32 mm, weight: 400 g)
DC cable: 9 pieces (plug size: outside diameter: 5.5 mm, inside diameter: 2.1 mm)
AC Adapter: 1 piece
Owner's manual: 1 piece
