Z-Shade Lawn & Garden User Manual

TAKE DOWN
AB
Push
Button
Lock
LOWERED CANOPY
NOTE: With canopy in lowered position,
TAKE CAUTION and walk UNDERSIDE
canopy to raise.
UNDERSIDE CANOPY
Push hub A) up the runner with one hand
while holding upper frame with other hand
until snap button B) locks.
Hub
Snap
Button
Push
Button
Lock
Now, with partner, lift outer legs up
and slide out the inner legs until the
push button locks into outer legs.
Repeat on remaining legs.
SKIRTS SET UP
Push
Button
Slider
Push
Button
Lock

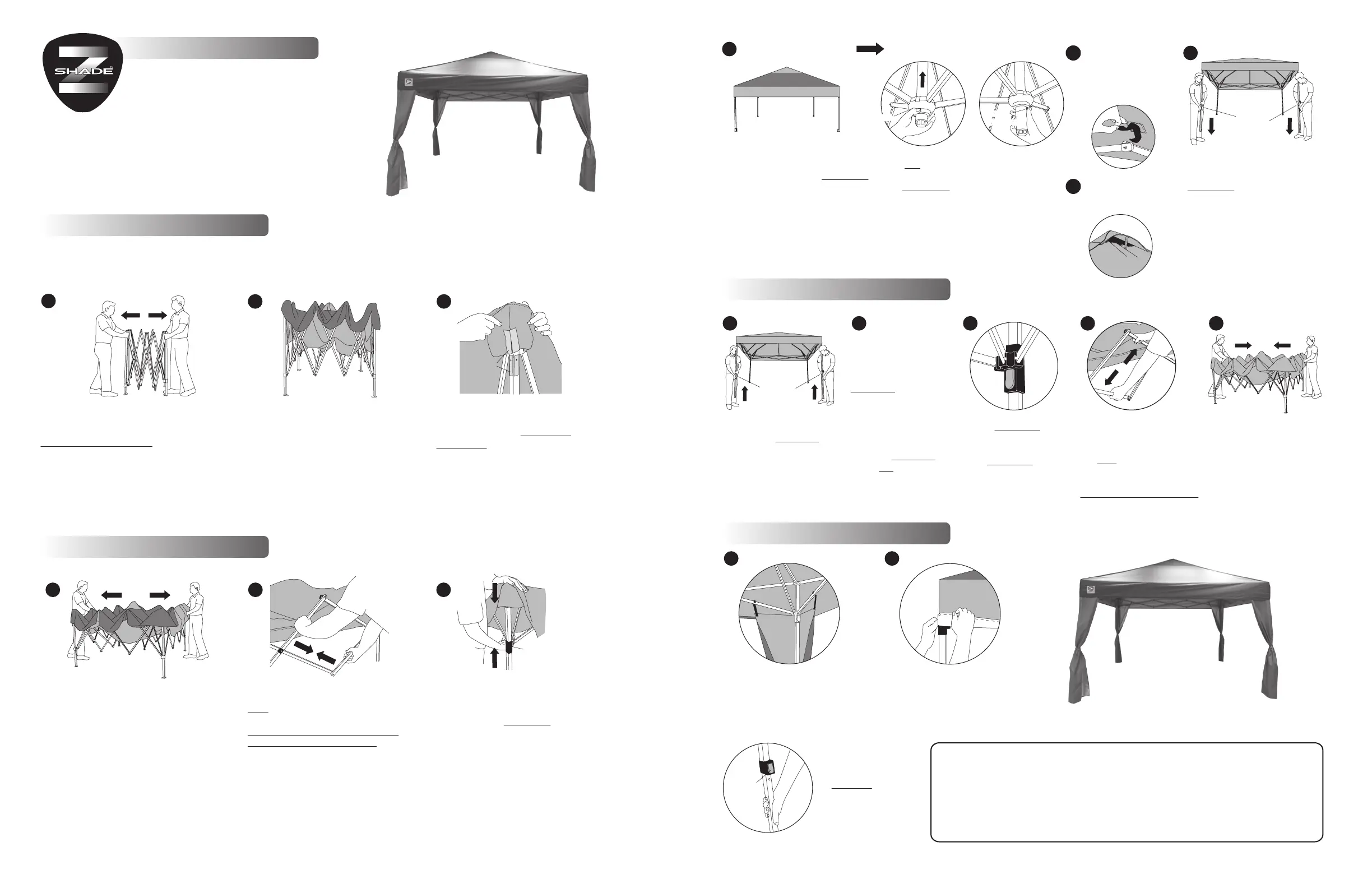

INITIAL SET UP
PACKAGE INCLUDES
Please read each step before you attempt to set up. Save these instructions for future reference.
SET UP
• Z-Shade Frame
• Polyester Top
• Roll Away Bag
• 4-Piece Leg Skirts
• 4-Piece Stake Kit
Locking
Strips
With partner, grasp 2 outer legs, slightly lift
off the ground, and step backwards –
stopping at full arms’ length.
With partner on opposite side, place your frame
in the center of area to be shaded. Grasp 2
outer legs, lift off the ground, and step
backwards - stopping at full arms’ length.
1
1
Attach the skirts by locking the skirts
clips on the bottom of outer truss at
adjacent corners.
Repeat on the remaining corners.
1
Unfold the polyester top and place it
over the open frame. – Align all corners
of the canopy top over the corners of
the frame.
Grasp the top and bottom of the truss on
opposite sides. Slightly lift canopy up and
PUSH hands together while stepping
backwards until canopy is fully opened.
Be careful not to pinch fingers or push too
hard so as to avoid damage to truss.
NOTE: OPEN & CLOSE labels.
2
2 3
Secure the polyester top to the frame by
attaching the canopy locking strips to the
locking strips on the frame.
Fully pull the corners down.
To engage slider at corners, first lift the
fabric off of the slider. Then, with one
hand hold the top of the leg while
PUSHING UP the push button slider
with other hand until slider engages.
Repeat on opposite legs.
3
HEIGHT ADJUSTMENT:
Use push button to adjust legs
to desired height.
Repeat on remaining legs.
4
7
With partner, slightly lift up outer
legs and press push button to
unlock and telescope inner legs
into outer legs. Repeat on
remaining legs.
LOWERED CANOPY
NOTE: With canopy in
lowered position,
TAKE CAUTION and walk
UNDERSIDE canopy to
begin to close.
UNDERSIDE CANOPY
– Hold upper frame with
one hand and with other
hand push snap button to
release hub carefully down
the runner.
1
2
Push
Button
Slider
Push
Button
Slider
Release push button slider
at each corner by first
lifting fabric away from
slider. Push button slider
to release slider and
unlock from truss.
3
With partner on opposite side,
grasp top and bottom area of
trusses. Slightly lift canopy up
and PULL hands apart while
stepping towards your partner
until canopy is 3/4 closed.
Be careful not to pinch fingers!
4
Next, with each partner grasping
2 outer legs, push frame
together to fully close it.
Store canopy in roll away bag.
5
WARNING!
KEEP ALL FLAME AND HEAT
SOURCES AWAY FROM ALL PRODUCT FABRICS.
THESE PRODUCTS ARE MADE WITH FLAME RESISTANT FABRIC WHICH MEETS
CPAI-84 SPECIFICATIONS. IT IS NOT FIREPROOF. THE FABRIC WILL BURN
IF LEFT IN CONTINUOUS CONTACT WITH ANY FLAME SOURCE.
Secure the polyester
top on the frame by
locking the strips
around the trusses.
Repeat on all strips.
5
Top Vent - Open the
vents by propping up
the supporting strips.
6
2
Unfold the top canopy fabric back
down to cover each corner skirt.
Repeat on the remaining corners.
