The Zaffer MASTER is a control device designed for managing motorized systems, likely for blinds, shutters, or similar applications, given the visual cues in the manual. It features a numerical keypad and a small display, indicating a programmable and interactive interface. The device is designed for ease of use with clear button functions and a step-by-step programming process.

Function Description:

The MASTER device serves as a central control unit for programming and operating motorized systems. Its primary functions include:

Motor Control: It allows for the activation and deactivation of motors, as well as controlling their direction (changing direction) and movement in steps ("step by step" function).
Limit Setting: Users can define and adjust the upper and lower limits of the motor's travel, ensuring precise positioning of the controlled system. This includes both defining new limits and deleting existing ones.
Time and Date Configuration: The device supports setting the current date and time, which is crucial for any time-based programming or scheduling features it might possess (though specific scheduling features are not detailed in the provided pages).
Day Code Input: A "Day code" feature is present, suggesting a security or access control function, possibly requiring a password for certain operations or to unlock the device.
Motor Number Input: The device allows for the input of a motor number (up to 13 digits), indicating that it can manage multiple motors or requires specific motor identification for programming.
Automatic Shut-off: The device has an automatic shut-off feature, turning off after 5 minutes of inactivity to conserve power.

Important Technical Specifications:

While a comprehensive list of technical specifications is not fully provided in the excerpt, some key details are mentioned:

Power Input (Voeding - Alimentation): 1.5 V DC with 2x AAA batteries. This indicates that the device is battery-powered, offering portability and ease of installation without requiring direct wiring for power.
Frequency (Frequentie): 433 MHz. This specifies the radio frequency used for communication with the motors, implying a wireless control system.
Working Temperature (Werktemperatuur): -20°C to +70°C. This wide operating temperature range suggests the device is robust and suitable for various environmental conditions, potentially including unheated spaces or outdoor installations (though direct outdoor exposure is not explicitly stated).
Protection Level (Beschermingsindicatie): IP 40. An IP40 rating means the device is protected against solid objects larger than 1mm but offers no protection against liquids. This suggests it is intended for indoor use or in environments where it will not be exposed to water or high humidity.
CE Declaration of Conformity: The device complies with the essential requirements of the R&TTE directive 1999/5/EC, indicating it meets European safety, health, and environmental protection standards. A copy of the original declaration of conformity can be requested from ZAFFER Bvba.

Usage Features:

The MASTER device is designed for intuitive operation, guided by a clear interface and step-by-step instructions:

Aan-Uit (ON-OFF) Button: A dedicated button to power the device on and off.
Numerical Keypad: A standard 0-9 numerical keypad, along with 'D' (Delete/Day code) and 'P' (Program/Step by step) buttons, and up/down arrows for navigation and adjustment.
Display: A small screen displays information such as the current date/time, motor numbers, and programming feedback.
Visual Feedback: The manual highlights "click-clak" sounds and "MOTOR Reactie / Réaction = OK" messages, indicating successful commands and motor responses. This provides clear auditory and visual confirmation during programming and operation.
Step-by-Step Programming: Many functions, such as configuring date/time, setting limits, and changing direction, are presented as sequential steps, making the programming process straightforward. For example, setting the date involves entering DD/MM/YY and then HH/MM/SS.
Changing Direction: The "Toets «verandering draairichting»" (Button for "changing direction") allows for easy alteration of the motor's rotation direction, often confirmed by a single "click-clak" and motor reaction.
Step-by-Step Function: The "Toets «stap per stap» functie" (Button for "step by step" mode) enables precise, incremental movement of the motor, useful for fine-tuning positions.
Deleting End Positions: The "Toets verwijderen «Endposities»" (Button deleting «End position settings») allows users to clear previously set upper or lower limits.
Defining End Positions: The "Toets instellen «Endposities»" (Button define «Position settings») is used to establish new upper or lower limits for the motor's travel. This often involves pressing and holding a button until a red indicator light illuminates, signifying the position has been set.
Exiting Step-by-Step Function: A specific procedure is outlined to exit the "step by step" mode, ensuring the device returns to normal operation.

Maintenance Features:

While the manual doesn't explicitly detail extensive maintenance procedures, the following can be inferred:

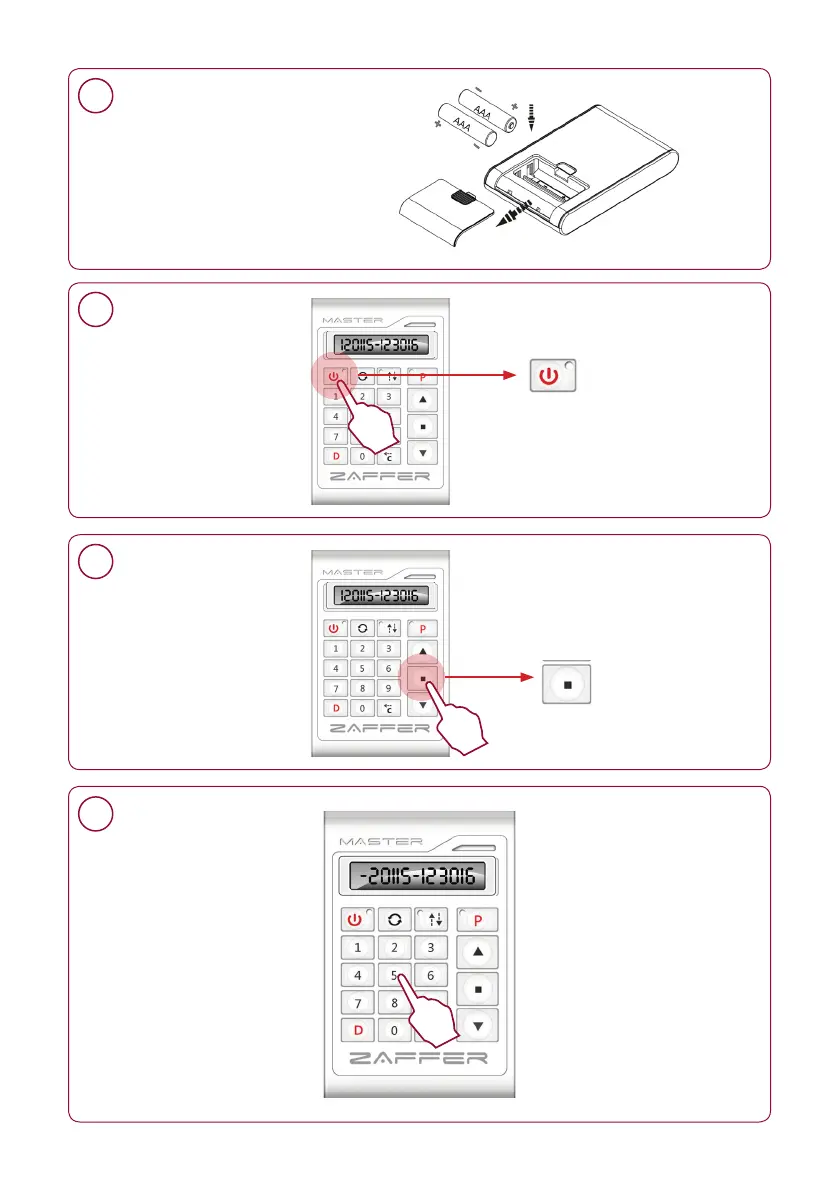

Battery Replacement: The device uses 2x AAA batteries, indicating that battery replacement will be a routine maintenance task. The manual illustrates how to open the battery compartment and insert new batteries.
Cleaning: Given the IP40 rating, the device should be kept clean and dry. Wiping with a dry or slightly damp cloth would likely be appropriate, avoiding harsh chemicals or excessive moisture.
Troubleshooting: The "click-clak" and "MOTOR Reactie / Réaction = OK" feedback serve as basic troubleshooting indicators. If these confirmations are not received, it suggests an issue with the command or motor communication.

The Zaffer MASTER appears to be a user-friendly and reliable control device for motorized systems, emphasizing clear programming steps and essential functionalities for precise operation and management. Its battery power and wireless communication make it a flexible solution for various installations.
