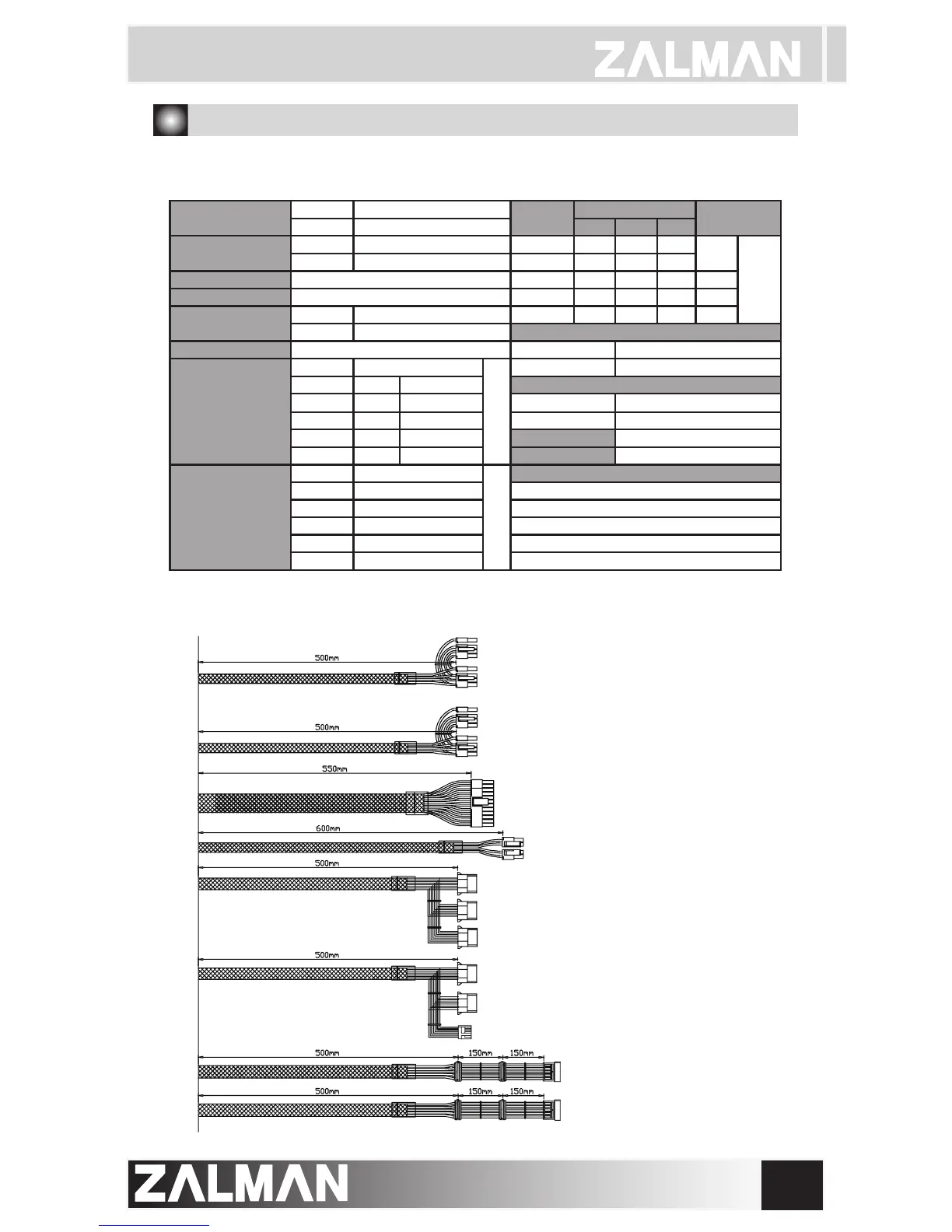

3. Speci󰘰cations
1)ZM700-LX Electrical & Physical Speci󰘰cations
2) ZM700-LX Cable Speci󰘰cations
AC Input Range
Voltage 200~240VAC
±10%
Vout
Output Load Rating
Combined
Power
Frequency 50Hz ~ 60㎐
±3 I
min
I
max
I
peak
AC Input Current
Voltage 200~240VAC +3.3V 0.1A 20A
140W
700W
Current 8A +5V 0.2A 20A
PFC Type Active PFC +12V 0.1A 58A 60A 696W
Power Factor Correction Max 99% -12V 0.0A 0.3A 3.6W
Inrush Current Limit
(@ Cold Start at 25℃)
115VAC - +5VSB 0.0A 2.5A 3.5A 12.5W
230VAC Max 150A Ambient Temperature
E󰘲ciency Max 87% @230VAC, Typical load Operation 0 ~ +40℃
DC Output Voltage
Regulation
Vout Regulation Range
At
Full
Load
Storage -20 ~ +70℃
+3.3VDC ±5% +3.14 ~ +3.47V Ambient Humidity
+5VDC ±5% +4.75 ~ +5.25V Operation 5% ~ 95% RH
+12VDC ±5% +11.4 ~ +12.6V Storage 5% ~ 95% RH
-12VDC ±10% -10.8 ~ -13.0V Dimensions 157(L)*150(W)*86(H)mm
+5VSB ±5% +4.75 ~ +5.25V Weight 2.2kg
DC Output Ripple
& Noise
Vout Standard Range
At
Full
Load
Protection Funtions
+3.3VDC 50mV Over-Voltage Protection (OVP)
+5VDC 50mV Under Voltage Protection (UVP)
+12VDC 120mV Short- Cicuit Protection (SCP)
-12VDC 120mV Over-Power Protection (OPP)
+5VSB 50mV
S-ATA Power Connector
S-ATA Power Connector
CPU Power Connector
PCI Express4 Power Connector
PCI Express3 Power Connector
PCI Express2 Power Connector
PCI Express1 Power Connector
Mainboard Power Connector
ODD/HDD Power Connector
ODD/HDD Power Connector
ODD/HDD Power Connector
ODD/HDD Power Connector
ODD/HDD Power Connector
FDD Power Connector
