18 980428-103 Rev. 1 Prelim.
Add Cable
Anchor Ties
Installation
1. Reverse the power supply removal and
access processes.
-- If replacing the power supply, the AC
voltage should be set prior to installing the
power supply, see procedure 980428-104.
-- The DC voltage setting should be verified
prior to attaching the power supply to the
printer, see procedure 980428-105.
Important - Re-attach the ground wire to
the power supply in the following order:
1) Star Washer 2) Ground wire and lug
(from toroid) 3) Star Washer 4) Nut.
Tighten the nut to 7.5 ±2 in. Lb. torque

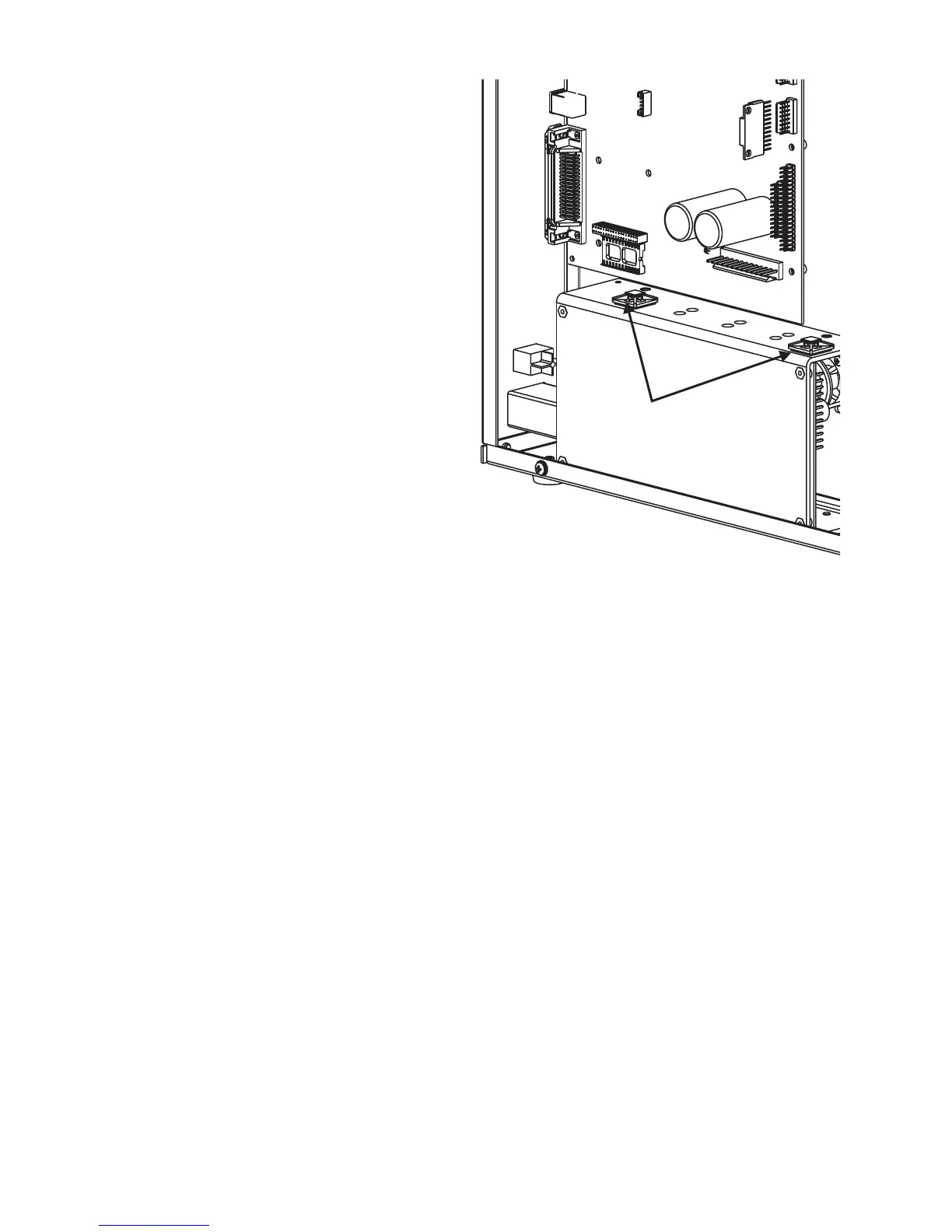

2. Add two (2) cable tie anchors to the front
and rear of the power supply (as shown).
3. Re-tie the main PCBA harness. Use the
"Securing the Harness" procedure,
980428-009.
To Next Page
