Quick Reference Guide 7

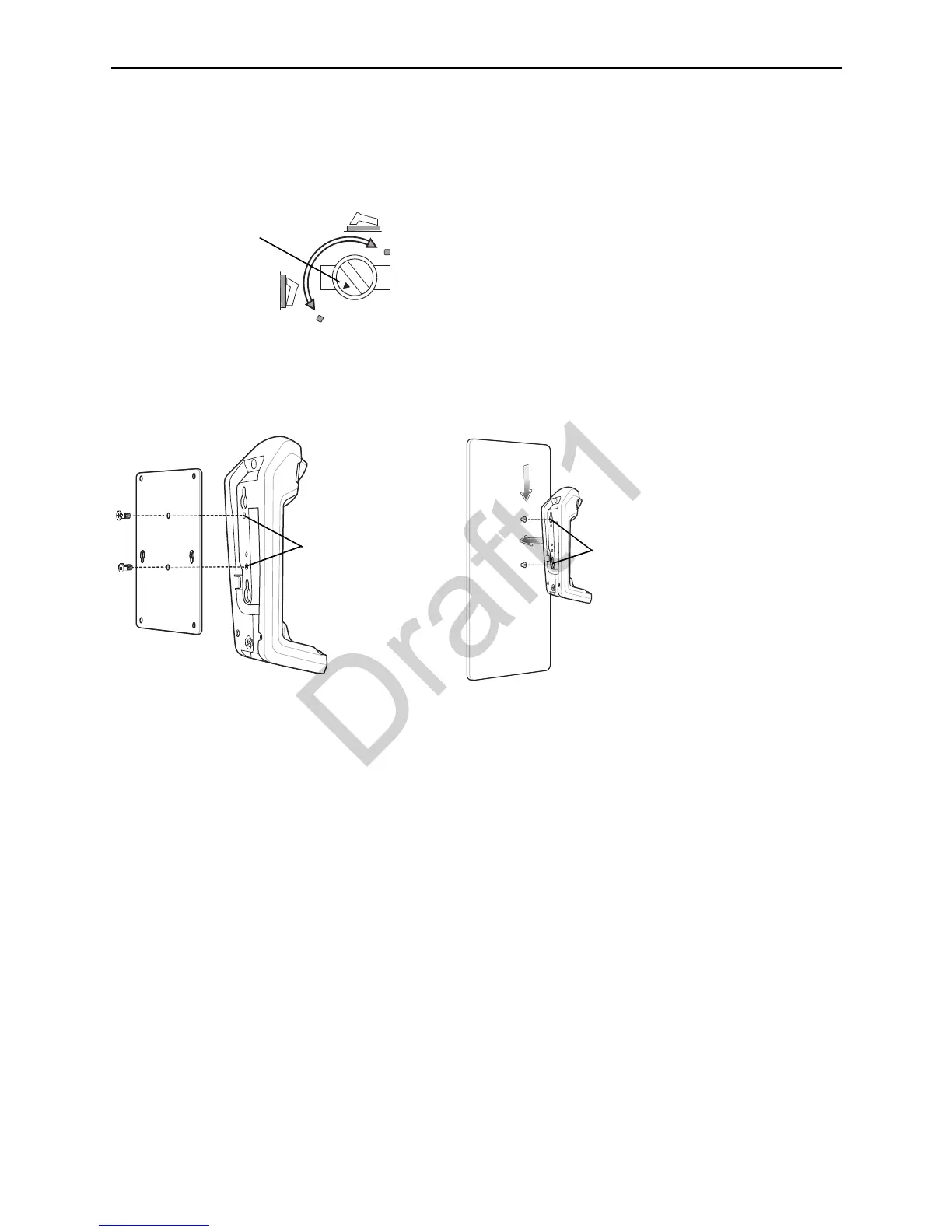

3. Use a screwdriver or coin to turn the desk/wall mount converter knob (triangle
indicator) to the position shown below. The scanner locking mechanism in the
cradle protracts to engage and grip the depression at the base of the digital
scanners handle.
4. Attach the interface and power cables (see
Cradle Connections on page 5).
5. Press the cables into the cable grooves.
6. Attach the cradle securely to the surface using the vertical mount threaded
brass screw holes or mounting holes.
7. Insert the digital scanner in the cradle.
