Zebra ZXP Series 7 User Manual

22 Zebra ZXP Series 7 Card Printer User’s Manual P1036101-002
2: Installation and Setup
Loading the Laminate
Step 7. Pull out an inch or two of laminate past the lip of the cassette.
Step 8. Close the cassette by firmly pressing the “clamshell” together. You will hear a click
and feel a detent when the halves of the cassette seat together.

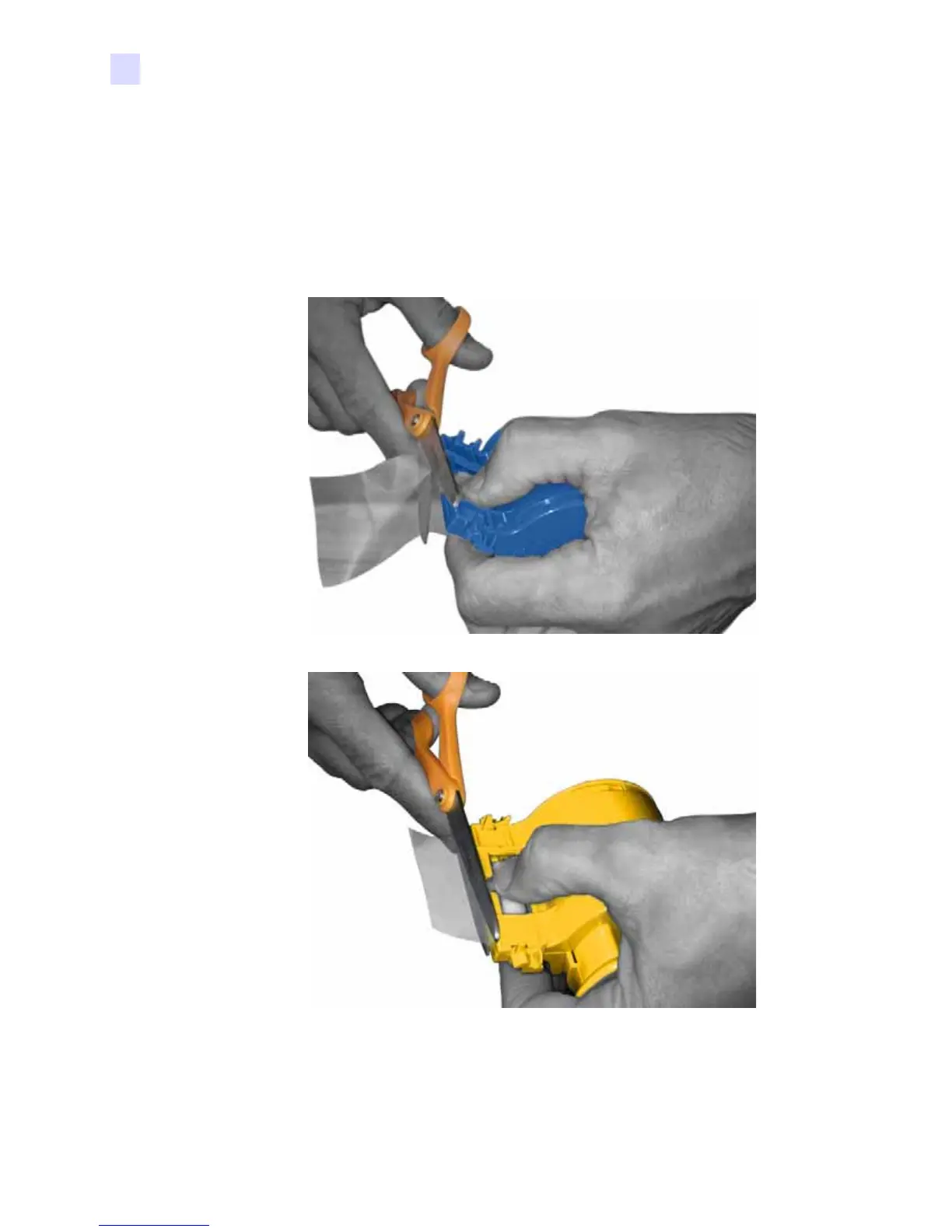

Step 9. Cut the laminate square (as close to perpendicular as possible) with scissors. Hold the
scissors in one hand. Hold the cassette with the other hand. Press the laminate firmly
against the white roller thereby keeping the laminate from moving while cutting.

Zebra ZXP Series 7 Specifications

General

Display	LCD
Lamination	Yes
Certification	FCC A, ENERGY STAR
Product color	Black
Total input capacity	200 sheets
Display number of characters	21
Card types	PVC, PVC Composite
Print technology	Dye-sublimation/Thermal transfer
Maximum resolution	300 DPI
Print speed (color)	300 card/h
Print speed (monochrome)	1375 card/h
Printing media thickness	250 - 1270 µm
Duplex print speed (color)	225 card/h
Wi-Fi	No
USB version	2.0
Ethernet interface type	Fast Ethernet
AC input voltage	90 - 264 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Harmonized System (HS) code	84433210

Weight and Dimensions

Dimensions (WxDxH)	964 x 277 x 306 mm
