Zebra ZXP Series 7 User Manual

2: Installation and Setup
Loading the Laminate
P1036101-002 Zebra ZXP Series 7 Card Printer User’s Manual 23

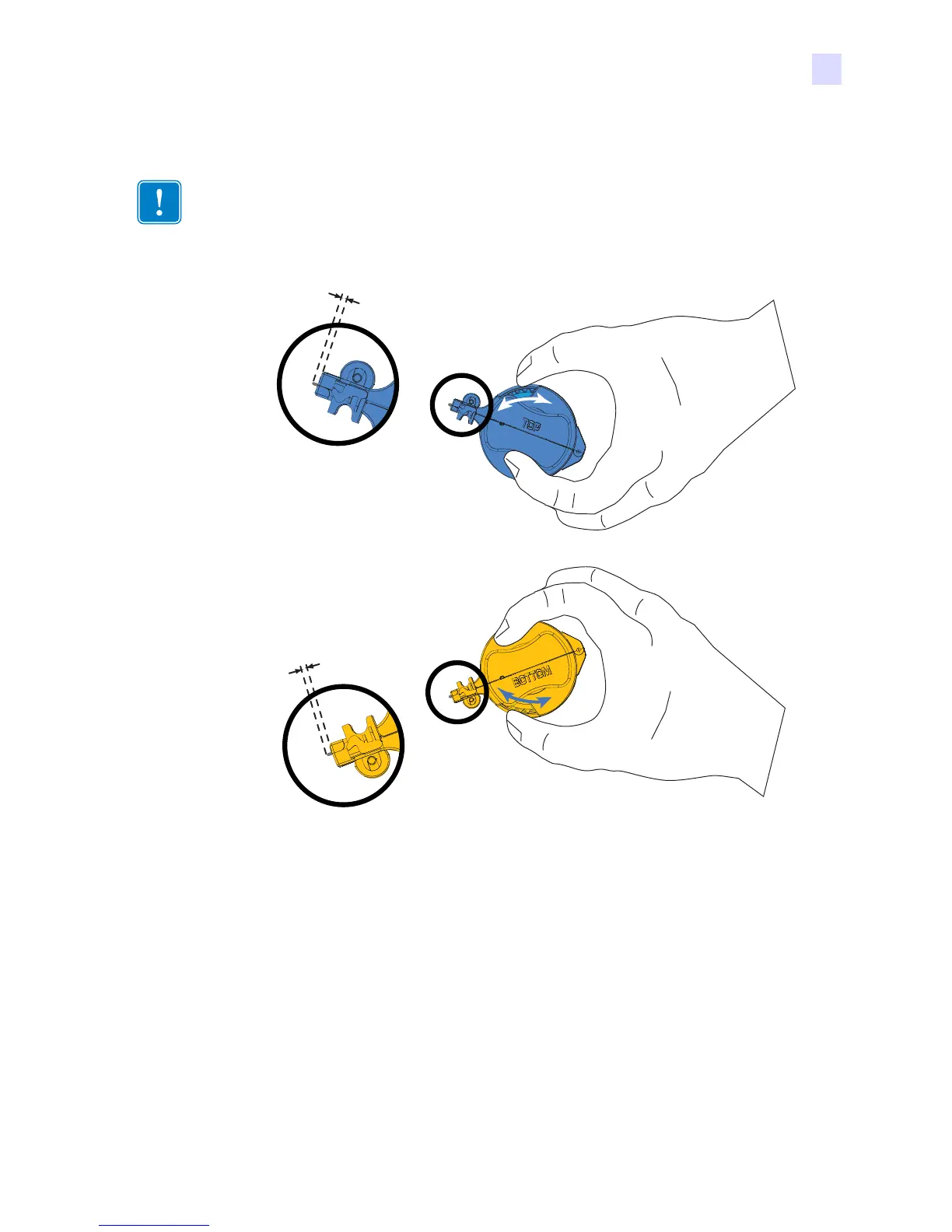

Step 10. Rotate the core to adjust the laminate overhang. Stop when the end of the laminate is
just beyond the lip of the cassette, as shown below.
Important • Check for laminate overhang any time the locking lever is pressed or the
cassette is removed.
0 - 0.5 mm
0 - 1/32"
0 - 0.5 mm
0 - 1/32"

Zebra ZXP Series 7 Specifications

General

Display	LCD
Lamination	Yes
Certification	FCC A, ENERGY STAR
Product color	Black
Total input capacity	200 sheets
Display number of characters	21
Card types	PVC, PVC Composite
Print technology	Dye-sublimation/Thermal transfer
Maximum resolution	300 DPI
Print speed (color)	300 card/h
Print speed (monochrome)	1375 card/h
Printing media thickness	250 - 1270 µm
Duplex print speed (color)	225 card/h
Wi-Fi	No
USB version	2.0
Ethernet interface type	Fast Ethernet
AC input voltage	90 - 264 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Harmonized System (HS) code	84433210

Weight and Dimensions

Dimensions (WxDxH)	964 x 277 x 306 mm
