Zektor HDS4 - Page 18

18

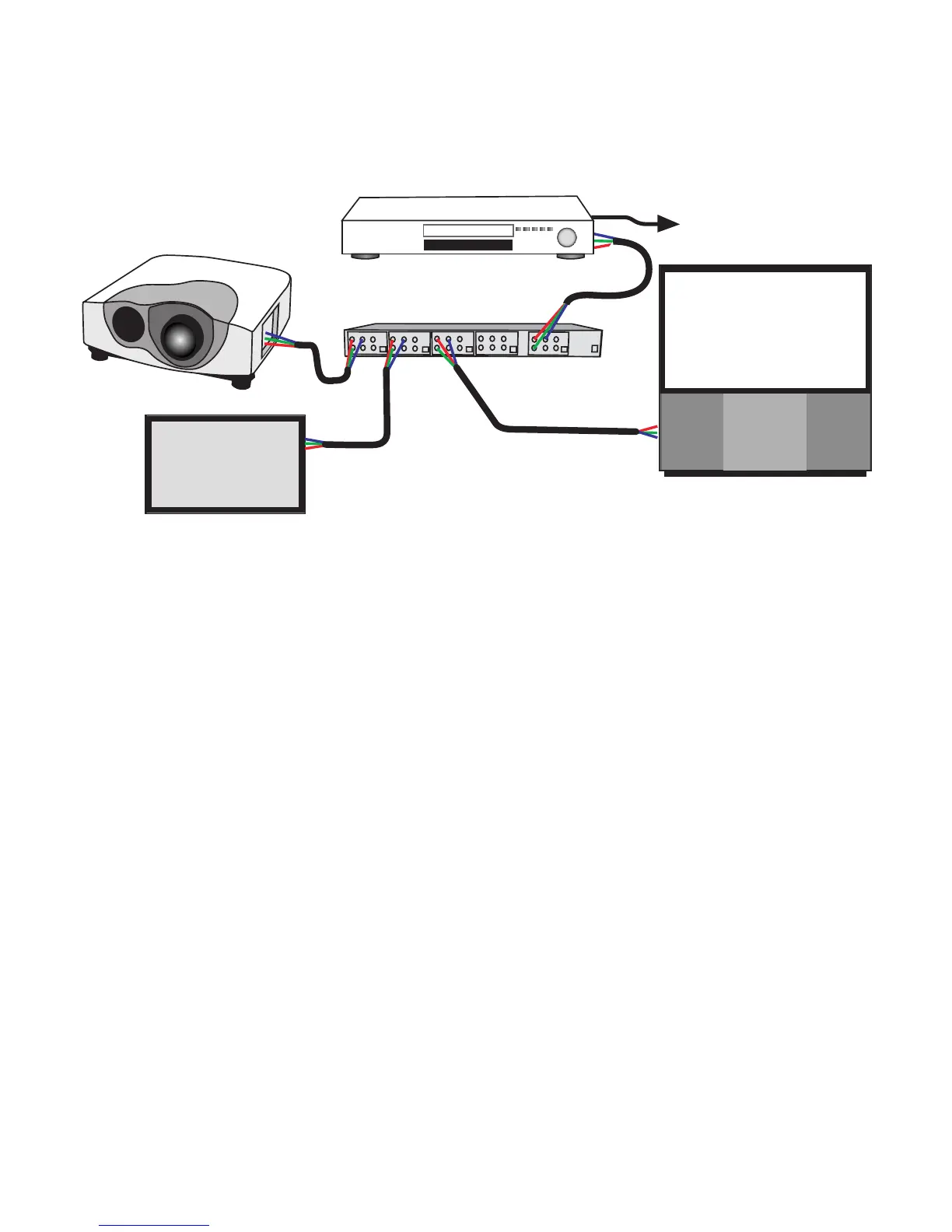

Example 3
In this output switching application, one DVD player can feed 1 of 4 displays (3 shown here). Since
there is only one source of audio, the audio does not need to be switched, and can be routed directly
to the AV receiver.
Pr/R Pb/B
L/H
Y/G
SPDIF R/V
Toslink
Pr/R Pb/B
L/H
Y/G
SPDIF R/V
Toslink
Pr/R Pb/B
L/H
Y/G
SPDIF R/V
Toslink
Pr/R Pb/B
L/H
Y/G
SPDIF R/V
Toslink
Pr/R Pb/B
L/H
Y/G
SPDIF R/V
Toslink
DC
input
OUT
4
32
1
To AV Receiver/Amp
with digital audio input
Progressive Scan DVD Player
with component video output and optical
digital audio output
FPTV
with component video and RGBHV (VGA) inputs
RPTV with Component Video Inputs
PLASMA TV
with Component Video Inputs
