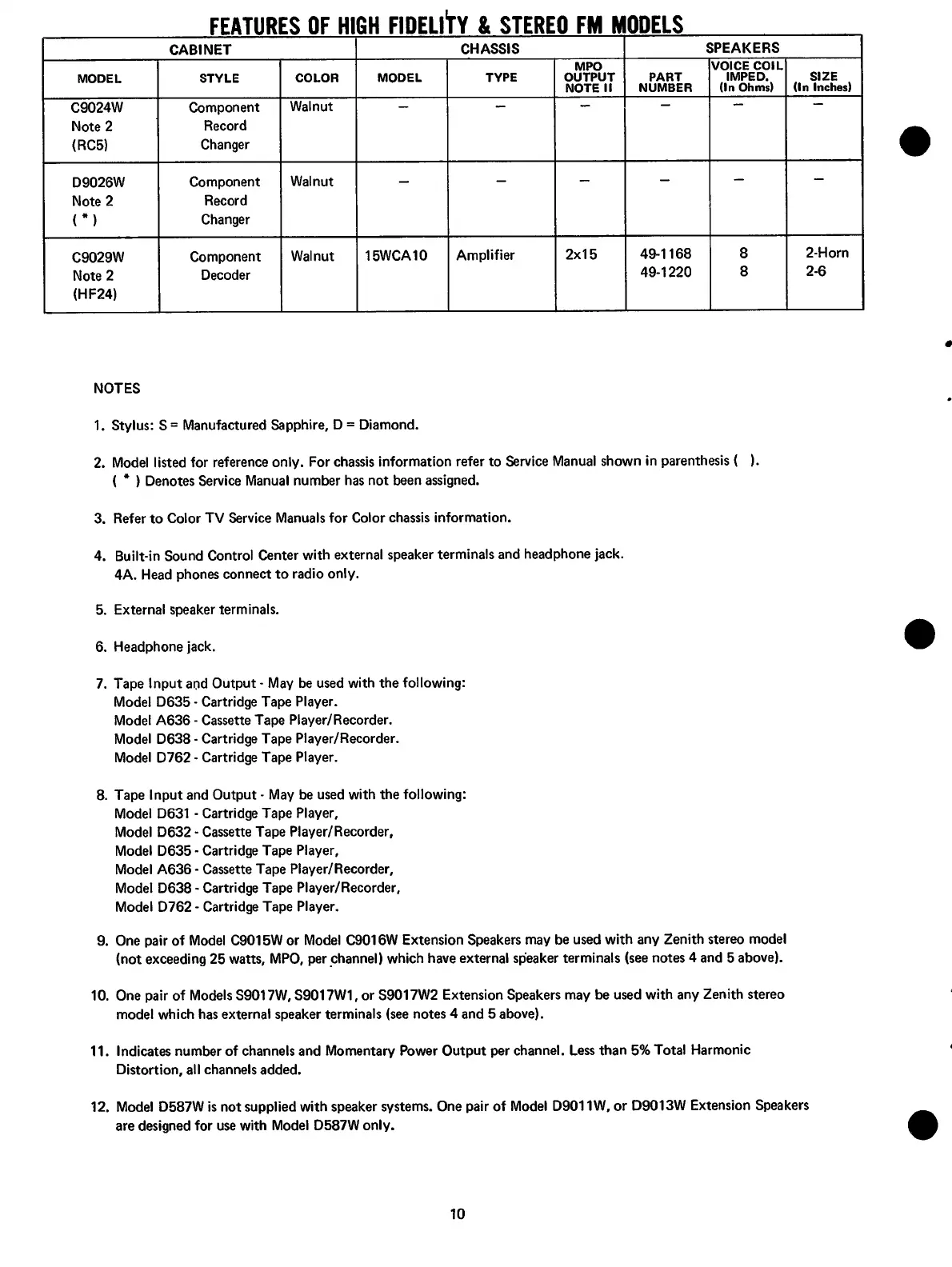

FEATURES

OF

HIGH

FIDELITY

&

STEREO

FM

MODELS

10

NOTES

1.

Stylus:

S=

Manufactured

Sapphire,

D

=

Diamond.

2.

Model

listed

for

reference

only.

For

chassis

information

refer

to

Service

Manual

shown

in

parenthesis

(

).

(

*

)

Denotes

Service

Manual

number

has

not

been

assigned.

3.

Refer

to

Color

TV

Service

Manuals

for

Color

chassis

information.

4.

Built-in

Sound

Control

Center

with

external

speaker

terminals

and

headphone

jack.

4A.

Head

phones

connect

to

radio

only.

5.

External

speaker

terminals.

6.

Headphone

jack.

7.

Tape

Input

and

Output

-

May

be

used

with

the

following:

Model

D635

-

Cartridge

Tape

Player.

Model

A636

-

Cassette

Tape

Player/Recorder.

Model

D638

-

Cartridge

Tape

Player/Recorder.

Model

D762

-

Cartridge

Tape

Player.

8.

Tape

Input

and

Output

-

May

be

used

with

the

following:

Model

D631

-

Cartridge

Tape

Player,

Model

D632

-

Cassette

Tape

Player/Recorder,

Model

D635

-

Cartridge

Tape

Player,

Model

A636

-

Cassette

Tape

Player/Recorder,

Model

D638

-

Cartridge

Tape

Player/Recorder,

Model

D762

-

Cartridge

Tape

Player.

9.

One

pair

of

Model

C9015W

or

Model

C9016W

Extension

Speakers

may

be

used

with

any

Zenith

stereo

model

(not

exceeding

25

watts,

MPO,

per

channel)

which

have

external

speaker

terminals

(see

notes

4

and

5

above).

10.

One

pair

of

Models

S9017W,

S9017W1,

or

S9017W2

Extension

Speakers

may

be

used

with

any

Zenith

stereo

model

which

has

external

speaker

terminals

(see

notes

4

and

5

above).

11.

Indicates

number

of

channels

and

Momentary

Power

Output

per

channel.

Less

than

5%

Total

Harmonic

Distortion,

all

channels

added.

12.

Model

D587W

is

not

supplied

with

speaker

systems.

One

pair

of

Model

D9011W,

or

D9013W

Extension

Speakers

are

designed

for

use

with

Model

D587W

only.

CABINET

CHASSIS

SPEAKERS

MODEL

STYLE

COLOR

MODEL

TYPE

MPO

OUTPUT

NOTE

II

PART

NUMBER

VOICE

COIL

IMPED.

(In

Ohms)

SIZE

(In

Inches)

C9024W

Note

2

(RC5)

Component

Record

Changer

Walnut

D9026W

Note

2

(*)

Component

Record

Changer

Walnut

—

—

—

—

■

C9029W

Note

2

(HF24)

Component

Decoder

Walnut

15WCA10

Amplifier

2x15

49-1168

49-1220

8

8

2-Horn

2-6
