Zenith D952X - Page 49

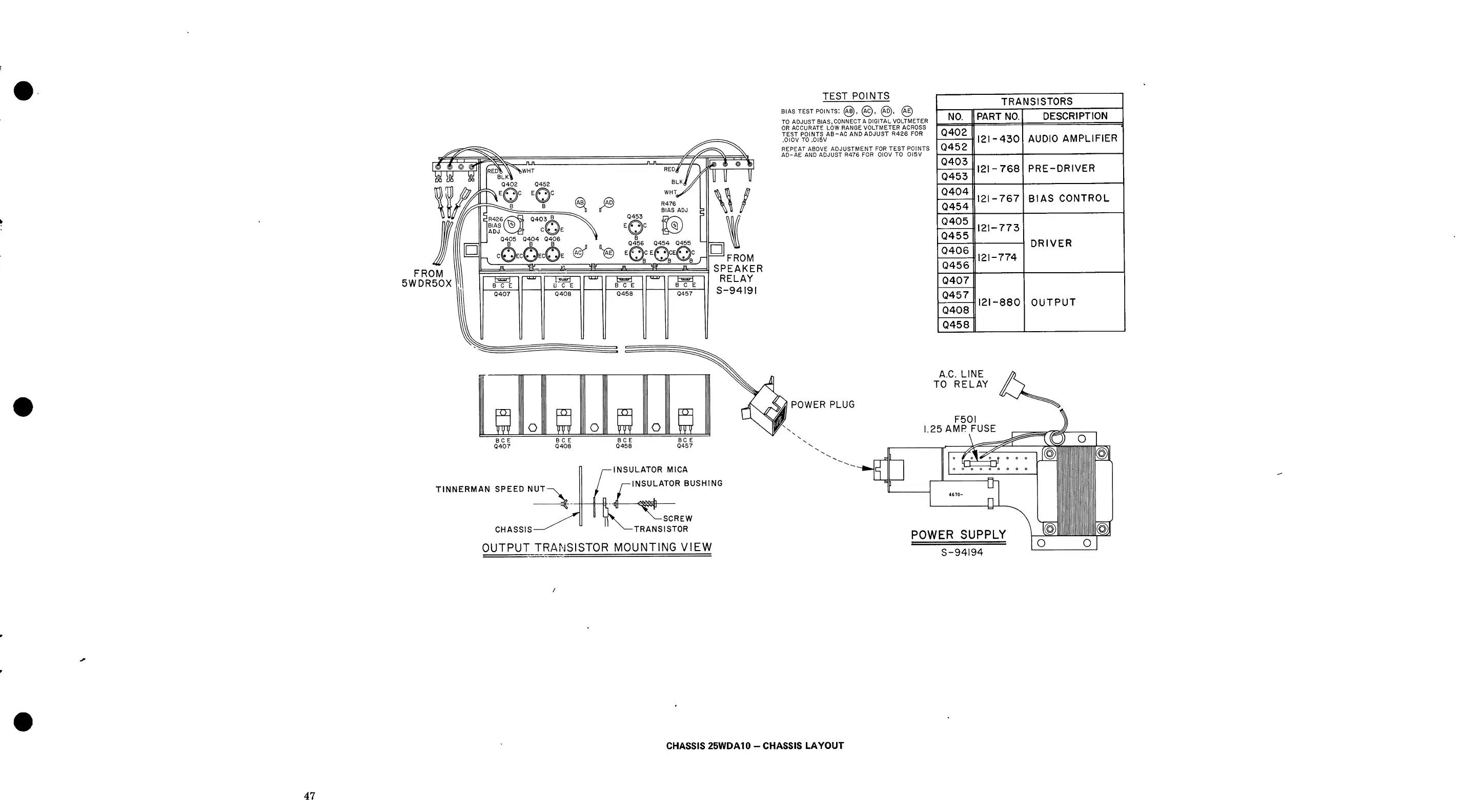

CHASSIS 25WDA10 - CHASSIS LAYOUT
TRANSISTORS
NO.
PART NO.
DESCRIPTION
Q402
Q452
I2I-430
AUDIO AMPLIFIER
Q403
Q453
I2I-768
PRE-DRIVER
Q404
Q454
I2I-767
BIAS CONTROL
Q405
Q455
I2I-773
DRIVER
Q406
Q456
I2I-774
Q407
Q457
Q408
Q458
I2I-880
OUTPUT
