Zenith D952X - Page 53

LEGEND CHASSIS 35WDR50
ITEM
NO.
PART
NUMBER
DESCRIPTION
ITEM
NO.
PART
NUMBER
DESCRIPTION
C1A FM ANT TRIMMER
R223
63-1904
680K OHM
C1B FM ANT TUNING R224
63-1898
470K OHM 20%
C1C FM DETECTOR TRIMMER
R225
63-1799
2.2K OHM
C1D FM DETECTOR TUNING R226
63-1852
39K OHM
C1E
FM OSC. TUNING
R227
63-1855
47K OHM
C1F
22-6752 AM ANT TRIMMER
R228
63-1852
39K OHM
CIG AM ANT TUNING R229
63-1873
120KOHM
C1H AM DETECTOR TRIMMER
R230
63-1859
56K OHM
C1J
AM DETECTOR TUNING
R231
63-1820
6.8K OHM
C1K AM OSC. TRIMMER
R232
63-1778
680 OHM
C1L
AM OSC. TUNING
R233
63-8708
5K BIAS ADJUST
C3 22-2729 .001 MFD DISC 25V
R234
63-1855
47K OHM
C5
22-3675
10 PF DISC±5% 500V
R301
63-1855
47K OHM
C6
22-3393 .01 MFD DISC 25V
R302
63-1817
5.6K OHM
C7
22-3541 3.3 PF GIMMICK±5% 500V
R303
63-1764
330 OHM
C8 22-3675 10 PF DISC ±5% 500V
R304
C9 22-6469
2.4 PF GIMMICK 5% 500V
R305
63-1855
47K OHM
C10
22-2729
.001 MFD DISC 25V
R306
63-1764
330 OHM
C11
22-6344 7 PF + .5 PF 500V
R307
63-1806
3.3K OHM
C12 22-3034 .05 MFD DISC 25V
R308
63-6495
100K MUTE CONTROL
C13 22-4855 1.7 TO 10 PF CERAMIC TRIMMER
R309
63-1785
IK OHM
C14
2203393
.01 MFD DISC 25V
R310 63-1782
820 OHM
C15
22-2729 .001 MFD DISC 25V
R311
C16 22-2729 .001 MFD DISC 25V
R312
63-1824
8.2K OHM
C17 22-3034
.05 MFD DISC 25V
R313
63-1775
560 OHM
C101
22-13 .003 MFD DISC±10%
R314
63-1778
680 OHM
C102 22-3034 .05 MFD DISC 25V
R315
63-1775
450 OHM
Cl 03 22-3034 .05 MFD DISC 25V
R316
63-5663
680 OHM 2W
Cl 04 22-3034 .05 MFD DISC 25V
R317
C105
22-5972 390 PF MICA ±5% 125V
R318
63-1781
820 OHM 5%
C107 22-3393 .01 MFD DISC
R319
63-1826
10K 5%
Cl 08 22-4819
2 PF ±.25 500V
R320
63-1798
2.2K 5%
C201
22-3310 2.7 PF GIMMICK 500V
R321
63-1826
10K 5%
C202 22-5482
680 PF DISC 500V
R322
C203 22-3652 1 MFD DISC 10V
R401 63-1887
270K OHM
C204
22-5481
560 PF DISC 500V
R402
63-1883
220K OHM
C205 22-3034 .05 MFD DISC 25V
R403
63-1890
330K OHM
C206 22-3381
39 PF DISC ±5% 500V
R404 63-1845
27K OHM
C207 22-3310 2.7 PF GIMMICK 500V
R405
63-1820
6.8K OHM
C208 22-3034 .05 MFD DISC 25V
R406
63-1848
33K OHM
C209 22-5482 680 PF DISC 500V
R407
63-1810
3900 OHM
C210
C211
22-5481
22-3770
560 PF DISC 500V
5.5 PF DISC ± .25 PF 500V
R408R
R408L
63-8967
100K DUAL LOUDNESS CONTROL
C212 22-3034 .05 MFD DISC 25V
R412
63-1845
27K OHM
C213
C214
22-2428
22-5482
1.8 PF GIMMICK 500V
680 PF DISC 500V
R413R
R413L
63-8965
250K DUAL BASS CONTROL
C215
22-3034 .05 MFD DISC 25V
R414 63-1831
12K OHM
C216
C217
22-3080
22-2729
.005 MFD DISC 25V
.001 MFD DISC 25V
R415R
R415L
638964
250K DUAL TREBLE CONTROL
C218 22-3177 390 PF DISC 500V
R416
631918
1.5 MEG
C219
22-3177 390 PF DISC 500V
R417 631810
3900 OHM
C220 22-3896 5 MFD ELECTROLYTIC 25V
R418
631736
68 OHM
C221 22-5486
10 MFD ELECTROLYTIC 6V
R419
631834
15K OHM
C222 22-14 .0047 MFD 500V
R420
631805
3.3K OHM 5%
C223
22-3393
.01 MFD DISC 25V
R421
631872
120KOHM5%
C224
22-14 .0047 MFD 500V
R422
631715
22 OHM
C225 22-14 .0047 MFD 500V
R423
631813
4700 OHM
C226 22-3381
39PFDISC±5%
R424 631813
4700 OHM
C227 22-3034 .05 MFD DISC 25V
R425
631790
1300 OHM 5%
C228 22-3080
.005 MFD DISC 25V
R426
639261
500 OHM BIAS ADJUST
C229 22-3652 1 MFD DISC 10V
R427
631776
620 OHM 5%
C230 22-3393
.01 MFD DISC 25V
R428
631757 220 OHM
C231
C301
22-3751
22-5780
20 PF ±.5% 500V
270 PF POLYSTYRENE + 5% 500V
R429
R430
631757
636424
220 OHM
1 OHM 5W
C302 22-5781 1000 PF POLYSTYRENE±5%600V
R432 638966
500K BALANCE CONTROL 8i SW.
C3O3 22-6246
3.3 MFD N.P. 15V
R433
631933
3.3 MEG OHM 20%
C304 22-6347 2000 PF± 5% POLYSTYRENE 50V
R434 631701 10 OHM
C305 22-2884
5 MFD ELECTROLYTIC 12V
R435
631729 1500 OHM
C307
22-5782 2200 PF POLYSTYRENE ±5% 500V
R451
631887
270K
C308 22-3393
.01 MFD DISC 25V
R452
631883
220K OHM
C309 22-2884 5 MFD ELECTROLYTIC 12V
R453
631890
330K
C310 22-5781 1000 PF POLYSTYRENE ± 5% 500V
R454
631845
27K OHM
C311 22-3415 .0068 MFD 25V
R455
631820
6.8K
C312 22-3034 .05 MFD DISC 25V
R456
631848
33K OHM
C362 22-3034 .05 MFD DISC 25V
R457
631810
3900 OHM
C401
22-3034
.05 MFD DISC 25V
R462
631845
27K OHM
C402 22-6343 .33 MFD ±20% 50V
R464 631831
12K
C404
22-3687
1 MFD ELECTROLYTIC 50V
R465
C405 22-3255 330 PF DISC 500V
R466
631918
1.5 MEG
C406 22-6343
270 PF 600V
R467
631810 3900 OHM
C407
22-5866
.047 MFD 100V
R468
631736
68 OHM
C4O8 22-5862 1 MFD 100V
R469
631834
15K OHM
C409
22-5482 680 PF DISC 500V
R470 631805
3.3K UHM 5%
C410
22-5971
3300 PF 20% 50V
R471 631872
120K OHM 5%
C411
22-5883 .033 MFD 100V
R472 631715
22 OHM
C412
22-6111 1000 PF 50V
R473 631813
4700 OHM
C413 22-5233 .015 ±20% 50V
R474 631813
4700 OHM
C414 22-3687 1 MFD ELECTROLYTIC 50V
R475 631790
1300 OHM 5%
C416 22-2884 5 MFD ELECTROLYTIC 12V
R476 639261
500 OHM BIAS ADJUST
C417
C418
C419
22-5482
22-3362
22-5986
680 PF DISC 500V
560 PF 500V
50 MFD ELECTROLYTIC 25V
R477
R478
R479
R480
631776
631757
631757
636424
620 OHM 5%
220 OHM
220 OHM
1 OHM
C420
22-5866 .047 MFD 100V
R484
631701
10 OHM
C421
22-5316
500 MFD ELECTROLYTIC 50V
R485 631729
1500 OHM
C422
22-5866 .047 MFD 100V
R501 t»1915
1.2 MEG OHM
C451 22-3034
.05 MFD DISC 25V
R502
634694
820 OHM
C452 22-6343 .33 MFD ±20% 50V
R503
631701
10 OHM
C454
22-3687 1 MFD ELECTROLYTIC 50V
L1
20-3076
FM ANTENNA COIL
C455 22-3255 330 PF DISC 500V
L2
20-3077
FM DETECTOR COIL
C456
22-6363 270 PF 500V
L3 20-1256
TRAP COIL 10.7 MHz
C457
22-5866
.047 MFD 50V
L4 20-3545
FM OSCILLATOR COIL
C458
22-5862 1 MFD 100V
L101 388463
AM ANTENNA COIL ASSEMBLY
C459
22-5482 680 PF DISC 500V
L102
149-311
FERRITE CORE SLEEVE
C460 22-5971 3300 PF 20% 50V
LI 03
INT102
AM OSCILLATOR TRANS. PRI.
C461 22-5883 .033 MFD 100V
L104 IN T102
AM OSCILLATOR TRANS. SEC.
C462
22-6111
1000 PF 50V
L105 143311
FERRITE CORE SLEEVE
C463 22-5233 ■015±20% 50V
L106 IN T101
BC-RF TRANS.
C464
22-3687 1 MFD ELECTROLYTIC 50V
L201 INT201
1ST IF TRANSFORMER 10.7 MHz PRI.
C466
22-2884
5 MFD ELECTROLYTIC 12V
L202
INT201
1ST IF TRANSFORMER 10.7 MHz SEC.
C467
22-5482 680 PF DISC 500V
L203 IN T202
1ST IF AM 455 KHz PRI.
C468
22-3362
560 PF 500V
L204 IN T202
1ST IF AM 455 KHz SEC.
C469 22-5986 50 MFD ELECTROLYTIC 25V
L205 INT203
2ND IF TRANSFORMER 10.7 MHz PRI.
C470 22-5866
.047 MFD 100V
L2O6
INT203
2ND IF TRANSFORMER 10.7 MHz SEC.
C471
22-5316 500 MFD ELECTROLYTIC 50V
L207 INT204
2ND AM 455 KHz
C472 22-5866 .047 MFD 100V
L208
INT2O5
3RD IF TRANSFORMER 10.7 MHz PRI.
C5O1 22-6005
.01 MFD DISC 150VAC
L209 INT205
3RD IF TRANSFORMER 10.7 MHz SEC.
C502 22-4617
.01 MFD DISC 500V
L210
IN T206 3RD IF AM 455 KHz PRI.
C503
22-4617 .01 MFD DISC 500V
L211 INT206
3RD IF AM 455 KHz SEC.
C504
22-6417
2000 MFD ELECTROLYTIC 75V
L212
INT207
RATIO DETECTOR TRANS. 10.7 MHz PRI.
C5O5
22-4573 1000 MFD ELECTROLYTIC 15V
L213 INT207
RATIO DETECTOR TRANS. 10.7 MHz TERTIARY
R1
63-4157
220 OHM 1/4W
L214 INT207
RATIO DETECTOR TRANS. 10.7 MHz SEC.
R2 63-4269
100K OHM 1/4W
L215
IN T204
2ND AM 455 KHz PRI.
R3
63-1772 470 OHM 20% L301
233080
67KHzTRAP COIL (PREFERRED)
R4 63-1796
1.8K OHM
379435
67 KHz TRAP COIL (ALTERNATE)
R5 63-4196
1.8K OHM 1/4W T101
932750
B.C. R.F. TRANSFORMER
R6
63-4231
12K 0HM1/4W
T102
932544 AM OSCILLATOR TRANSFORMER
R7
63-1898
470K OHM 20% T201
932753
FM 1ST IF TRANSFORMER 10.7 MHz
R8 63-4122
33 OHM 1/4W
T202
932751 AM 1ST IF AM 455 KHz
R9
63-1898
470K OHM 20%
T203
932754
FM 2ND IF TRANSFORMER 10.7 MHz
R10
63-4129
47 OHM 1/4W
T204
932752
AM 2ND IF AM 455 KHz
R11 63-4287
270K OHM 1/4W T2O5
932755
FM 3RD IF TRANSFORMER 10.7 MHz
R12 63-4255
47K OHM 1/4W T206
932543
AM 3RD IF AM 455 KHz
R101
63-1772
470 OHM 20%
T207
932756
FM RATIO DETECTOR 10.7 MHz
R102
63-1761
270 OHM
T301
932858
INPUT TRANSFORMER 19 KHz
3.9K OHM
T302
932856
DOUBLER TRANSFORMER 19 KHz
R104 63-1834
15K OHM
T303
T501
932857
932965
DETECTOR TRANSFORMER 38 KHz
POWER TRANSFORMER
R105
63-1806
3.3K OHM
T502
932920
FILTER CHOKE ON S-91607, POWER SUPPLY
R106 63-1799
2.2K OHM
F501
13379
1.25 AMP SLOW-BLOW FUSE
R201
63-1778
680 OHM F502
13396
1.0 AMP FUSE (PILOT LIGHT)
R202
63-1761
270 OHM
SW-1
831344
BAND SWITCH
R203
63-1772
470 OHM 20%
CR1
10347 AFC DIODE
R204 63-1806
3.3K OHM
CR201
10390
GERMANIUM DIODE MATCHED PAIR
R205
63-1827
10K OHM
CR202
10390
GERMANIUM DIODE
R206
63-1771
470 OHM
CR203
10323
GERMANIUM DIODE
R207
63-1785
1KOHM
CR204
10323 GERMANIUM DIODE
R208 63-1799
2.2K OHM
CR205
10323 GERMANIUM DIODE
R209 63-1772
470 OHM 20%
CR206
10323 GERMANIUM DIODE
R210 63-4185
1KOHM1/4W
CR301
10323 GERMANIUM DIODE
R211
63-1775
560 OHM -
CR302
10323 GERMANIUM DIODE
R212 63-1772
470 OHM 20%
CR501
212-76 SILICON RECTIFIER
R213
63-1778
680 OHM
CR502
212-76
SILICON RECTIFIER
R214
63-1778
680 OHM
CR503
10396
DIODE (ZENER)
R215 63-1813
4700 OHM
Z301
103107
INTEGNET
R216
63-1813 4700 OHM
Z351
103107 INTEGNET
R217 63-1799
2.2K OHM
DS1
103249 PILOT LIGHT NO. 1847
R218 63-1869
100K OHM
DS2
103249 PILOT LIGHT NO. 1847
R219
63-1841 22K OHM
DS3
103249
PILOT LIGHT NO. 1847
R220 63-1785
IK OHM
DS301
103507
STEREO INDICATOR LIGHT
R221
63-1834 15K OHM
M1
122-62
METER (TUNING) 4421G2
R222
63-1785
1KOHM
51

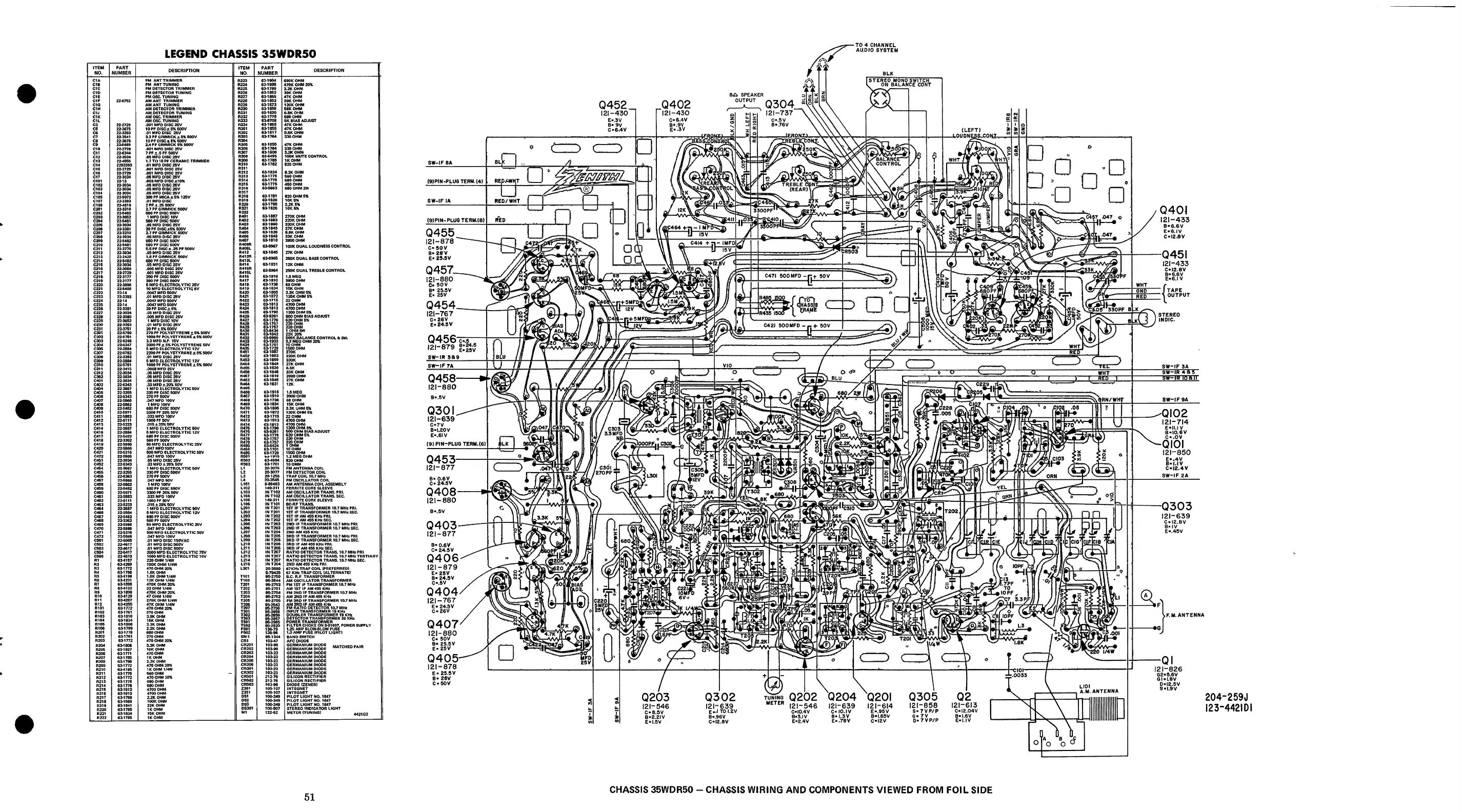

CHASSIS 35WDR50 - CHASSIS WIRING AND COMPONENTS VIEWED FROM FOIL SIDE
