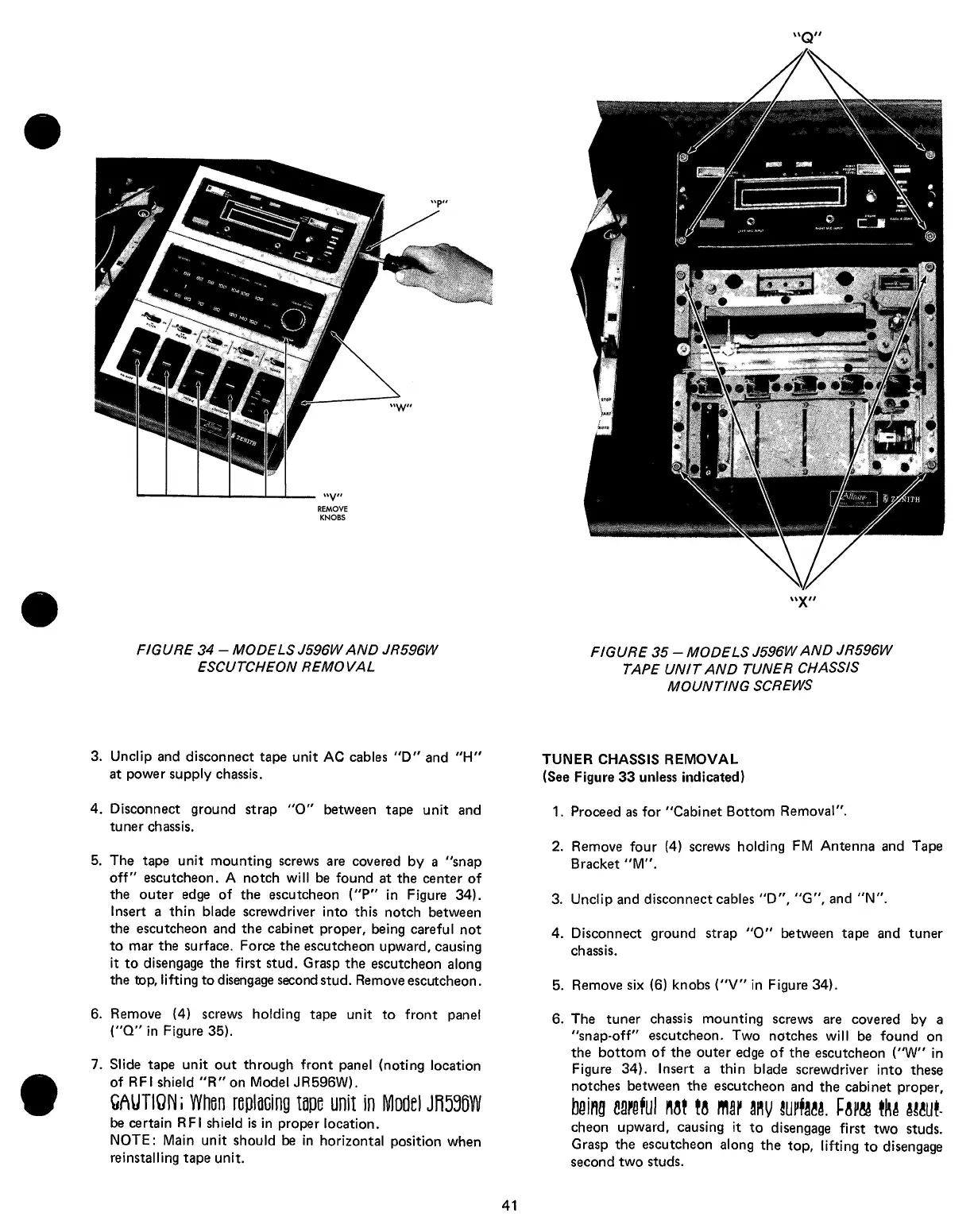

FIGURE 34 - MODELS J596W AND JR596W
ESCUTCHEON REMOVAL
FIGURE 35 - MODELS J596W AND JR596W
TAPE UNIT AND TUNER CHASSIS
MOUNTING SCREWS
3. Unclip and disconnect tape unit AC cables "D" and "H"
at power supply chassis.
4. Disconnect ground strap "0" between tape unit and
tuner chassis.
5. The tape unit mounting screws are covered by a "snap
off" escutcheon. A notch will be found at the center of
the outer edge of the escutcheon ("P" in Figure 34).
Insert a thin blade screwdriver into this notch between
the escutcheon and the cabinet proper, being careful not
to mar the surface. Force the escutcheon upward, causing
it to disengage the first stud. Grasp the escutcheon along
the top, lifting to disengage second stud. Remove escutcheon.
6. Remove (4) screws holding tape unit to front panel
("Q" in Figure 35).
7. Slide tape unit out through front panel (noting location
of RFI shield "R"on Model JR596W).
GAUTIQN i When replacing tape unit in Model JR59DW
be certain RFI shield is in proper location.
NOTE: Main unit should be in horizontal position when
reinstalling tape unit.
TUNER CHASSIS REMOVAL
(See Figure 33 unless indicated)
1. Proceed as for "Cabinet Bottom Removal".
2. Remove four (4) screws holding FM Antenna and Tape
Bracket "M".
3. Unclip and disconnect cables "D", "G", and "N".
4. Disconnect ground strap "O" between tape and tuner
chassis.
5. Remove six (6) knobs ("V" in Figure 34).
6. The tuner chassis mounting screws are covered by a
"snap-off" escutcheon. Two notches will be found on
the bottom of the outer edge of the escutcheon ("W" in
Figure 34). Insert a thin blade screwdriver into these
notches between the escutcheon and the cabinet proper,
being earaful nat ta mar any ofaaa. Fap« them
cheon upward, causing it to disengage first two studs.
Grasp the escutcheon along the top, lifting to disengage
second two studs.
