Zenith J584W - Page 57

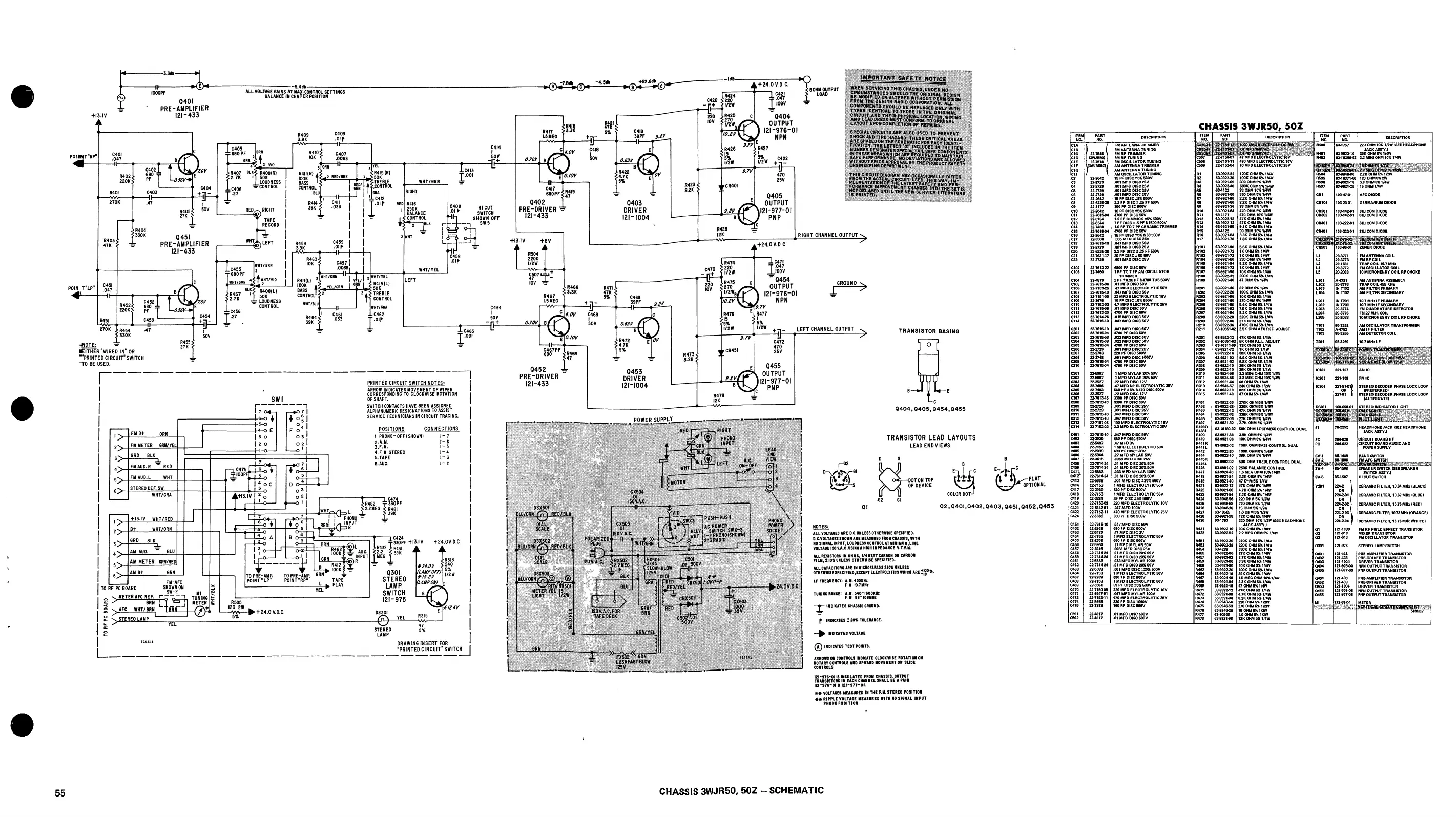

CHASSIS 3WJR50, 50Z - SCHEMATIC
55
CHASSIS
3WJR5O, 5OZ
ITEM
NO.
PART
NO.
DESCRIPTION
ITEM
NO.
PART
NO.
DESCRIPTION
ITEM
NO.
PART
NO.
DESCRIPTION
C1A
\ /
FM ANTENNA TRIMMER CX503*
22-7154-12 .
1000 MFD ELECTROLYTIC 35V ,
R480
63-1757
220 OHM 10% 1/2W (SEE HEADPHONE
C1B
j I
FM ANTENNA TUNING
CX50F»
22-7431-07
.01 MFD 150VAC
JACK ASS'Y.)
C1C
f 22-7545 \
FM RF TRIMMER
cxsas*. 22-7431-07
.01MFD150VAC % .
R481
636922-10 39K OHM 5% 1/4W
CID
\ (3WJR50) J
FM RF TUNING
C507
22-7150-07
47 MFD ELECTROLYTIC 10V
R482 631035662
2.2 MEG OHM 10% 1/4W
C1E
( 22-7578 \ FM OSCILLATOR TUNING
C508 22-7151-11
470 MFD ELECTROLYTIC 16V
63994668
C1F
\(3WJR50Z)/
AM ANTENNA TRIMMER
C509
22-7152-04
10 MFD ELECTROLYTIC 25V
l5OHM5%1/2ft' ‘ "
C1G
AM ANTENNA TUNING
M5Q2».
634052561
24MEGOHM?0% W:
C1J
AM OSCILLATOR TUNING R1
63-9922-22
120K OHM 5% 1/4W
R504
63694660
2.2K OHM 5% 1/2W
C2
22-2642
15 PF DISC ±5% 500V R2 63-9922-20
100K OHM 5% 1/4W
R505 631037160
120 OHM 5% 2W
C3
22-2729
.001 MFD DISC 25V R3 63-9921-60 330 OHM 5% 1/4W
R506
636921-18
5.6 OHM 5% 1/4W
C4 22-2729
.001 MFD DISC 25V
R4
63-9922-40
680K OHM 5% 1/4W
R5O7 63-9921-28 15 OHM 1/4W
C5 22-2729
.001 MFD DISC 25V R5
63-4122
33 OHM 10% 1/4W
C6
22-2729
.001 MFD DISC 25V R6
63-9921-60 330 0HM5%1/4W
CR1 103-4761 AFC DIODE
C7 22-2642
15 PF DISC ±5% 500V
R7
63-9921-80 2.2K OHM 5% 1/4W
C8 22-6225-26
2.2 PF DISC ±.25 PF 500V R8 63-9921-80 2.2K OHM 5% 1/4W
I CR101
103-2361
GERMANIUM DIODE
C9
22-3177
390 PF DISC 500V
R9 63-9921-36 33 OHM 5% 1/4W
C10
22-2642
15 PF DISC ±5% 500V R10
63-9921-64 470 OHM 5% 1/4W
| CR301
103-14261 SILICON DIODE
C11
22-7615-04 4700 PF DISC 50V
R11 63-4171 470 OHM 10% 1/4W
CR302 10314261
SILICON DIODE
C12 22-5164
1.2 PF GIMMICK ±5% 500V R12
63-9922-12 47K OHM 5% 1/4W
C13 22-6344
7 PF DISC +.5 PF N1500 500V
R13 63-9922-12 47K OHM 5% 1/4W
CR4O1 103-22261
SILICON DIODE
C14
22-7460
1.0 PF TO 7 PF CERAMIC TRIMMER R14
63-9921-95
9.1 K OHM 5% 1/4W
C15
22-7615-04
4700 PF DISC 50V
R15
63-4122 33 OHM 10% 1/4W
CR451
103-22261 SILICON DIODE
C16 22-2642
15 PF DISC ±5% N33 500V
R16 63-9921-84 3.3K OHM 5% 1/4W
C17
22-3080
.005 MFD DISC 25V
R17
63-9921-78 16K OHM 5% 1/4W
CRX501»
212^662 '
SILICON RECTIFIER
C18 22-7615-10
.047 MFD DISC 50V
CRX5024. 212-7862 SILICON RECTJEIER ........................
C19
22-2729
.001 MFD DISC 25V
R101 63-9921-90 5.6K OHM 5% 1/4W
CR503
1036661
ZENER DIODE
C2O 22-6225-26
2.2 PF DISC ±.25 PF 500V R102
63-9921-72
1KOHM5%1/4W
C21 22-7621-17
20 PF DISC ±5% 50V R103 63-9921-72
1K0HM5%1/4W
L1
20-3771
FM ANTENNA COIL
C22
22-2729
.001 MFD DISC 25V R104
63-9921-60 330 OHM 5% 1/4W
L2
206773
FM RF COIL
R105
63-9921-94
8.2K OHM 5% 1/4W
L3
20-1631 TRAP COIL 10.7 MHz
Cl 02 22-7613-22
6800 PF DISC 50V R106 63-9921-72
1KOHM5%1/4W
L4
20-3772
FM OSCILLATOR COIL
C103 22-7460
1 PF TO 7 PF AM OSCILLATOR R107 63-9921-96 10K OHM 5% 1/4W
L5 20-2033 10 MICROHENRY COIL RF CHOKE
TRIMMER R108
63-9922-32 330 K OHM 5% 1/4W
C104
22-4819
2 PF +0.25 PF N4700 TUB 500V R109 63-9921-40 47OHM5%1/4W
LI 01 A-4781
AM ANTENNA ASSEMBLY
C105
22-7615-06 .01 MFD DISC 50V
L102
20-3776
TRAP COIL 455 KHz
C106 22-7153-25
.47 MFD ELECTROLYTIC 50V
R201 63-9921-46
82 OHM 5% 1/4W
LI 03 IN T102
AM FILTER PRIMARY
C107 22-7615-10 .047 MFD DISC 50V
R202 63-9922-20 100K OHM 5% 1/4W
L104 IN T102 AM FILTER SECONDARY
C108 22-7151-05
22 MFD ELECTROLYTIC 16V R203
63-9921-96 10K OHM 5% 1/4W
C109 22-3675 10 PF DISC ±5% 500V
R204
63-9921-60 330 0HM5%1/4W
L201 INT201 10.7 MHz IF PRIMARY
Cl 10 22-7152-03
4.7 MFD ELECTROLYTIC25V
R205
63-992160
5.6K OHM5%1/4W
L202
INT201 10.7 MHz IF SECONDARY
cm
22-7615-06 .01 MFD DISC 50V
R206
63-9921-93 7J5K OHM 5% 1/4W
L203
20-3774 FM QUADRATURE DETECTOR
C112
22-7613-20
4700 PF DISC 50V R207 63-9921-94 8.2K OHM 5% 1/4W
L204
20-3775 FM27M.H.COIL
C113 22-7614-26
.015 MFD DISC 50V
R208 63-9922-28
220K OHM 5% 1/4W
L205
20-2033
10 MICROHENRY COIL RF CHOKE
C114 22-7615-10
.047 MFD DISC 50V R209 63-9922-06 27K OHM 5% 1/4W
R210 63-9922-36 470K OHM 5% 1/4W
T101
95-3268
AM OSCILLATOR TRANSFORMER
C201 22-7615-10
.047 MFD DISC 50V
R211
63-10651-02 2SK OHM AFC REF. ADJUST
T102 A-4782 AM IF FILTER
C202
22-7615-04 4700 PF DISC BOV
T103 95-3266
AM DETECTOR COIL
C203 22-7615-08
.022 MFD DISC 50V R301 63-9922-12 47K OHM 5% 1/4W
C204 22-7615-08 .022 MFD DISC 50V
R302 63-10651-03 5K OHM P.L.L. ADJUST
T201 95-3269
10.7 MHz I.F
C205
22-7615-04
4700 PF DISC 50V
R303
63-10311-99
13K OHM 5% 1/4W
TX501»
C206
22-2729
4)01 MFD DISC 25V R304
63-9921-72 1KOHM5%1/4W
POWER TRANSFORM^ "
C207 22-2703 220 PF DISC 500V
R305 63-9922-16
68K OHM 5% 1/4W
C208
22-3748
.001 MFD DISC 1000V
R306
63-9921-92
6.8K OHM 5% 1/4W
FX501*
136-117-12
3/8 SLD BLOW FUSE 125V ,
C209 22-7615-04
4700 PF DISC 50V
R307
63-9921-92 6.8K OHM 5% 1/4W
FX5p2»,
13311316
1.25AFASXBLOW125V
C210
22-7615-04
4700 PF DISC 50V
R308 63-9922-10
39K OHM 5% 1/4W
R309 63-9922-10 39K OHM 5% 1/4W
IC101 221-107 AMIC
C301 22-5907 1 MFD MYLAR 20% 50V
R310 63-9924-56
3.3 MEG OHM 10% 1/4W
C302 22-5907 1 MFD MYLAR 20% 50V R311
63-9924-56 3.3 MEG OHM 10% 1/4W
IC201 221-108 FMIC
C303
22-3527
22 MFD DISC 12V R312
63-9921-44
68 OHM 5% 1/4W
C304 22-7406
.47 MFD NP ELECTROLYTIC 35V
R313
63-9946-57 240 OHM 5% 1/2W
IC301 2216161) STEREO DECODER PHASE LOCK LOOP
C305
22-7493 560 PF ±5% N470 DISC 500V R314
63-9922-18 82K OHM 5% 1/4W
OR 1
(PREFERRED)
C306
22-3527
.22 MFD DISC 12V
R315 63-9921-40
47 OHM 5% 1/4W
221-91 ) STEREO DECODER PHASE LOCK LOOP
C307 22-7613-18 3300 PF DISC 50V
(ALTERNATE)
C308 22-7613-18
3300 PF DISC 50V R401
63-9922-30 270K OHM 5% 1/4W
C309 22-2729
.001 MFD DISC 25V
R402
63-9922-28' 220K OHM 5% 1/4W
DS301 10065861
STEREO INDICATOR LIGHT
C310 22-2729 .001 MFD DISC 25V
R403
63-9922-12
47K OHM5%1/4W
DSX501W
108661 ‘
D1MSCAU
C311
22-7615-10 .047 MFD DISC 50V
R404
63-9922-32 330 K OHM 5% 1/4W
DSX502"
108661
DIAL SCALE
C312 22-7615-10 .047 MFD DISC 50V
R405
63-9922-06 27K OHM 5% 1/4W
QSX5Q3*
100658
PH,OTLl0HT ^ _ f . J
C313
22-7151-08 100 MFD ELECTROLYTIC 16V
R407
63-9921-82
2.7K OHM 5% 1/4W
C314
22-7152-02
3.3 MFD ELECTROLYTIC 25V
R408R
R408L
63-10189-02
50K OHM LOUDNESS CONTROL DUAL
J1
78-2252 HEADPHONE JACK (SEE HEADPHONE
JACK ASS'Y.)
C401 22-7615-10
.047 MFD DISC 50V
R409
63-9921-86 3.9K OHM 5% 1/4W
C402
22-2939 680 PF DISC 500V
R410 63-9921-96
10K OHM5%1/4W
PC
204620
CIRCUIT BOARD RF
C403
C404
22-5487
22-7153
.47MFD3V
1 MFD ELECTROLYTIC 50V
R411R
R411L
636982-02
100K OHM BASS CONTROL DUAL
PC
204622
CIRCUIT BOARD AUDIO AND
POWER SUPPLY
C405
22-2939
680 PF DISC 500V
R412
63-9922-20 100K OHM 5% 1/4W
C406 22-5964
.27 MFD MYLAR 50V
R414
63-9922-10 39K OHM 5% 1/4W
SW-1 85-1489 BAND SWITCH
C407
C408
22-3415
22-7614-24
.0068 MFD DISC 25V
.01 MFD DISC 20% 50V
R415R
R415L
63698362
50K OHM TREBLE CONTROL DUAL
SW-2
SWX-3<
85-1506
A6982.".-
FM AFC SWITCH
R0WE&SW1TCH .....................
C409 22-7614-24
.01 MFD DISC 20% 50V
R416
63698162
250K BALANCE CONTROL
SW-4 85-1508
SPEAKER SWITCH (SEE SPEAKER
C411_
22-5883
.033 MFD MYLAR 100V
R417 63692448
15 MEG OHM10%1/4W
SWITCH ASS'Y.)
C41?
22-7614-24 .01 MFD DISC 20% 50V
R418 63992164 3.3K OHM 5% 1/4W
SW6
85-1507
HI CUT SWITCH
C413
22-5688 .001 MFD DISC ±20% 500V
R419
63-992140
47 OHM 5% 1/4W
C414
22-7153 1 MFD ELECTROLYTIC 50V
R421 639922-12 47K OHM 5% 1/4W
Y201
224-2 |
CERAMIC FILTER, 10.64 MHz (BLACK)
C417
22-2939
680 PF DISC 500V
R422
63992168 4.7K OHM 5% 1/4W
OR
C418 22-7153
1 MFD ELECTROLYTIC 50V
R423 639921-94
8.2K 0HM5%1/4W
224-261 /
CERAMIC FILTER, 10.67 MHz (BLUE)
C419
22-3381
39 PF DISC ±5% 500V
R424
63-994666 220 OHM 5% 1/2W
OR
C420
22-7150-09
220 MFD ELECTROLYTIC 10V
R425 63-994668 270 OHM 5% 1/2W
224-262 )
CERAMIC FILTER, 10.70 MHz (RED)
C421
22-6447-01
.047 MFD 100V
R426
636946-28
15OHM5%1/2W
OR
C422
22-7152-11
470 MFD ELECTROLYTIC 25V
R427
63-10565
1.00HM5%1/2W
224-263 \
CERAMIC FILTER, 1073 MHz (ORANGE)
C424
22-6665 330 PF DISC 500V
R428
636921-98 12K OHM 5% 1/4W
OR 1
R430
63-1757
220 OHM 10% 1/2W (SEE HEADPHONE
224-264 1
CERAMIC FILTER, 10.76 MHz (WHITE)
C451 22-7615-10
.047 MFD DISC 50V
JACK ASS'Y.)
C452
22-2939
680 PF DISC 500V
R431 636922-10
39K OHM 5% 1/4W
Q1
121-1030
FM RF FIELD EFFECT TRANSISTOR
C453 22-5487
.47 MFD DISC 3V
R432
63-992262 22 MEG OHM 5% 1/4W
02
121613
MIXER TRANSISTOR
C454
22-7153
1 MFD ELECTROLYTIC 50V
03 121613 FM OSCILLATOR TRANSISTOR
C455
22-2939
680 PF DISC 500V
R451
63992260 270K OHM 5% 1/4W
C456 22-5964
.27 MFD MYLAR 50V
R452
63-9922-28 220K OHM 5% 1/4W
Q301
121-975
STEREO LAMP SWITCH
C457 22-3415 .0068 MFD DISC 25V
R454
634289 330 K OHM 5% 1/4W
C458
22-7614-24
.01 MFD DISC 20% 50V
R455
63-992266
27K OHM 5% 1/4W
0401
121-433
PRE-AMPLIFIER TRANSISTOR
C459
22-7614-24
.01 MFD DISC 20% 50V
R457
63692162 2.7K OHM 5% 1/4W
0402
121-433
PRE-DRIVER TRANSISTOR
C461
22-5883
.033 MFD MYLAR 100V
R459
63-992166 3.9K OHM 5% 1/4W
0403
121-1004
DRIVER TRANSISTOR
C462
22-7614-24 .01 MFD DISC 20% 50V
R460
636921-96 10K OHM 5% 1/4W
0404
121-97661
NPN OUTPUT TRANSISTOR
C463 22-5688
.001 MFD DISC ±20% 500V
R462
63-9922-20
100K OHM 5% 1/4W
0405
12167761
PNP OUTPUT TRANSISTOR
C464 22-7153
1 MFD ELECTROLYTIC 50V
R464
636922-10
39K OHM 5% 1/4W
C467 22-2939
680 PF DISC 500V
R467 63992448
15 MEG OHM 10%1/4W
0451
121-433
PRE-AMPLIFIER TRANSISTOR
C468 22-7153
1 MFD ELECTROLYTIC 50V
R468 63692164
3.3K OHM 5% 1/4W
0452
121-433
PRE-DRIVER TRANSISTOR
C469 22-3381
39 PF DISC ±5% 500V
R469 63692140
47 OHM 5% 1/4W
0453
121-1004
DRIVER TRANSISTOR
C470 22-7150-09
220 MFD ELECTROLYTIC 10V
R471 63-9922-12
47K OHM 5% 1/4W
0454
121-97661
NPN OUTPUT TRANSISTOR
C471 22-6447-01
.047 MFD MYLAR 100V
R472 63-992168
4.7K OHM 5% 1/4W
0455
121-97761
PNP OUTPUT TRANSISTOR
C472 22-7152-11
470 MFD ELECTROLYTIC 25V
R473 639921-94
8.2K OHM 5% 1/4W
C474
22-5665
330 PF DISC 1000V
R474 63-994666
220 OHM 5% 1/2W
Ml
1226864
METER
C475
22-3383
100 PF DISC 500V
R475
R476
63-9946-58
63-9946-28
270OHM5%1/2W
15OHM5%1/2W
•CRITICAL CIRCUIT COMPONENT '
5195B2
C501
22-4617
.01 MFD DISC 500V
R477
6310565 1.0 0HM5%1/2W
C502
22-4617
.01 MFD DISC 500V
R478
636921-98 12K OHM 5% 1/4W
