57

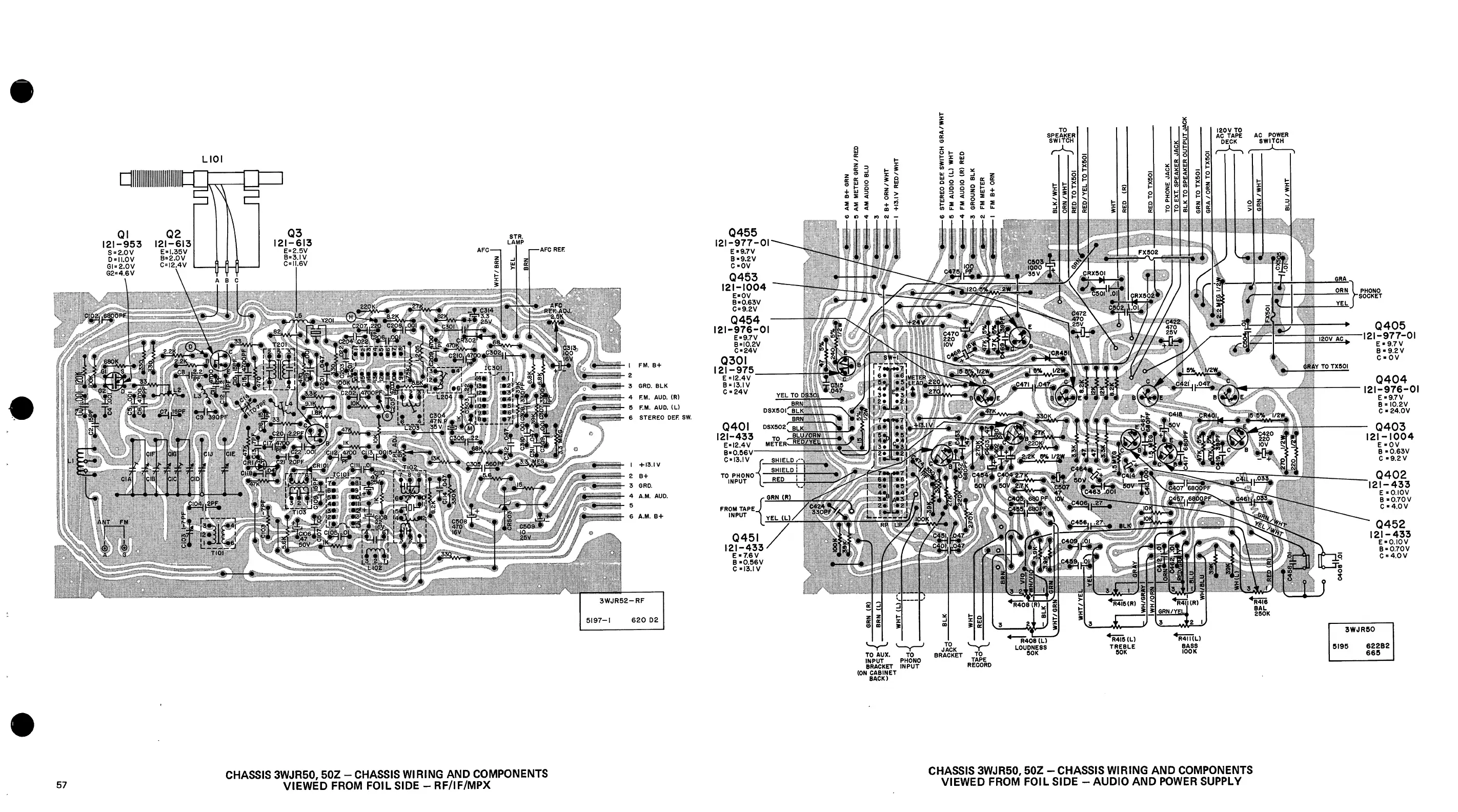

CHASSIS

3WJR50,50Z

-

CHASSIS

WIRING

AND

COMPONENTS

VIEWED

FROM

FOIL

SIDE

-

RF/IF/MPX

CHASSIS

3WJR50,50Z

-

CHASSIS

WIRING

AND

COMPONENTS

VIEWED

FROM

FOIL

SIDE

-

AUDIO

AND

POWER

SUPPLY
