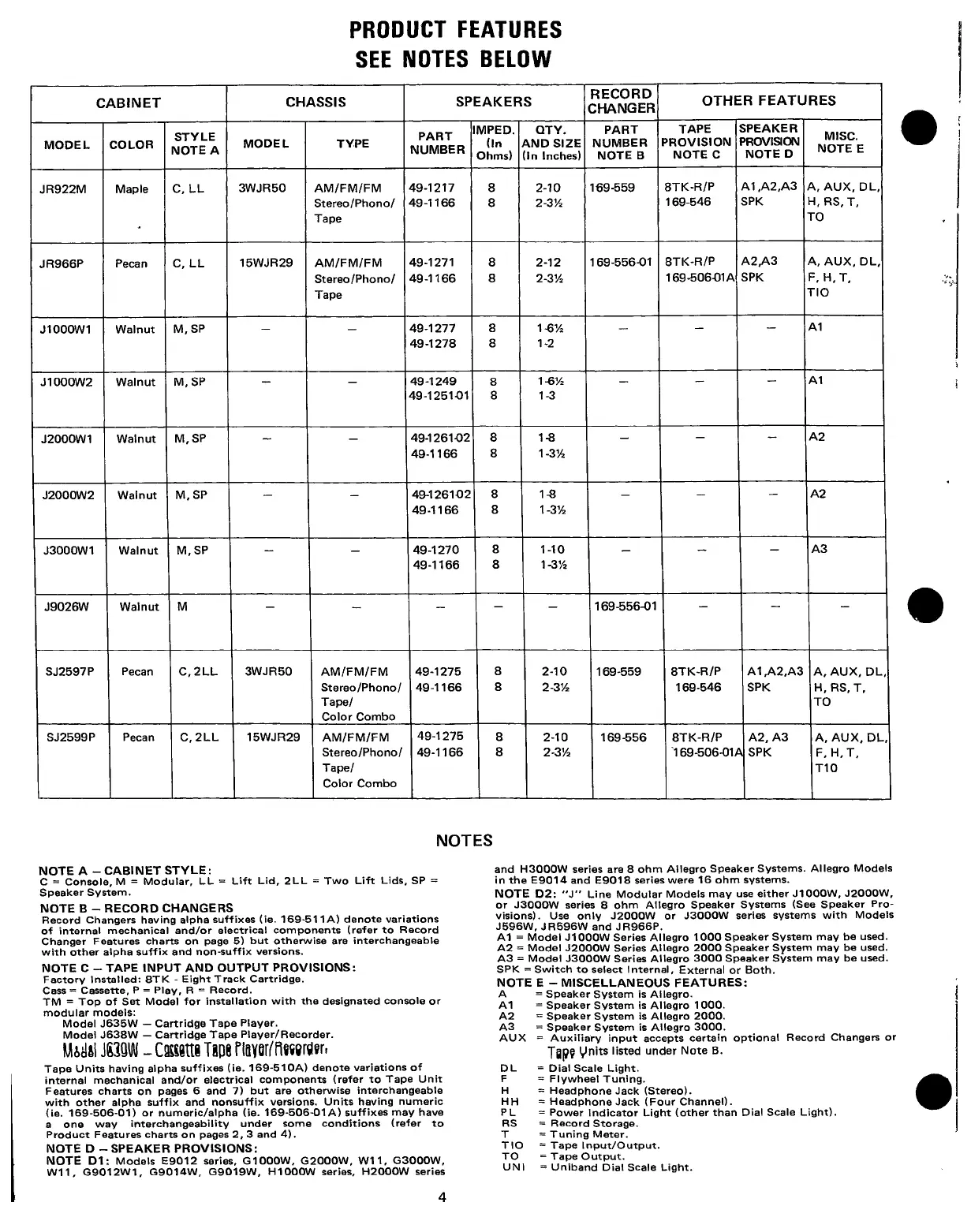

PRODUCT FEATURES
SEE NOTES BELOW
NOTES
NOTE A - CABINET STYLE:
C = Console, M = Modular, LL = Lift Lid, 2LL = Two Lift Lids, SP =
Speaker System.
NOTE B - RECORD CHANGERS
Record Changers having alpha suffixes (ie. 169-511 A) denote variations
of internal mechanical and/or electrical components (refer to Record
Changer Features charts on page 5) but otherwise are interchangeable
with other alpha suffix and non-suffix versions.
NOTE C - TAPE INPUT AND OUTPUT PROVISIONS:
Factory Installed: 8TK - Eight Track Cartridge.
Cass = Cassette, P = Play, R = Record.
TM = Top of Set Model for installation with the designated console or
modular models:
Model J635W — Cartridge Tape Player.
Model J638W — Cartridge Tape Player/Recorder.
M&d&l OW - CKWtti Tape riayari'fiswwr.
Tape Units having alpha suffixes (ie. 169-510A) denote variations of
internal mechanical and/or electrical components (refer to Tape Unit
Features charts on pages 6 and 7) but are otherwise interchangeable
with other alpha suffix and nonsuffix versions. Units having numeric
(ie. 169-506-01) or numeric/alpha (ie. 169-506-01A) suffixes may have
a one way interchangeability under some conditions (refer to
Product Features charts on pages 2, 3 and 4).
NOTE D — SPEAKER PROVISIONS:
NOTE D1: Models E9012 series, G1000W, G2000W, W11, G3000W,
W11, G9012W1, G9014W, G9019W, H1000W series, H2000W series
and H3000W series are 8 ohm Allegro Speaker Systems. Allegro Models
in the E9014 and E9018 series were 16 ohm systems.
NOTE D2: "J" Line Modular Models may use either J1000W, J2000W,
or J3000W series 8 ohm Allegro Speaker Systems (See Speaker Pro 
visions). Use only J2000W or J3000W series systems with Models
J596W, JR596W and JR966P.
A1 = Model J1000W Series Allegro 1000 Speaker System may be used.
A2 = Model J2000W Series Allegro 2000 Speaker System may be used.
A3 = Model J3000W Series Allegro 3000 Speaker System may be used.
SPK = Switch to select Internal, External or Both.
NOTE E - MISCELLANEOUS FEATURES:
A = Speaker System is Allegro.
A1 = Speaker System is Allegro 1000.
A2 = Speaker System is Allegro 2000.
A3 = Speaker System is Allegro 3000.
AUX = Auxiliary input accepts certain optional Record Changers or
Tap? Vnits listed under Note B.
DL = Dial Scale Light.
F = Flywheel Tuning.
H = Headphone Jack (Stereo).
HH = HeadphoneJack (Four Channel).
PL = Power Indicator Light (other than Dial Scale Light).
RS - Record Storage.
T = Tuning Meter.
TIO = Tape Input/Output.
TO = Tape Output.
UNI = Uniband Dial Scale Light.
4
CABINET
CHASSIS
SPEAKERS (
RECORD
CHANGER
OTHER FEATURES
MODEL COLOR
STYLE
NOTE A
MODEL
TYPE
PART 1
NUMBER
MPED.
(In
Ohms)
QTY.
AND SIZE
(In Inches)
PART
NUMBER
NOTE B
TAPE
PROVISION I
NOTE C
SPEAKER
PROVISION
NOTE D
MISC.
NOTE E
JR922M
Maple
C, LL
3WJR50
AM/FM/FM
Stereo/Phono/
Tape
49-1217
49-1166
8
8
2-10
2-3%
169-559
8TK-R/P
169-546
A1,A2,A3
SPK
A, AUX, DL,
H, RS, T,
TO
JR966P
Pecan
C, LL
15WJR29 AM/FM/FM
Stereo/Phono/
Tape
49-1271
49-1166
8
8
2-12
2-3%
169-55601
8TK-R/P
169-506-01A
A2.A3
SPK
A, AUX, DL,
F, H,T,
TIO
J1000W1
Walnut
M, SP
—
49-1277
49-1278
8
8
1-6%
1-2
■
A1
J1000W2
Walnut
M, SP
49-1249
49-125101
8
8
1-6%
1-3
A1
J2000W1
Walnut M,SP
■
■
49-1261-02
49-1166
8
8
1-8
1-3%
A2
J2000W2
Walnut
M,SP
—
49-126102
49-1166
8
8
1-8
1 -3%
-
A2
J3000W1
Walnut
M,SP
■
49-1270
49-1166
8
8
1-10
1-3%
■
A3
J9026W Walnut
M
■ -
169-556-01
SJ2597P Pecan
C, 2LL
3WJR50
AM/FM/FM
Stereo/Phono/
Tape/
Color Combo
49-1275
49-1166
8
8
2-10
2-3%
169-559
8TK-R/P
169-546
A1 ,A2,A3
SPK
A, AUX, DL,
H, RS, T,
TO
SJ2599P
Pecan
C, 2LL
15WJR29 AM/FM/FM
Stereo/Phono/
Tape/
Color Combo
49-1275
49-1166
8
8
2-10
2-3%
169-556
8TK-R/P
169-506-01/
A2, A3
< SPK
A, AUX, DL,
F, H,T,
T10
