7
NOTES
NOTE A — RECORD
ALC = Automatic Level Control
Full = Full Feature with Record Level Controls and Meters.
NOTE B - MOTOR
E = Electronic Governor
M = Mechanical Governor
AC Motors require conversion kit if used on 50Hz.
NOTE C - AUTO STOP
Full= Stops after each program, fourth program or runs
continuously (in both Play and Record modes). Selected by
three position slide control.
Four = Stops after fourth program in Record only.
Tape = Tape tension sensor at end of tape in Play and Record
only.
Tape All = Stops at end of tape in Play/Record/Fast Forward/
Rewind modes.
* NOTED - USED IN
C = Console
M = Modular
MA = Modular Accessory
W = Wedge Modular
NOTE E - MISC. FEATURES
A1 = Parallel Blade AC Connector.
A2 = Molex Type AC Connector.
A3 = Hard Wire Connector.
B = Bias Frequency Switch.
C1 = RCA Type Audio Connector.
C2 = Spade Lug Audio Connector.
C3 = Hard Wire Connector.
E = Eject
FF = Fast Forward Button (Push-Push Type).
I = Interlocked Record Button.
M = Record Level Meter (Illuminated).
P1 = Pause Button (Push In, Slide Left to Lock).
P2 = Pause Button (Push-Push).
Q = Automatic 2/4 Channel Switching, with mode indicator.
R = Ready Light or Auto Stop Light.
RL = Record Light.
T = Tape Run Light.
TB = Tape Bias Switch (C r O2 /Normal)
TC = Tape Counter.
TE = Tape Equalization Switch (C r O2 ' / Normal)

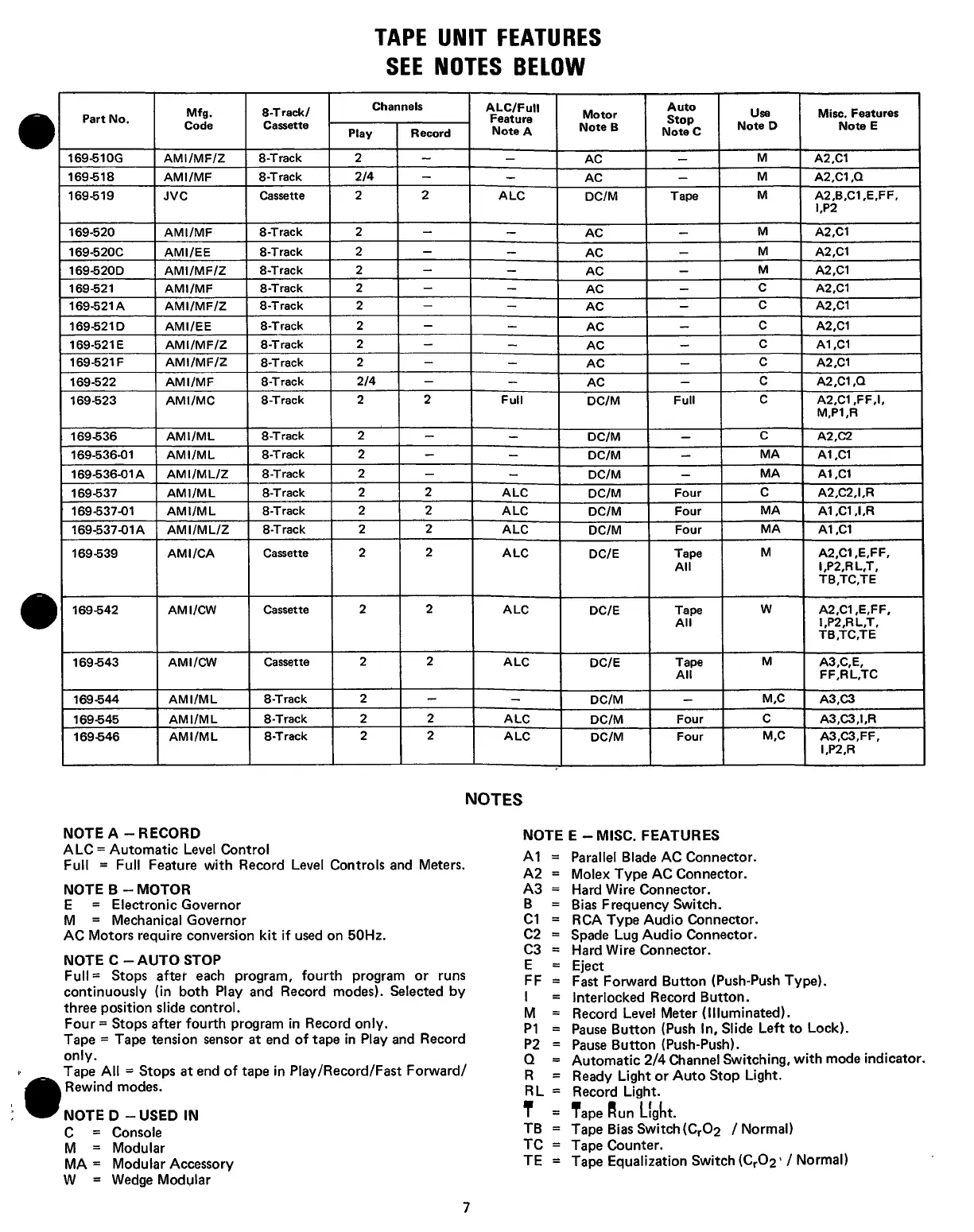

TAPE UNIT FEATURES
SEE NOTES BELOW
Part No.
Mfg.
Code
8-T rack/
Cassette
Channels
ALC/Full
Feature
Note A
Motor
Note B
Auto
Stop
Note C
Use
Note D
Mi sc. Features
Note E
Play
Record
169-51 0G
AMI/MF/Z
8-T rack 2
- -
AC
-
M
A2,C1
169-518
AMI/MF
8-T rack
2/4
- -
AC
-
M
A2,C1 ,Q
169-519
JVC
Cassette
2
2
ALC
DC/M
Tape
M A2,B,C1,E,FF,
l,P2
169-520
AMI/MF
8 -Track
2
-
-
AC
-
M
A2,C1
169-520C
AMI/EE
8-T rack
2
-
-
AC
—
M
A2,C1
169-520D
AMI/MF/Z
8-Track
2
-
-
AC
-
M
A2,C1
169-521
AMI/MF
8-Track
2
-
- AC -
C
A2,C1
169-521 A AMI/MF/Z
8-T rack
2
-
-
AC
-
C
A2,C1
169-521 D AMI/EE
8-T rack
2
- -
AC
—
C
A2,C1
169-521 E
AMI/MF/Z
8-T rack
2
- -
AC
-
C
A1,C1
169-521 F
AMI/MF/Z
8-T rack
2
-
-
AC
-
C
A2,C1
169-522 AMI/MF
8-T rack
2/4
-
-
AC
-
C
A2,C1 ,Q
169-523
AMI/MC
8-T rack
2 2
Full
DC/M
Full
C
A2,C1 ,FF,I,
M,P1,R
169-536
AM1/ML
8-T rack
2
-
- DC/M
-
C
A2,C2
169-536-01
AMI/ML
8-T rack
2
-
-
DC/M
-
MA
A1,C1
169-536-01 A AMI/ML/Z
8-Track 2
- -
DC/M
-
MA
A1,C1
169-537 AMI/ML
8-T rack
2
2
ALC
DC/M
Four
C
A2,C2,I,R
169-537-01 AMI/ML
8-T rack
2
2
ALC
DC/M
Four
MA
A1 ,C1,I,R
169-537-01 A
AMI/ML/Z
8-T rack
2
2
ALC
DC/M
Four
MA
A1 ,C1
169-539 AMI/CA
Cassette 2
2
ALC
DC/E
Tape
All
M A2,C1,E,FF,
l,P2,RL,T,
TB,TC,TE
169-542
AMI/CW
Cassette
2
2
ALC
DC/E
Tape
All
W
A2,C1,E,FF,
l,P2,RL,T,
TB,TC,TE
169-543
AMI/CW
Cassette
2
2
ALC
DC/E
Tape
All
M
A3,C,E,
FF,RL,TC
169-544
AMI/ML
8-Track
2
-
- DC/M -
M,C
A3,C3
169-545
AMI/ML
8-T rack
2
2
ALC
DC/M
Four
C
A3,C3,I,R
169-546
AMI/ML
8-T rack
2
2
ALC
DC/M
Four
M,C
A3,C3,FF,
l,P2,R
