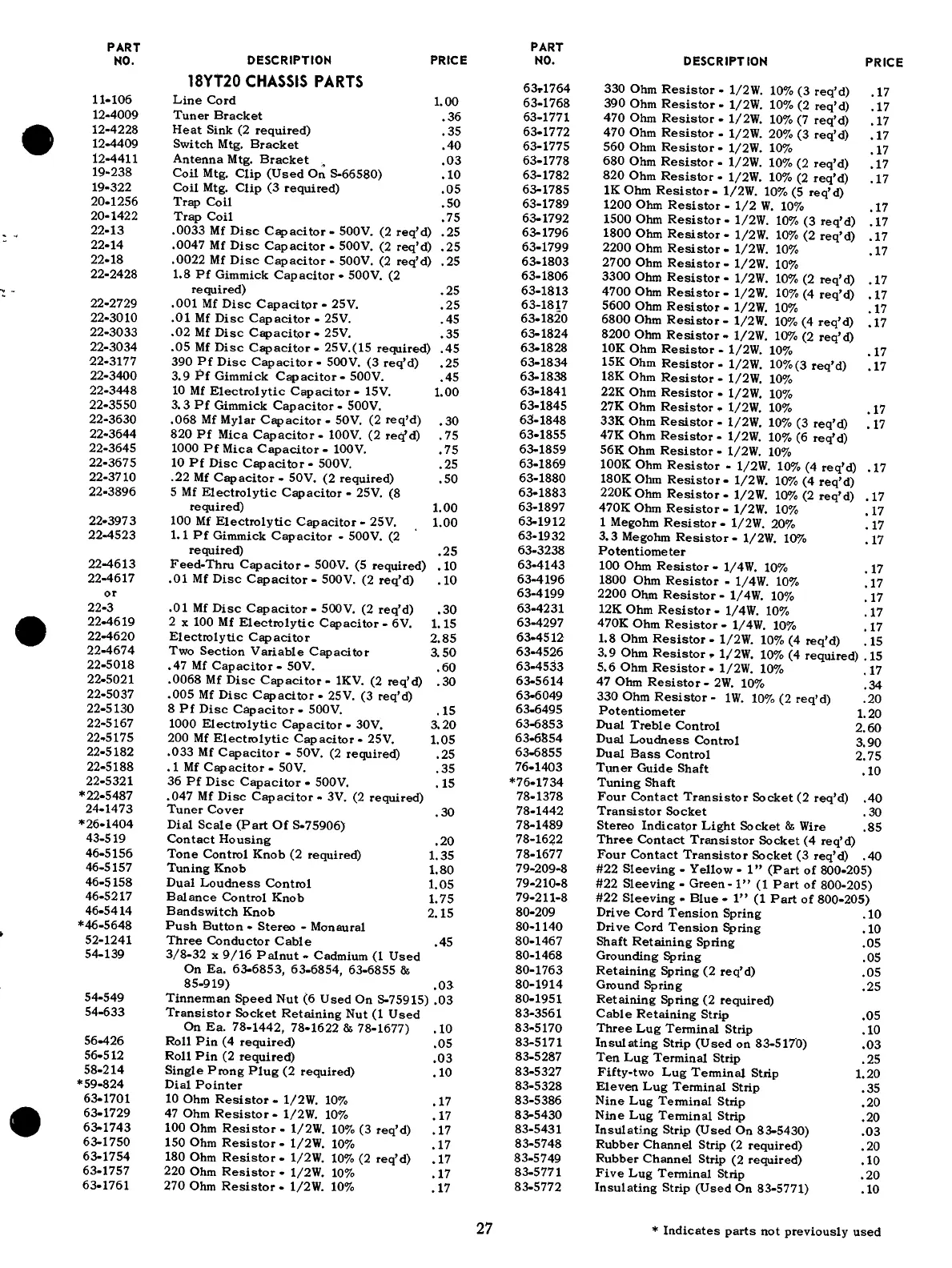

Zenith Y504B - Page 27

27
* Indicates parts not previously used
PART
NO.
DESCRIPTION PRICE
PART
NO.
DESCRIPTION
PRICE
18YT20 CHASSIS PARTS
63rl764
330 Ohm Resistor - 1/2 W. 10% (3 req ’ d)
.17
11-106
Line Cord
1.00
63-1768
390 Ohm Resistor - 1/2W. 10% (2 req ’ d)
.17
12-4009
Tuner Bracket
.36
63-1771
470 Ohm Resistor - 1/2W. 10% (7 req ’ d)
.17
12-4228
Heat Sink (2 required)
.35
63-1772
470 Ohm Resistor - 1/2 W. 20% (3 req ’ d)
.17
12-4409
Switch Mtg. Bracket
.40
63-1775
560 Ohm Resistor - 1/2W. 10%
. 17
12-4411
Antenna Mtg. Bracket
.03
63-1778
680 Ohm Resistor - 1/2W. 10% (2 req ’ d)
.17
19-238
Coil Mtg. Clip (Used On S-66580)
.10
63-1782
820 Ohm Resistor - 1/2W. 10% (2 req ’ d)
.17
19-322
Coil Mtg. Clip (3 required)
.05
63-1785
IK Ohm Resistor - 1/2W. 10% (5 req ’ d)
20-1256
Trap Coil
.50
63-1789
1200 Ohm Resistor - 1/2 W. 10%
.17
20-1422
Trap Coil
.75
63-1792
1500 Ohm Resistor - 1/2W. 10% (3 req ’ d)
.17
22-13
.0033 Mf Disc Capacitor - 500V. (2 req ’ d) .25
63-1796
1800 Ohm Resistor - 1/2W. 10% (2 req ’ d)
.17
22-14
.0047 Mf Disc Capacitor - 500V. (2 req ’ d) .25
63-1799
2200 Ohm Resistor - 1/2 W. 10%
.17
22-18
.0022 Mf Disc Capacitor - 500V. (2 req ’ d) .25
63-1803
2700 Ohm Resistor - 1/2W. 10%
22-2428
1.8 Pf Gimmick Capacitor - 500V. (2
63-1806
3300 Ohm Resistor - 1/2W. 10% (2 req ’ d)
.17
required)
.25
63-1813
4700 Ohm Resistor - 1/2 W. 10% (4 req ’ d)
.17
22-2729
.001 Mf Disc Capacitor - 25V.
.25
63-1817
5600 Ohm Resistor - 1/2W. 10%
.17
22-3010
.01 Mf Disc Capacitor - 25V.
.45
63-1820
6800 Ohm Resistor - 1/2W. 10% (4 req ’ d)
.17
22-3033
.02 Mf Disc Capacitor - 25V.
.35
63-1824
8200 Ohm Resistor - 1/2W. 10% (2 req ’ d)
22-3034
.05 Mf Disc Capacitor - 25V.(15 required) .45
63-1828
10K Ohm Resistor - 1/2W. 10%
.17
22-3177
390 Pf Disc Capacitor - 500V. (3 req ’ d)
.25
63-1834
15K Ohm Resistor - 1/2W. 10% (3 req ’ d)
.17
22-3400
3.9 Pf Gimmick Capacitor - 500V.
.45
63-1838
18K Ohm Resistor - 1/2W, 10%
22-3448
10 Mf Electrolytic Capacitor - 15V.
1.00
63-1841
22K Ohm Resistor - 1/2W. 10%
22-3550
3.3 Pf Gimmick Capacitor - 500V.
63-1845
27K Ohm Resistor t 1/2W. 10%
.17
22-3630
.068 Mf Mylar Capacitor - 50V. (2 req ’ d)
.30
63-1848
33K Ohm Resistor - 1/2W. 10% (3 req ’ d)
.17
22-3644
820 Pf Mica Capacitor - 100V. (2 req ’ d)
.75
63-1855
47K Ohm Resistor - 1/2W. 10% (6 req ’ d)
22-3645
1000 Pf Mica Capacitor - 100V.
.75
63-1859
56K Ohm Resistor - 1/2W. 10%
22-3675
10 Pf Disc Capacitor - 500V.
.25
63-1869
100K Ohm Resistor - 1/2 W. 10% (4 req ’ d)
.17
22-3710
.22 Mf Capacitor - 50V. (2 required)
.50
63-1880
180K Ohm Resistor - 1/2W. 10% (4 req ’ d)
22-3896
5 Mf Electrolytic Capacitor - 25V. (8
63-1883
220KOhm Resistor - 1/2W. 10% (2 req ’ d)
.17
required)
1.00
63-1897
470K Ohm Resistor - 1/2W. 10%
.17
22-3973
100 Mf Electrolytic Capacitor - 25V.
1.00
63-1912
1 Megohm Resistor - 1/2W. 20%
.17
22-4523
1.1 Pf Gimmick Capacitor - 500V. (2
63-1932
3.3 Megohm Resistor- 1/2W. 10%
.17
required)
.25
63-3238
Potentiometer
22-4613
Feed-Thru Capacitor - 500V. (5 required)
.10
63-4143
100 Ohm Resistor - 1/4W. 10%
.17
22-4617
.01 Mf Disc Capacitor - 500V. (2 req ’ d)
.10
63-4196
1800 Ohm Resistor - 1/4W. 10%
.17
or
63-4199
2200 Ohm Resistor - 1/4W. 10%
.17
22-3
.01 Mf Disc Capacitor - 500V. (2 req ’ d)
.30
63-4231
12K Ohm Resistor - 1/4 W. 10%
.17
22-4619
2 x 100 Mf Electrolytic Capacitor - 6V.
1.15
63-4297
470K Ohm Resistor - 1/4W. 10%
.17
22-4620
Electrolytic Capacitor
2.85
63-4512
1.8 Ohm Resistor - 1/2W. 10% (4 req ’ d)
.15
22-4674
Two Section Variable Capacitor
3.50
63-4526
3.9 Ohm Resistor - 1/2W. 10% (4 required}
i .15
22-5018
.47 Mf Capacitor - 50V.
.60
63-4533
5.6 Ohm Resistor - 1/2W. 10%
.17
22-5021
.0068 Mf Disc Capacitor - 1KV. (2 req ’ d)
.30
63-5614
47 Ohm Resistor - 2W. 10%
.34
22-5037
.005 Mf Disc Capacitor - 25V. (3 req ’ d)
63-6049
330 Ohm Resistor - 1W. 10% (2 req ’ d)
.20
22-5130
8 Pf Disc Capacitor - 500V.
.15
63-6495
Potentiometer
1.20
22-5167
1000 Electrolytic Capacitor - 30V.
3.20
63-6853
Dual Treble Control
2.60
22-5175
200 Mf Electrolytic Capacitor - 25V.
1.05
63-6854
Dual Loudness Control
3.90
22-5182
.033 Mf Capacitor - 50V. (2 required)
.25
63-6855
Dual Bass Control
2.75
22-5188
. 1 Mf Capacitor - 50V.
.35
76-1403
Tuner Guide Shaft
.10
22-5321
36 Pf Disc Capacitor - 500V.
.15
*76-1734
Tuning Shaft
*22-5487
.047 Mf Disc Capacitor - 3V. (2 required)
78-1378
Four Contact Transistor Socket (2 req ’ d)
.40
24-1473
Tuner Cover
.30
78-1442
Transistor Socket
.30
*26-1404
Dial Scale (Part Of S-75906)
78-1489
Stereo Indicator Light Socket & Wire
.85
43-519
Contact Housing
.20
78-1622
Three Contact Transistor Socket (4 req ’ d)
46-5156
Tone Control Knob (2 required)
1.35
78-1677
Four Contact Transistor Socket (3 req ’ d)
.40
46-5157
Tuning Knob
1.80
79-209-8
#22 Sleeving - Yellow - 1 ” (Part of 800-205)
46-5158
Dual Loudness Control
1.05
79-210-8
#22 Sleeving - Green - 1 ” (1 Part of 800-205)
46-5217
Balance Control Knob
1.75
79-211-8
#22 Sleeving - Blue - 1 ” (1 Part of 800-205)
46-5414
Bandswitch Knob
2.15
80-209
Drive Cord Tension Spring
.10
*46-5648
Push Button - Stereo - Monaural
80-1140
Drive Cord Tension Spring
.10
52-1241
Three Conductor Cable
.45
80-1467
Shaft Retaining Spring
.05
54-139
3/8-32 x 9/16 Palnut - Cadmium (1 Used 80-1468
Grounding Spring
.05
On Ea. 63-6853, 63-6854, 63-6855 &
80-1763
Retaining Spring (2 req ’ d)
.05
85-919)
.OS
80-1914
Ground Spring
.25
54-549
Tinnerman Speed Nut (6 Used On S-75915)
► .03
80-1951
Retaining Spring (2 required)
54-633
Transistor Socket Retaining Nut (1 Used
83-3561
Cable Retaining Strip
.05
On Ea. 78-1442, 78-1622 & 78-1677)
.10
83-5170
Three Lug Terminal Strip
.10
56-426
Roll Pin (4 required)
.05
83-5171
Insulating Strip (Used on 83-5170)
.03
56-512
Roll Pin (2 required)
.03
83-5287
Ten Lug Terminal Strip
.25
58-214
Single Prong Plug (2 required)
.10
83-5327
Fifty-two Lug Terminal Strip
1.20
*59-824
Dial Pointer
83-5328
Eleven Lug Terminal Strip
.35
63-1701
10 Ohm Resistor - 1/2W. 10%
.17
83-5386
Nine Lug Terminal Strip
.20
63-1729
47 Ohm Resistor - 1/2W. 10%
.17
83-5430
Nine Lug Terminal Strip
.20
63-1743
100 Ohm Resistor - 1/2W. 10% (3 req ’ d)
.17
83-5431
Insulating Strip (Used On 83-5430)
.03
63-1750
150 Ohm Resistor - 1/2W. 10%
.17
83-5748
Rubber Channel Strip (2 required)
.20
63-1754
180 Ohm Resistor - 1/2W. 10% (2 req ’ d)
.17
83-5749
Rubber Channel Strip (2 required)
.10
63-1757
220 Ohm Resistor - 1/2W. 10%
.17
83-5771
Five Lug Terminal Strip
.20
63-1761
270 Ohm Resistor - 1/2W. 10%
.17
83-5772
Insulating Strip (Used On 83-5771)
.10
