7
WARNING FIRE HAZARD
NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages.
All exhaust must be ducted to the outside.
Use single wall rigid metal ductwork only.
)DVWHQDOOFRQQHFWLRQVZLWKVKHHWPHWDOVFUHZVDQGWDSHDOOMRLQWVZLWKFHUWL¿HG6LOYHU7DSHRU'XFW7DSH

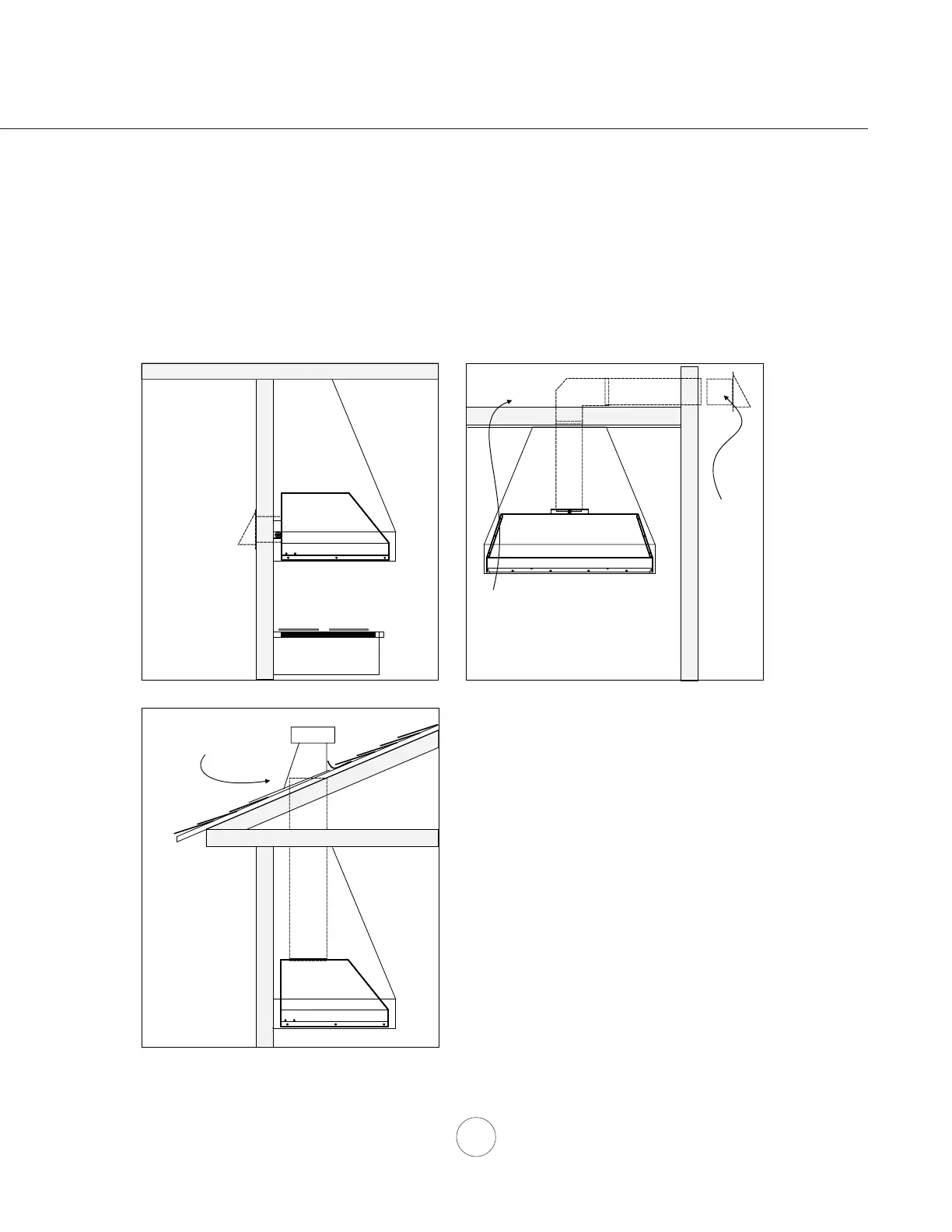

Some Ducting Options
Installation – Ducting Options
side wall cap
w/ gravity damper
side wall cap
w/ gravity dampe
r
Soffit or crawl space
Roof Pitch w/
Flashing & Cap
3-1/4”x10” rect.
horizontal ducting
7” round
vertical ducting
7” round
vertical ducting
