ZETRON Model 16 - Page 86

SECTION б - INSTALLATION

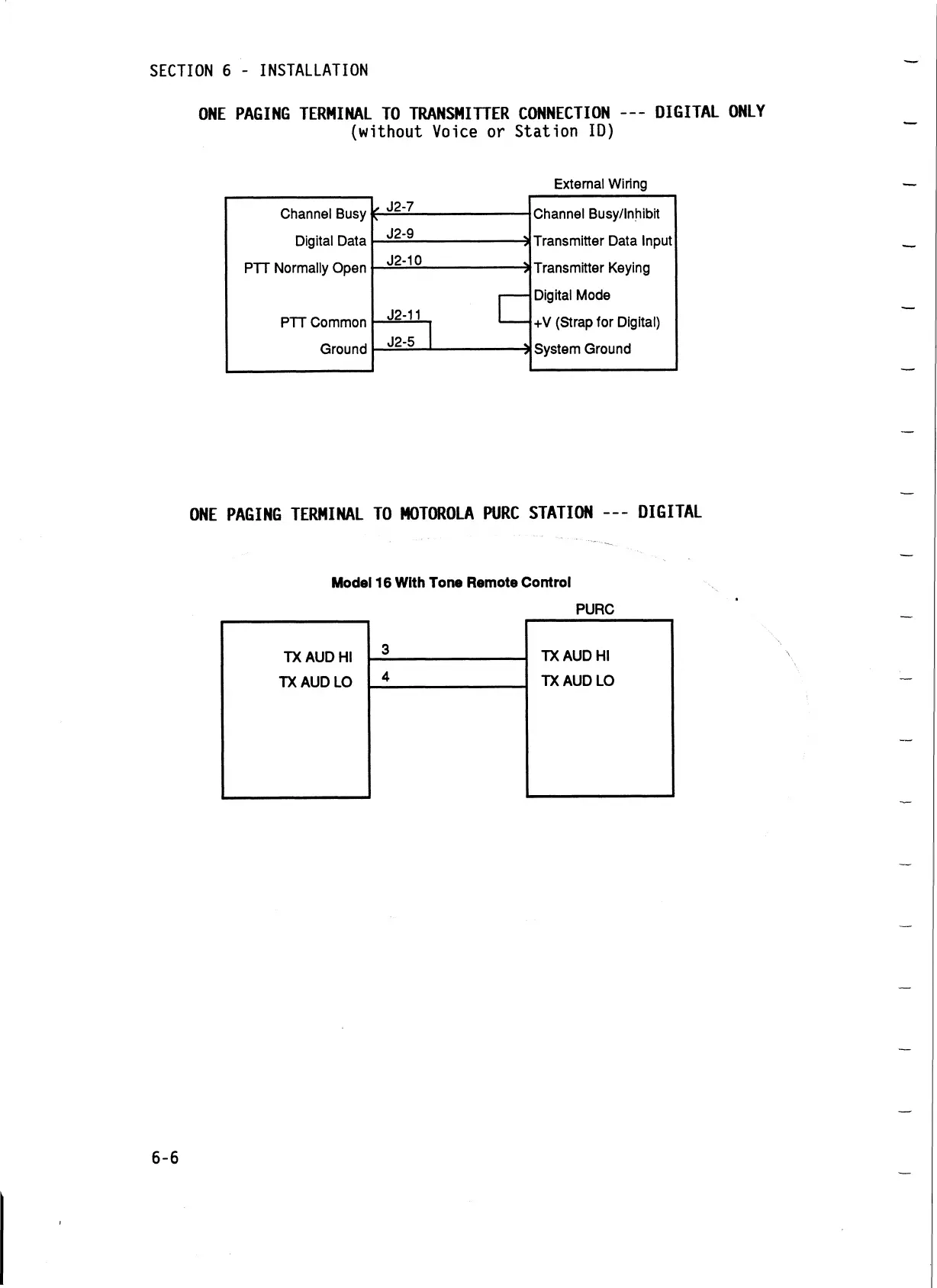

ONE PAGING TERMINAL TO TRANSMITTER CONNECTION — - DIGITAL ONLY
(without Voice or Station ID)
External Wiring
Channel Busy
^ J2-7
Channel Busy/lnhibit
Digital Data
J2-9
--------------------- *
Transmitter Data Input
PTT Normally Open
J2-10
--------- 5
Transmitter Keying
Digital Mode
PTT Common
J2-11
+V (Strap for Digital)
Ground
J2-5
----------->
System Ground
ONE PAGING TERMINAL TO MOTOROLA PURC STATION — DIGITAL
Model 16 With Tone Remote Control
PURC
6-6
