ZF Marine ClearCommand 9000 Series User Manual

INSTALLA TION
Page4-21

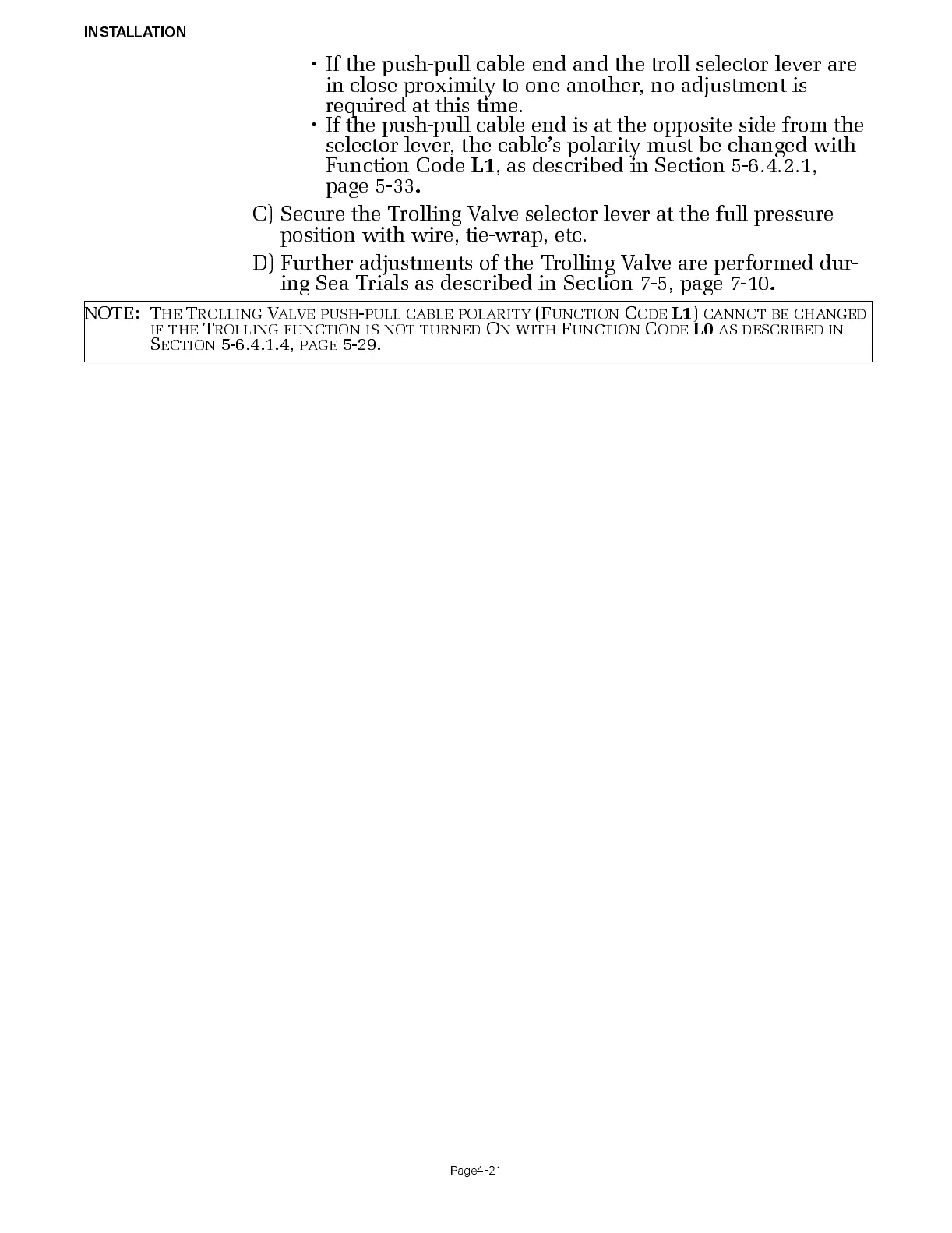

• If the push-pull cable end and the troll selector lever are
in clos e proximity to one another, no adjus tment is
required at t his time.
• If the push-pull cabl e en d is at the opposite side from the
selector lever, the cable’s polarity must be changed with
Function Code L1 , as descr ibed in Section 5-6. 4.2.1,
page 5-33 .
C) Secure the Tr olling Valve selector lever at the full press u re
position with wire, tie-wrap, etc .
D) Furt her adjustments of the Trol lin g Va lve are per form ed dur-
ing Sea Trials as described in Section 7-5, page 7-10 .
NOTE: T HE T ROLLING V ALVE PUSH - PULL CABLE POLARITY (F UNCTION C ODE L1 ) CANNOT BE CHANGED
IF THE T ROLLING FUNCTION IS NOT TURNED O N WITH F UNCTION C ODE L0 AS DESCRIBED IN
S
ECTION 5-6.4.1.4, PAGE 5-29.
