The gearbox can be supplied with or without optionals (oil cooler, flexible coupling, brackets, trolling
valve).
Gearboxes are supplied without oil.
POS.
DESCRIPTION
1
2
3
4
5
6
7
8
PTO cover
Oil pump
Output shaft
Strainer / Oil filter
Drain plugs
Rear half housing
Front half housing
Oil dipstick
POS. DESCRIPTION
9
10
11
12
13
14
15
16
Breather
Oil cooler
Filter plug
Identification plate
Control valve
Valve control lever
1/8 NPTF pressure connector
Oil filter
Tab. 1
The gearbox must be filled with oil and the oil level checked before use. (see MAINTENANCE section)
Using the gearbox with insufficient oil could damage the gears.
Too much oil could cause leakages through the gaskets and breather and considerably increase the
running temperature.
Under normal conditions, the drive should be reversed when the engine is idling.
In emergencies, the drive can be reversed with the engine running at maximum speed.
Repeatedly reversing the drive with the engine running at maximum speed will considerably
shorten the life of the clutches
Make sure the engine and propeller are at a standstill before carrying out any kind of operation
on the gearbox.

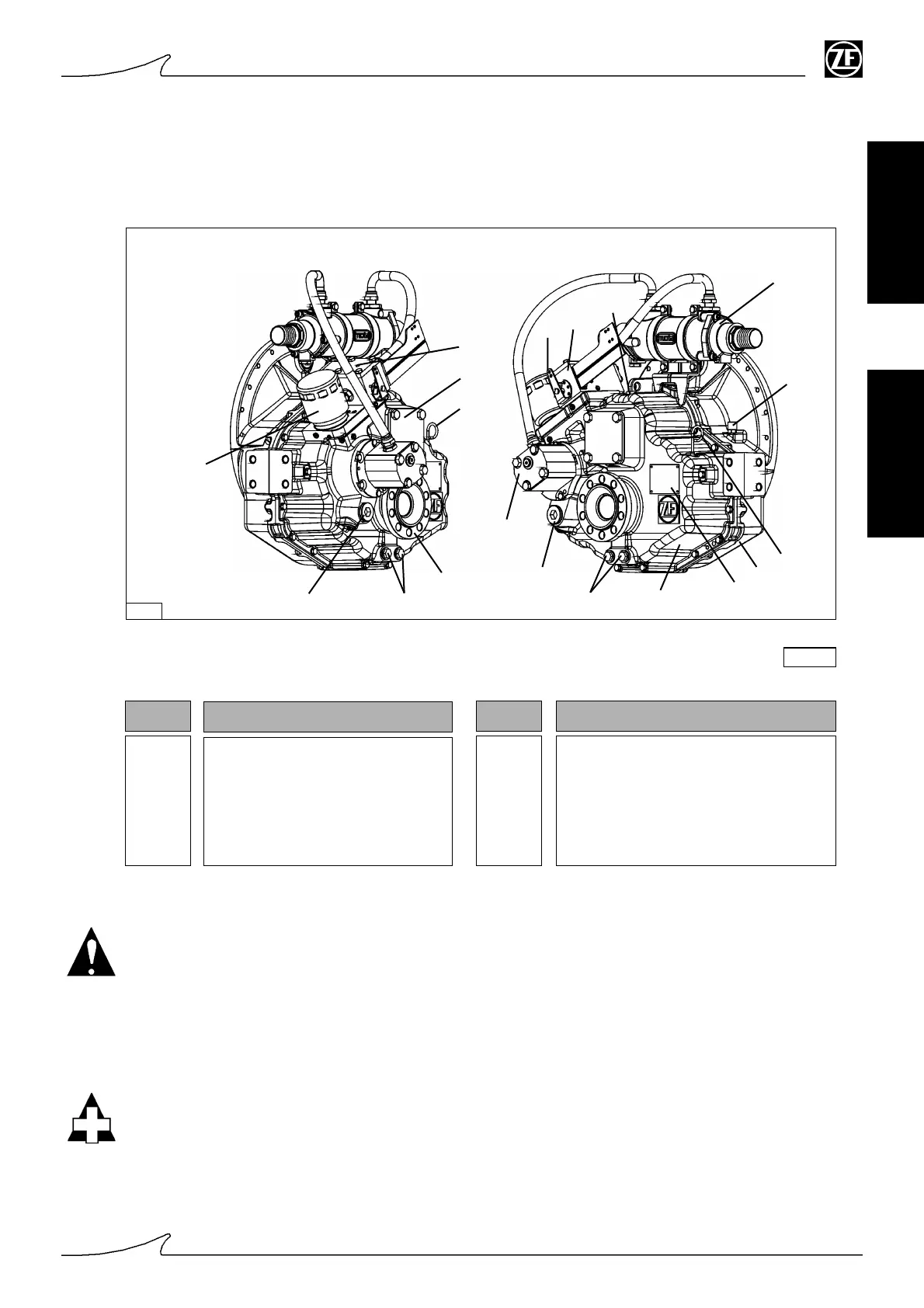

Fig.4
16
4
5
3
8
1
15
2
4
5
6
12
7
8
9
10
11
13
14
ZF 305 - ZF 305A
