ZF 350 A User Manual

7
GB
Neutral
The output shaft [2] connected to the propeller shaft does not transmit any rotation.
The clutches are disengaged.
Engine rotation
The output shaft [2] connected to the propeller shaft rotates in the same direction as the input
shaft [1].
Counter engine rotation
The output shaft [2] connected to the propeller shaft rotates in the opposite direction to the input
shaft [1].
E.R. = direction of rotation same as direction of rotation of engine
C.E.R. = direction of rotation opposite to direction of rotation of engine
The transmission ratio, for both the engine and counter-engine rotation modes, is stated on the
identification plate. The three types of operation are controlled by the control valve [3] (mechanical or
electrical).

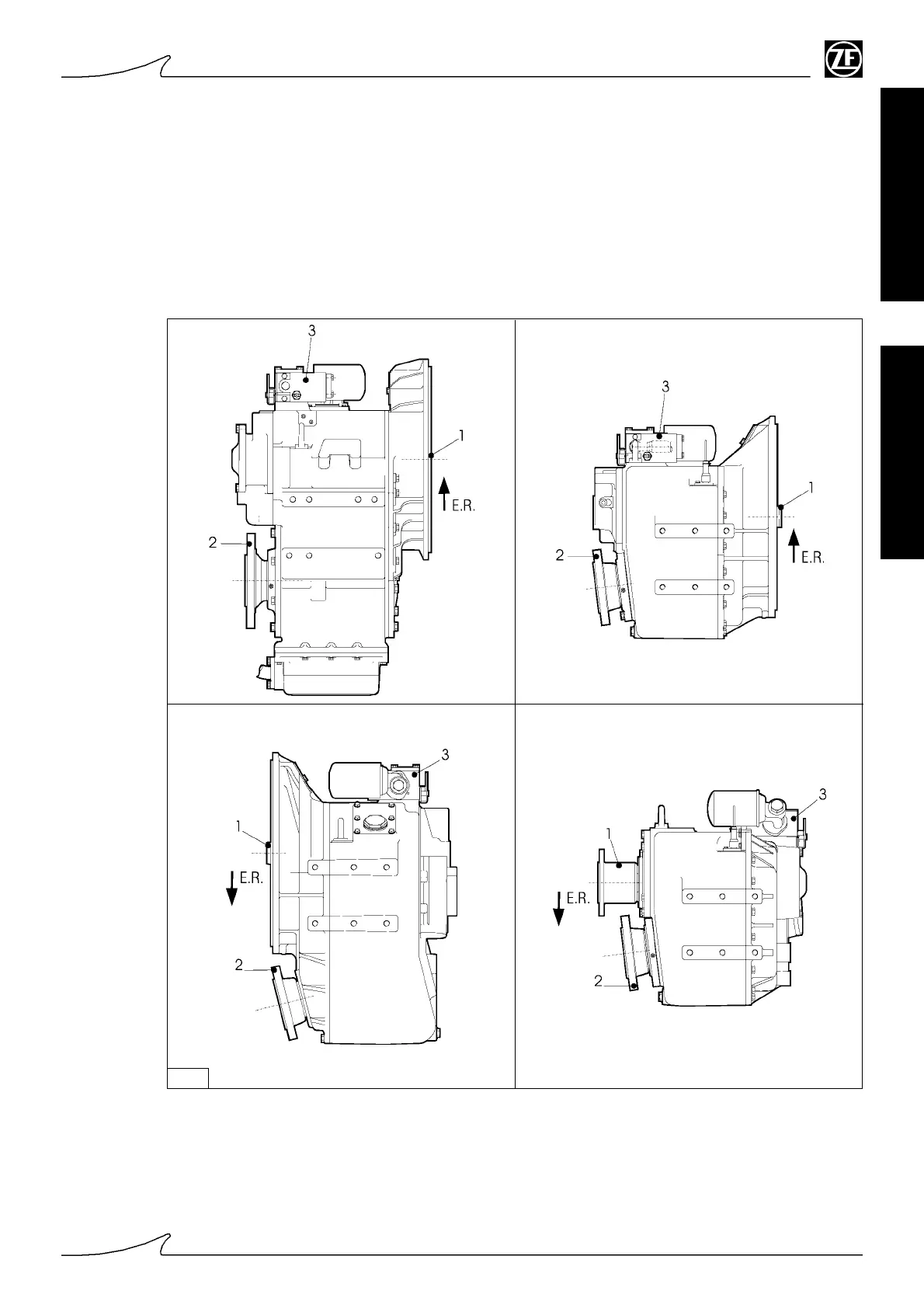

Fig. 6
ZF W 350 ZF 350 A
ZF 350 IV ZF 350 V
