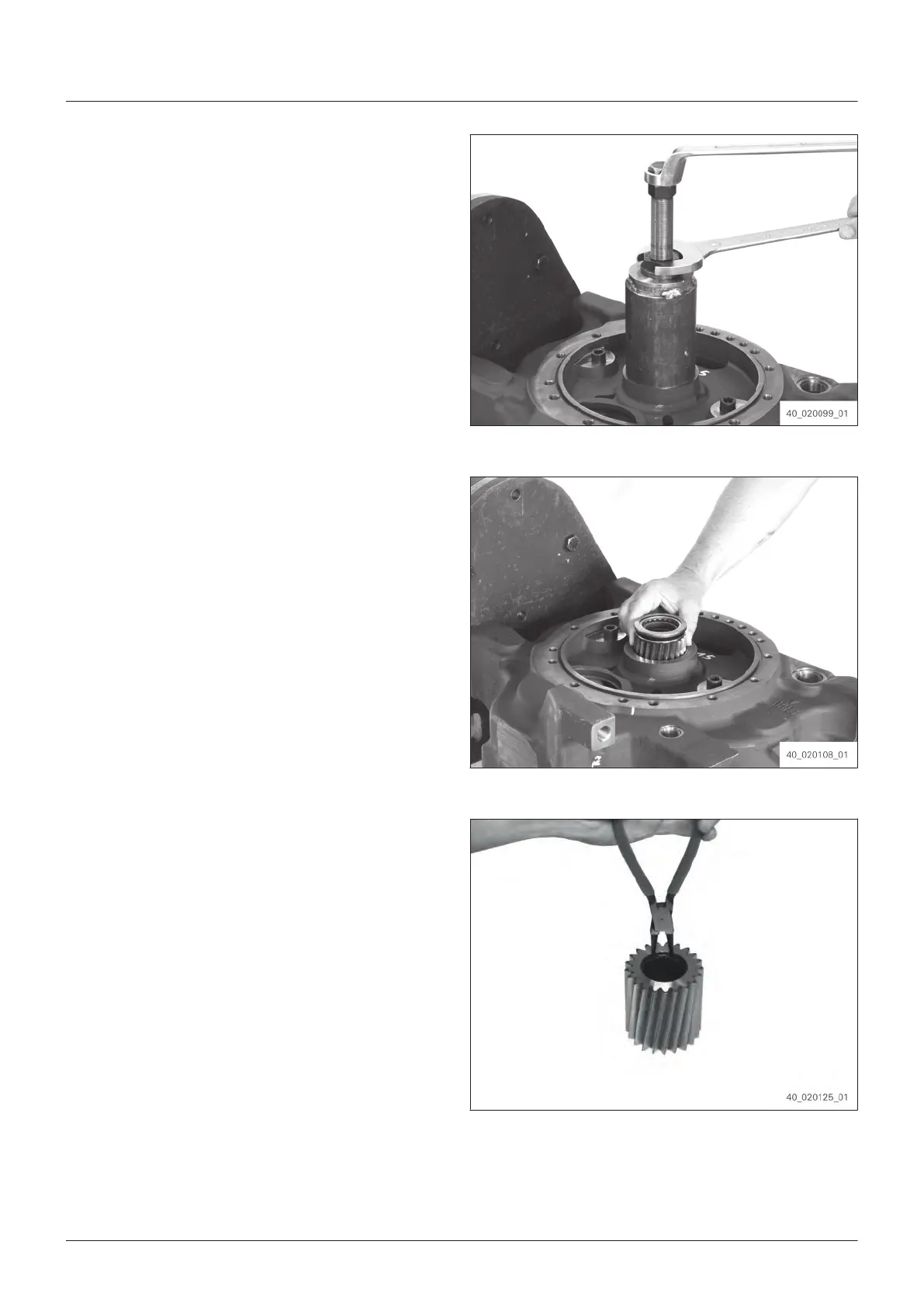

6. Bolt spindle of AA02.038.564 [Disassembly
de
vice] manually into the three-piece tool.
7. Hold spindle of AA02.038.564 [Disassembly
device]. Turn hexagon nut and pull bush out
of the portal housing.
Fig. 85
8. Remove drive gear and individual parts.
Fig. 86
9. Remove retaining ring.
Fig. 87
Dismantling
EN 4472.751.001 - 2015-11
61
