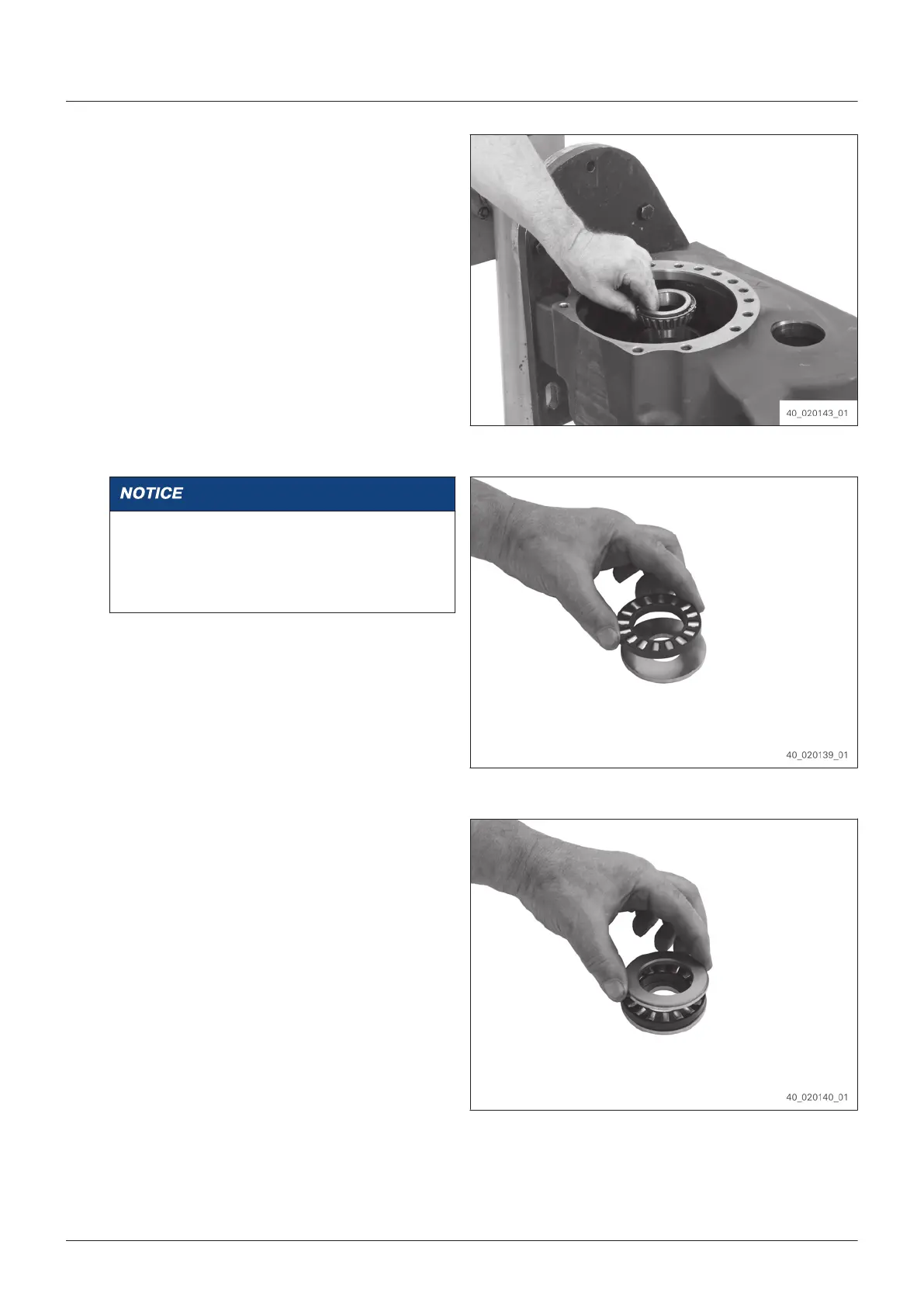

28. Insert the tapered roller bearing into the
int
ermediate gear.
29. Place intermediate gear and tapered roller
bearing onto a bush (thrust washer) in the
portal housing.
Fig. 172
30.
Damage due to wrong arrangement of the
parts possible.
ð
Observe installation position of the
individual parts.
Put the roller cage onto the shaft washer.
R
adius or chamfer on the internal diameter of
the shaft washer must be opposite of the
roller cage.
Fig. 173
31. Place disk with radius or chamfer on the
out
er diameter showing upwards onto the
roller cage.
Fig. 174
Assembly
94
EN 4472.751.001 - 2015-11
