3.1
GENERAL DESCRIPTION OF THE EQUIPMENT
3.2
TABLE OF THE COMPONENTS
CHAPTER 3: DESCRIPTION OF THE EQUIPMENT
F
U
S
E
F
U
S
E
Zhermack S.p.A.
BADIA POLESINE - ITALY
A
D
C
H
E
I
G
F
B

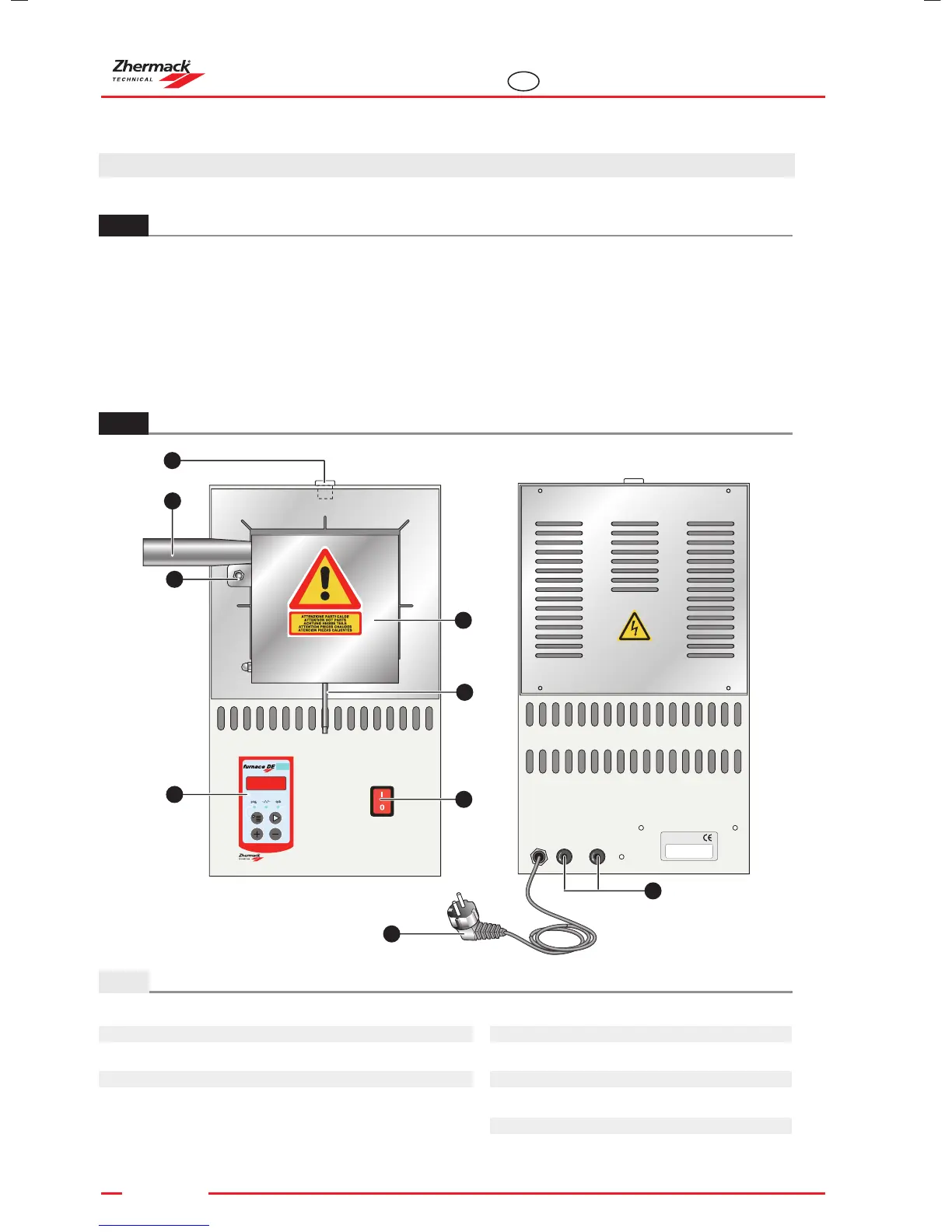

A. Ceramic air bleeder
B. Door open/close handle
C. Magnetic closure
D. Control panel (see section 3.3)
E. Main switch
F. Door microswitch
G. Oven chamber door
H. Power lead
I. Fuses
The DE series ovens ( versions DE 1, DE 2, DE 3) have been designed to fire and/or melt the
lining cylinders used in odontotechny.
The DE series ovens allow the user to program a 2-stage work cycle in which each stage
consists of three parameters:
- temperature.
- temperature increase rate.
- stabilisation time.
3.2.1
Description of the components
