Zig X-3 - Product Specifications and Diagram; Input Specifications; Output Specifications; Suggested Wiring Diagram

PRODUCT SPECIFICATION - X-3 POWER SUPPLY
Input Specification:
1. Rated input voltage
2. Rated input current
198-240 VAC
0.8A(RMS) max at 230 VAC
3. Rated input frequency:
47 Hz-63 Hz.
Output Specification
1.
Rated output voltage: Nominal 13.8V
2.
Rated output current (continuous)
OA - 6.5A
3. Ripple and Noise: 100 mv p-p
4.
Output voltage, stability:
+/- 0.5%
5. Maximum power: 139 watts
6. Maximum current: 10A
jiim* I
RCCD
TRIP
i
5 amp
<
10 amp
to ign.
car
battery
ISA
' 1
25A
RM 14
o
CONNECTION
X-3
12 3 4
IT'T'T'T1
CONTROL PANEL
+ aux
+ car —negative
This = — m wm
una..:-: • ; r: r
Fuses i~z -jmgai
What:: :: - ij«J
1. •I'j- M
2. C:-JC-*»
3. If *«-.:: m
CARAVAN
BATTERY

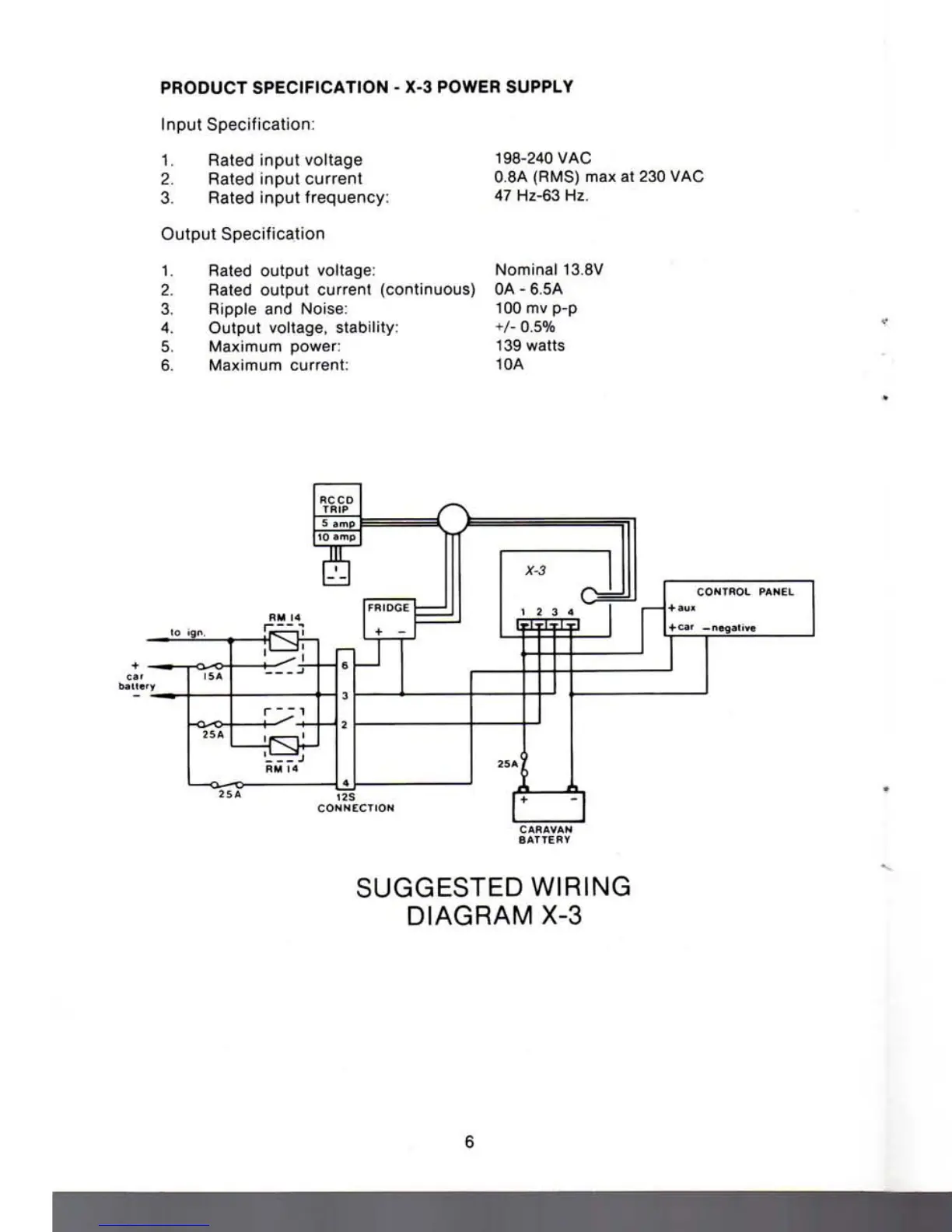

SUGGESTED WIRING
DIAGRAM X-3
(b) Al
(c) A i
This G^ar
6
