GND
GND
V+
V+
Normally Closed Lock
Normally Closed Lock
9
Lock Relay Connection
10
The system supports both Normally Opened Lock and Normally Closed Lock. The NO Lock (Normally
Opened when powered) is connected with 'NO' and 'COM' terminals, and the NC Lock (Normally Closed
when powered) is connected with 'NC' and 'COM' terminals. The power can be shared with the lock or can
be used separately for the lock, as shown in the example with NC Lock below.

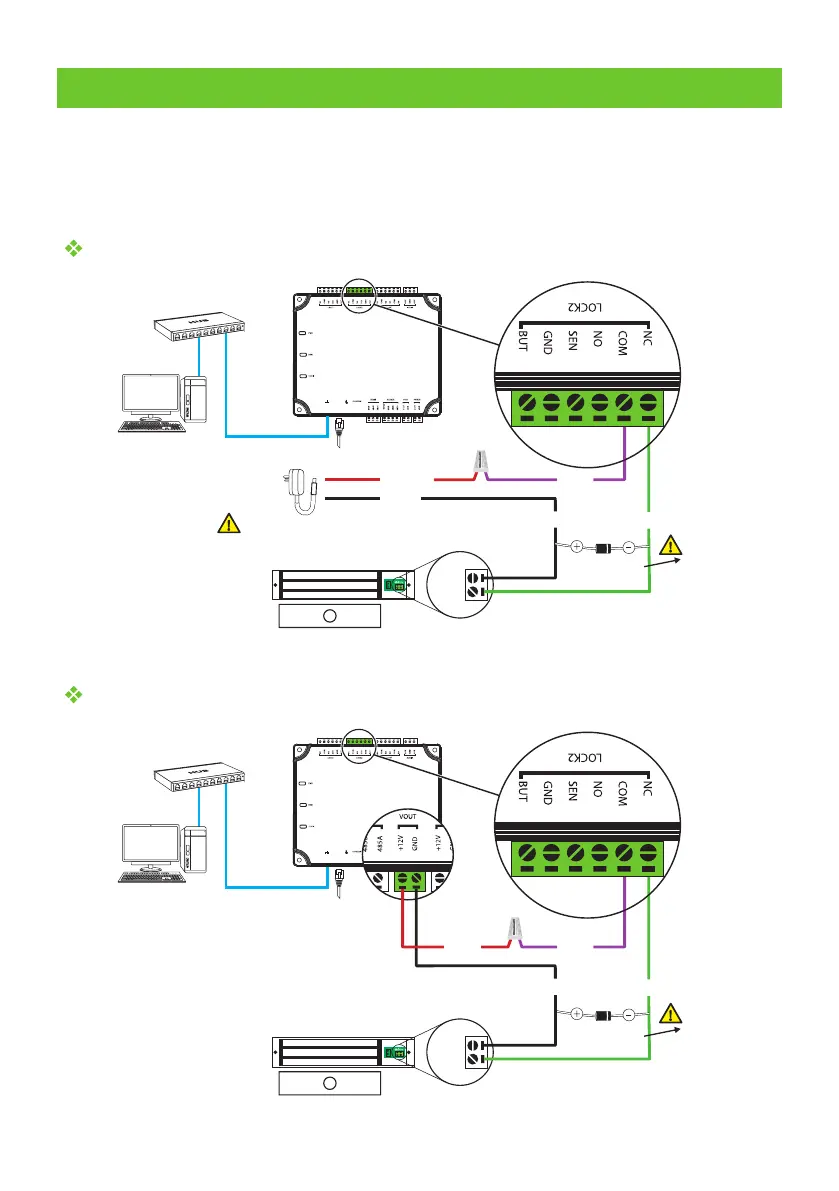

Device not sharing power with the lock
PC
PC
GND
GND
NC
NC
+12V DC
COM
COM
GND
Maximum30V2Ainput.
FR107 Diode
FR107 Diode
TCP/IP
TCP/IP
Device sharing power with the lock
+12V
Do not reverse
the polarity.
Do not reverse
the polarity.
