ZKTeco C2-260 Installation Guide

7

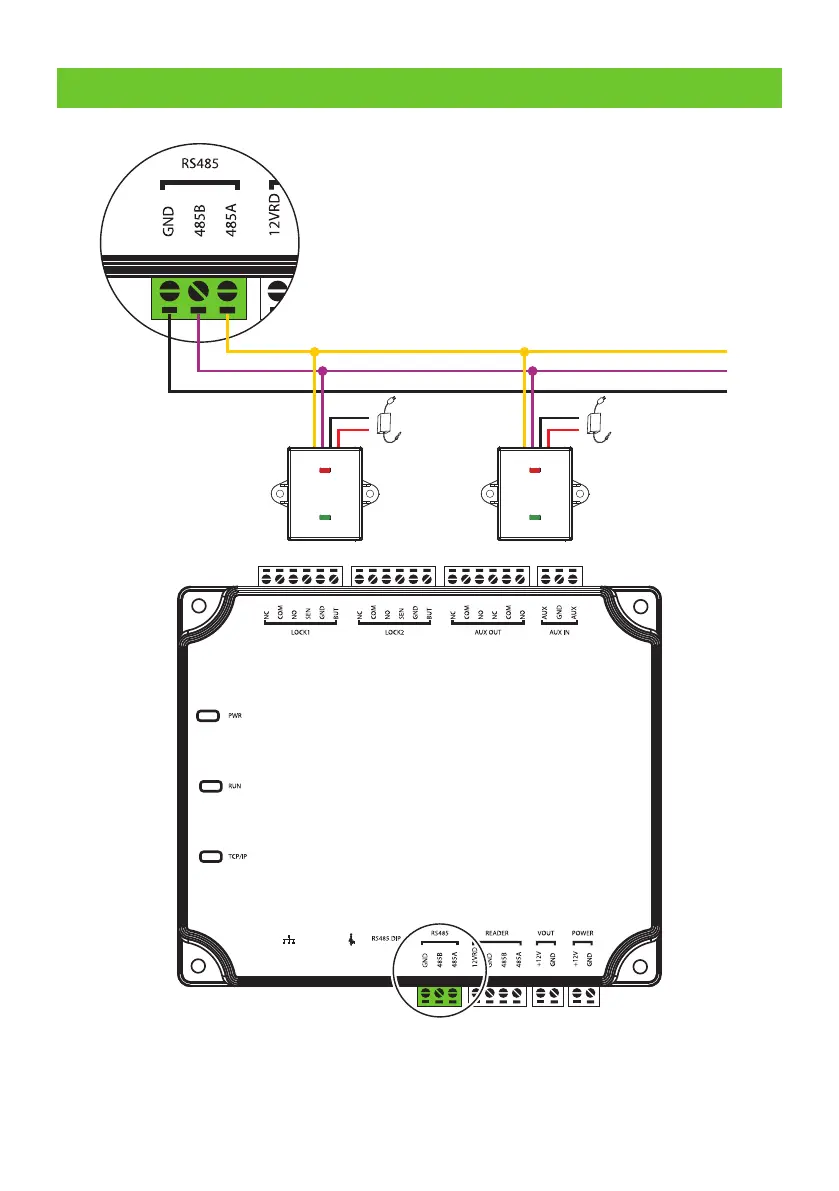

AUX485 Connection
AUX485
+
1
2
V
G
N
D
48
5
B
48
5
A
A
U
X
1
G
N
D
A
U
X
2
A
U
X
3
G
N
D
A
U
X
4
DC12V
AUX485
+
1
2
V
G
N
D
48
5
B
48
5
A
A
U
X
1
G
N
D
A
U
X
2
A
U
X
3
G
N
D
A
U
X
4
DC12V
485A
485B
GND
Notes:
1. A C2-260 can connect to maximum two AUX485 modules.
2. Each AUX485 module can connect to maximum four auxiliary devices.
3. Each AUX485 module requires a separate power supply.
6

ZKTeco C2-260 Specifications

General

Brand	ZKTeco
Model	C2-260
Category	IP Access Controllers
Language	English
