ZKTeco EC16 Quick Start Guide

NO
COM
NC
NO
COM
NC
5
4
3
2
1
10
9
8
7
6

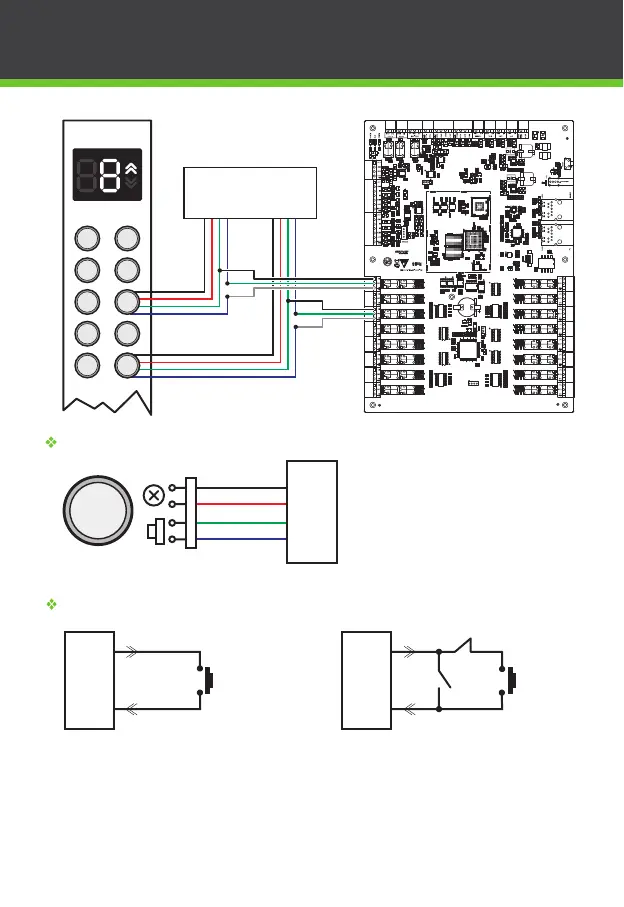

Elevator button wiring
Elevator original
logic controller
6
Lamp Cord 1
Lamp Cord 2
Signal Cable 1
Signal Cable 2
Elevator Logic
Controller
Connect Signal Cable 1 to the NO terminal
of the corresponding floor. After Signal Cable
2 is disconnected, COM and NC terminals
are connected to the COM and NC terminals
of the corresponding floor respectively.
Wiring for swipe to select floor and direct floor selection
Instruction:
Elevator Logic
Controller
S2
S1
COM
NO
NC
Elevator Logic
Controller
Elevator
Button
Elevator
Button
Original Elevator Button Connection Elevator Button Connection for Elevator Control
Instruction: S1/S2 switches are two relays (S1 relay is normally closed and S2 relay is normally
open) of the elevator control board respectively. S1 is disconnected after power on, and S1 is
closed after swiping the layer selection card, then the elevator button can be lit by pressing; S2 is
closed after swiping the direct access card, then the elevator button will be lit automatically.
6
Elevator Button
Elevator Button Connection
