INSTALLATION
INSTALLATION NOTICES

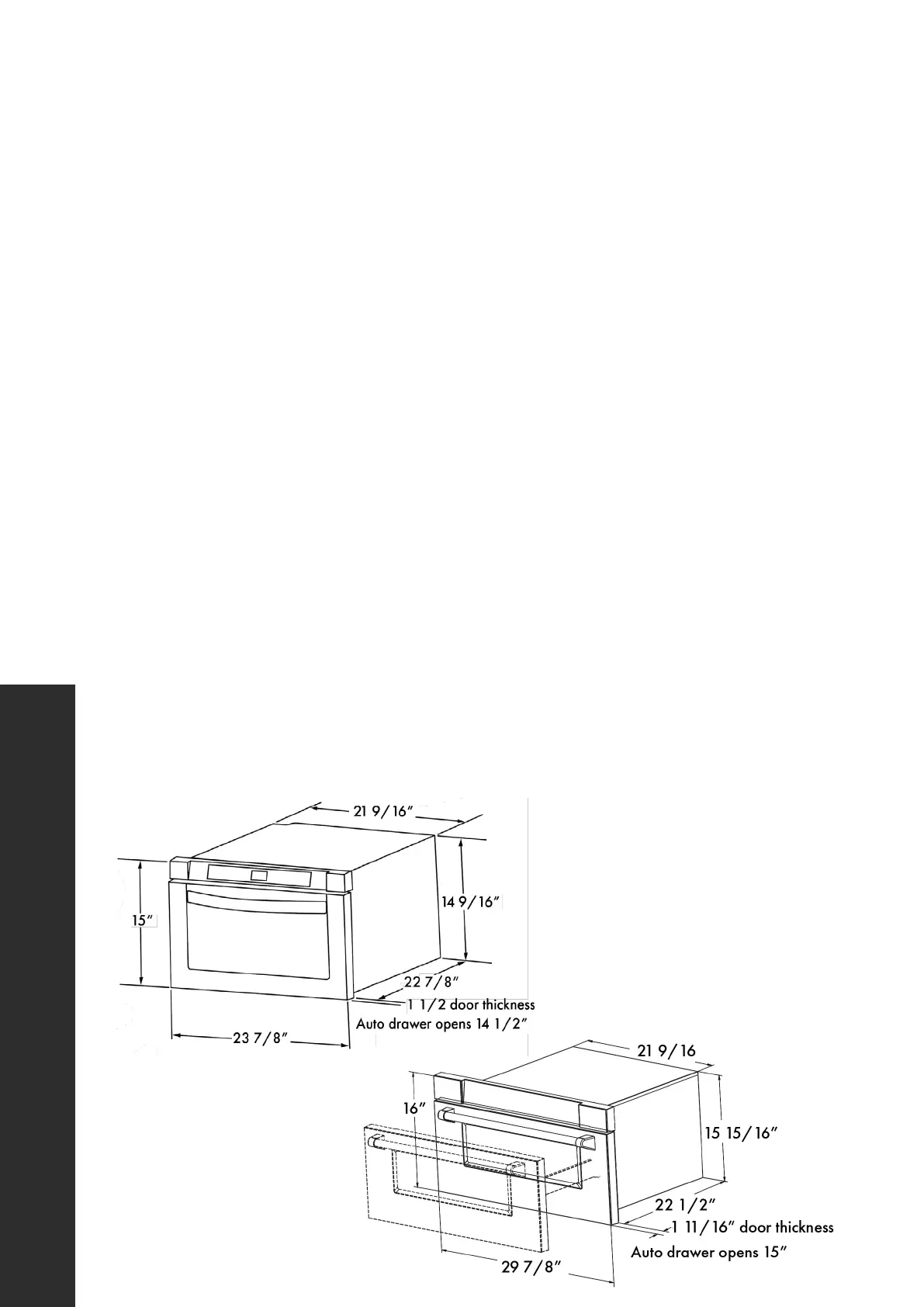

Dimensions that are shown in the figures must be used. Given dimensions provide
minimum clearance. Locate electrical outlet in the shaded area in the upper left-hand
corner of the cutout.
• Contact surface must be solid and level. Pay special attention to the floor on which
the Microwave Drawer will sit. The floor of the opening should be constructed of
plywood strong enough to support the weight of the oven (about 100 pounds).
• Check location where the Microwave Drawer will be installed for proper electrical
supply
• Your oven can be built into a cabinet or wall by itself or under a gas or electric
wall oven.
• Be sure that the clearance of the floor between the wall oven and the microwave
drawer is a minimum of 2”.
• This microwave drawer can be installed below any electric or gas wall oven.
• It can be installed using an electrical outlet in an adjacent cabinet within the area
where the provided electrical cord can reach.
• The power cord access hole inside the cabinet should have a minimum diameter of
1 1/2” and be free of all sharp edges. ALWAYS allow for sufficient power cord
length to the electrical outlet in order to prevent tension.
Installation Notices
24” Microwaves
(MWD-1 and MWD-1-BS)
30” Microwaves
