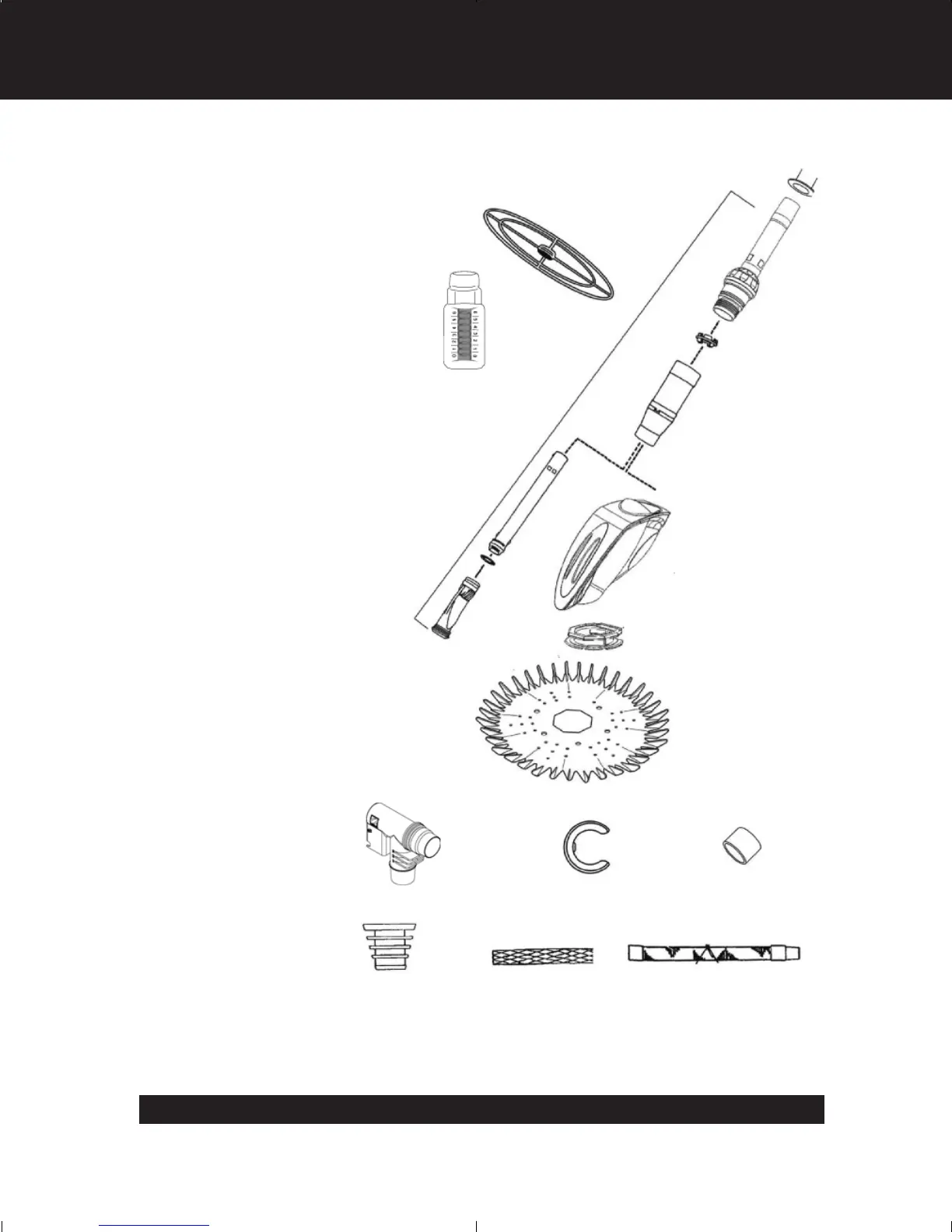

SECTION 5 – PARTS AND IDENTIFICATION
10
DESCRIPTION
1. Leader Hose adaptor (pink)
2. Outer Extension Pipe
3. Outer Body
4. Flexifoot
5. 36 Finned Disc
6. Inner Extension Pipe
7. Diaphragm
8. Wheel Deflector (Large)
9. AD Flow Valve
10. Hose Weight
11. Zodiac Genuine Long Life Hose x10
12. Universal Weir Cuff
13. Hose protector mesh
14. Spacer Ring
15. Pool Pulse
STOP: If listed parts are missing, please contact your pool builder/retailer immediately.
15
8
1
2
6
7
14
3
10
9
11
13
12
5
4
