SECTION 4 – SERVICING YOUR MACHINE
7

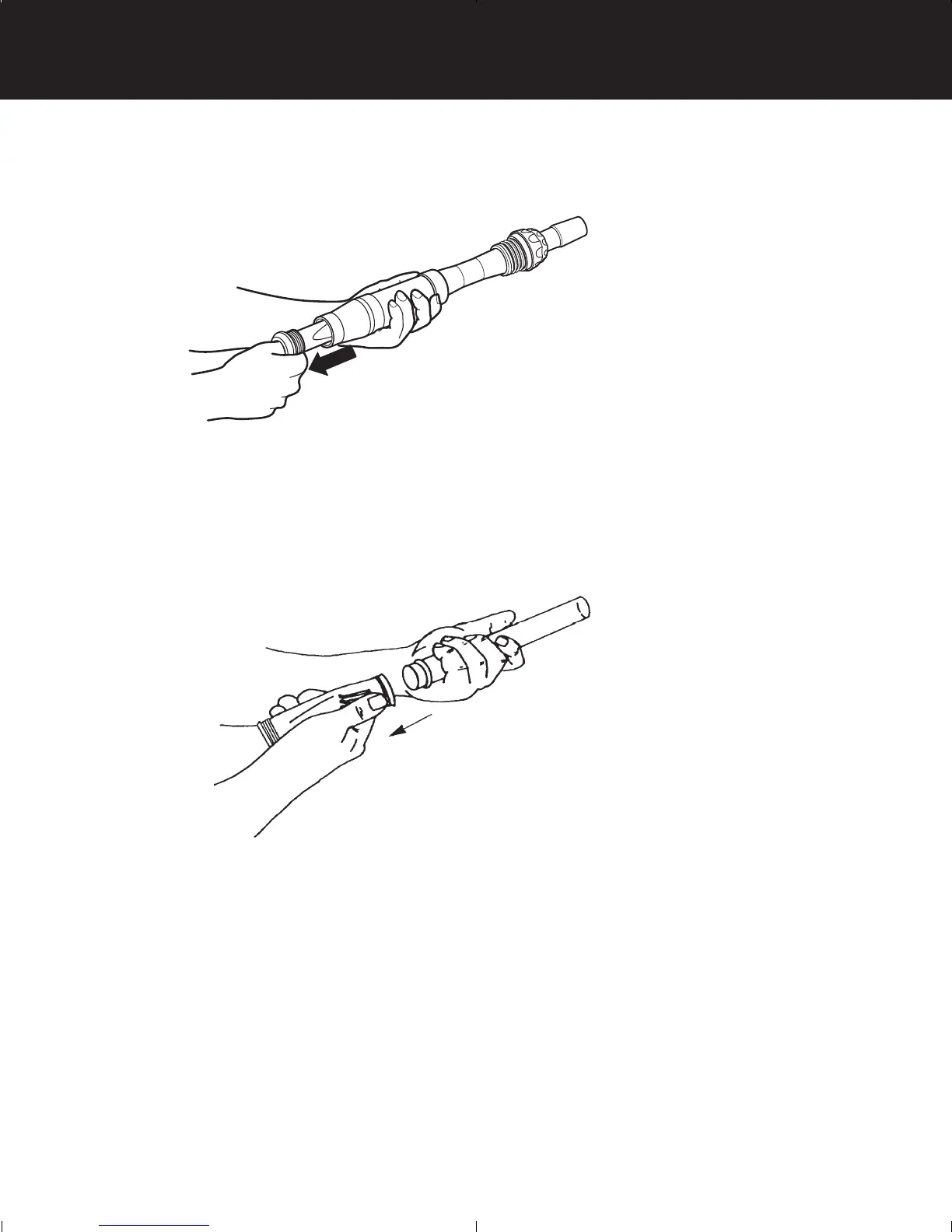

Step 3: Parting Diaphragm Assembly
Grasp the rim of the diaphragm and pull the diaphragm assembly out of the cassette.
Step 4
Step 3
Step 4: Removal of Inner Extension Pipe
Remove the diaphragm from the inner extension pipe. The retaining ring on the
diaphragm must be placed on the new diaphragm.
Step 5: Examination
Inspect the diaphragm for the blockage or damage. If damage is evident, i.e. a cut or
hole on the sides of the diaphragm, it will need to be replaced by your authorised
Zodiac dealer.
If a blockage is apparent, grasp it and remove it. If this can’t be done, a garden hose
may be used to flush the obstacle through. Do not use any sharp objects to
probe or push an obstruction as this may damage the diaphragm.
