E Series Service Manual
9650-1450-01 Rev. D 5-3
Front Panel Removal

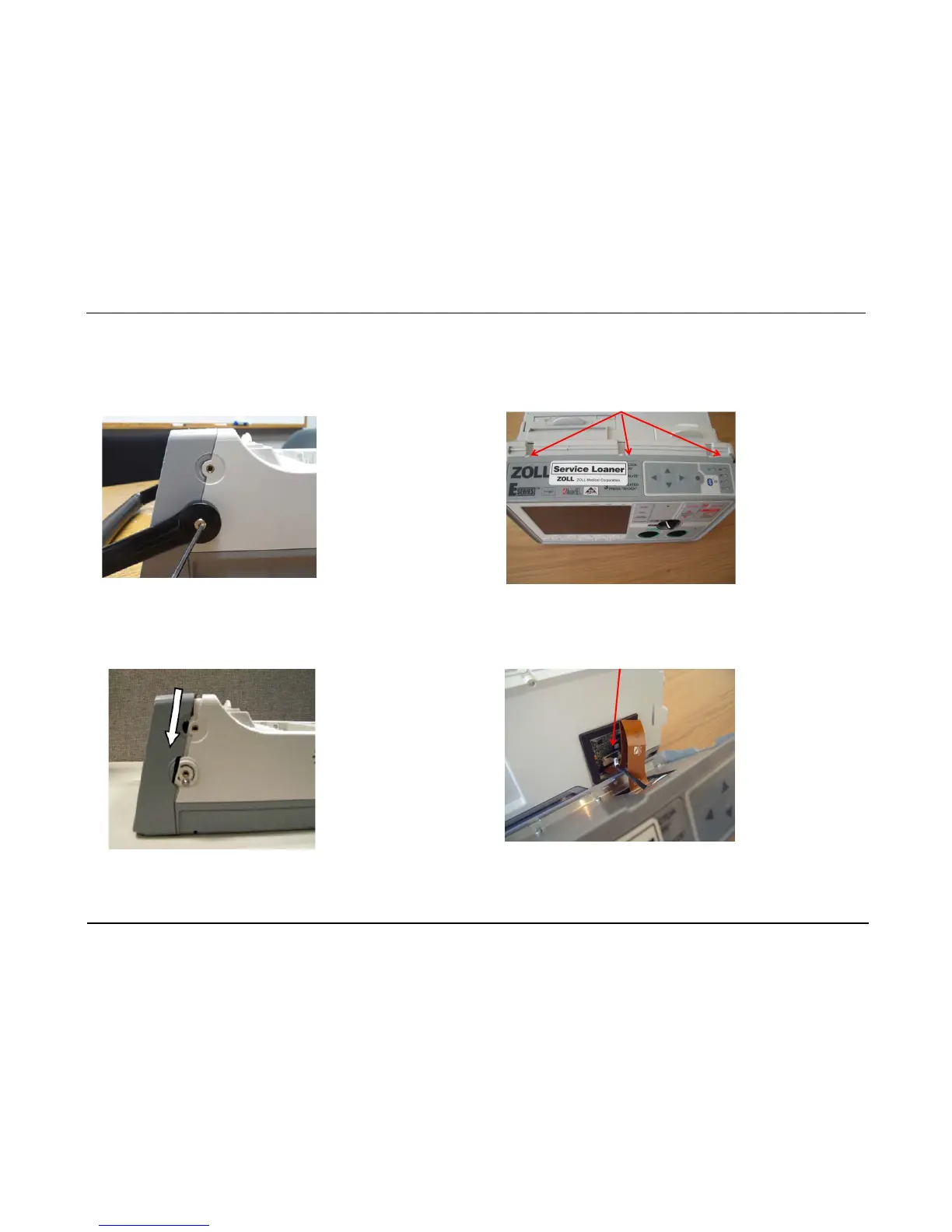

1. Remove handle by removing the screw and washer on each
side.
2. Remove the 3 screws on the top of the panel.
3. Front panel assembly slides down. Use caution when removing
the front panel, cables run from the front panel to the System
Board. Do NOT pull the front panel far from the main chassis.
4. Gently remove black stranded cable by pulling the
connector straight out of board.
