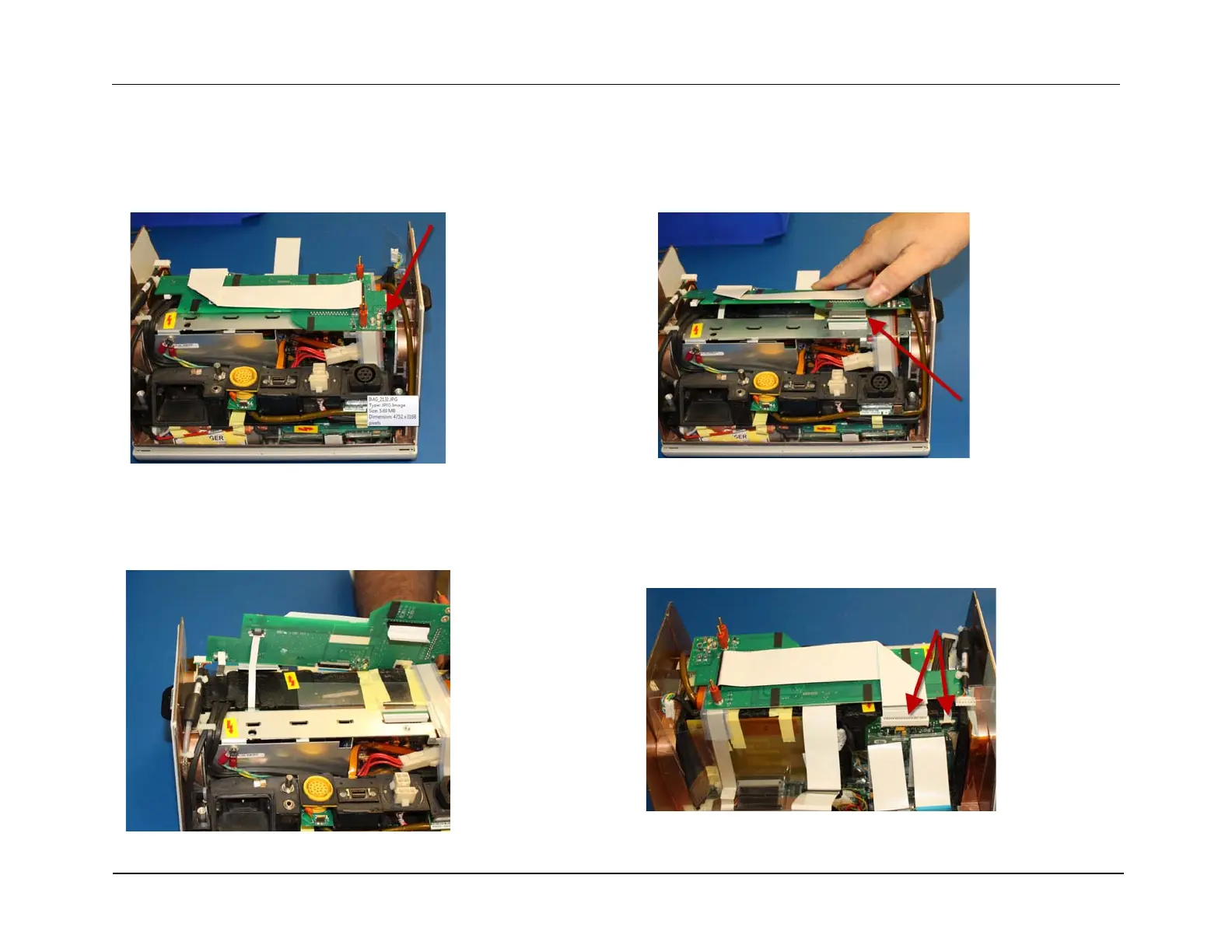

ZOLL M Series Service Manual

1. Remove black rivet by pulling straight up. 2. Lift Battery Interconnect board; disconnect cable going to
AC/DC charger board.
3. Disconnect HV control cable from the backside of the HV
module by lifting tabs and pulling cable straight out.
4. From the front of the unit, disconnect the pacer control
cable from the HV module by lifting tabs and pulling cable
straight out. Then remove HV power cable by lifting straight
up.
M Series Service Manual
9650-0450-01 Rev. U 5-15
Battery Interconnect Board Assembly Removal

ZOLL M Series Specifications

General

Pacer Rate	30 - 180 ppm
Display Type	LCD
Defibrillator Type	Manual and AED
Monitor Display	High-resolution LCD
ECG Monitoring	3-lead
Pacing	Demand
Battery Type	Lithium-ion
Display	High-resolution LCD
Waveform	Biphasic Truncated Exponential (BTE)
Monitoring Parameters	ECG, SpO2, EtCO2, NIBP, temperature
Connectivity	Data port for data transfer
Pacer Type	Transcutaneous
Pacer Output	0 - 140 mA
Printer	Integrated thermal
Energy Selection	2, 3, 5, 7, 10, 15, 20, 30, 50, 70, 100, 120, 150, 200 Joules
