ZOLL R Series Service Manual

R Series Service Manual
9650-0903-01 Rev. L 3-21
Removing the NIBP Assembly

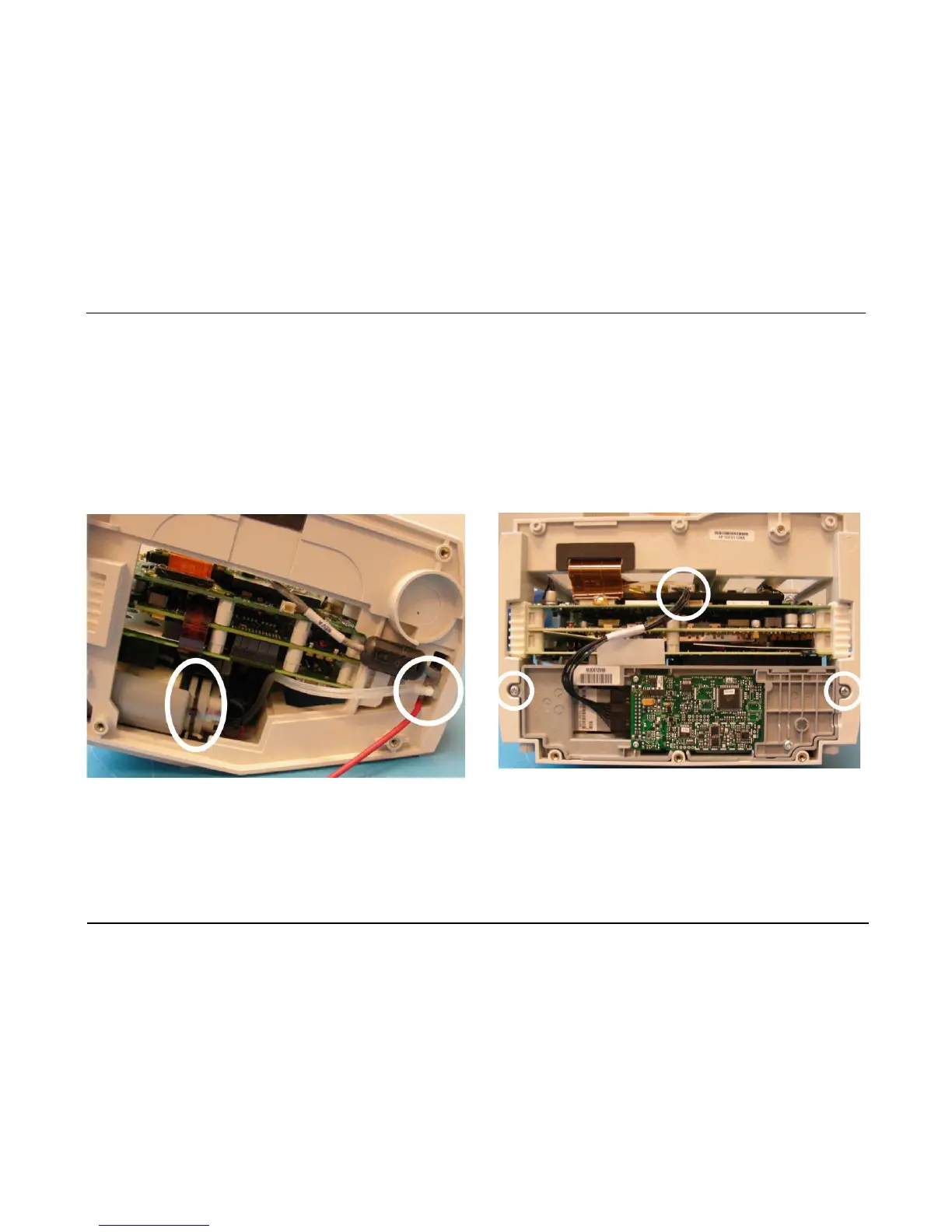

1. Disconnect the hose from the manifold and cut the
cable tie securing the pump to the chassis.
2. Disconnect the cable from the NIBP assembly from
parameter power supply by pushing down on latch at
the top of the connector.
Remove the 2 screws securing the NIBP assembly to
the chassis.
Note: When reassembling, ensure NIBP tubing is not routed
between pump wiring. Secure the NIBP bracket to the
anchor with a cable tie.
Note: During reassembly, torque to 6 in-lbs.

ZOLL R Series Specifications

General

Defibrillator Type	Manual and AED
Pacing	Yes
ECG Monitoring	Yes
SpO2 Monitoring	Yes
FAST-SpO2	Yes
IP Rating	IP55
Defibrillator Waveform	Biphasic
Energy Levels	1-360 Joules
Display	LCD
Pacer Type	Demand
Pacer Rate	30-180 ppm
Pacer Output	0 – 140 mA
EtCO2 Monitoring	Optional
NIBP Monitoring	Optional
Temperature Monitoring	Optional
Printer	Integrated
Battery Type	Lithium-ion
CPR Feedback	Yes
Data Storage	Internal memory
Connectivity	USB
