Zonet ZSR4124WE Quick Installation Guide

2

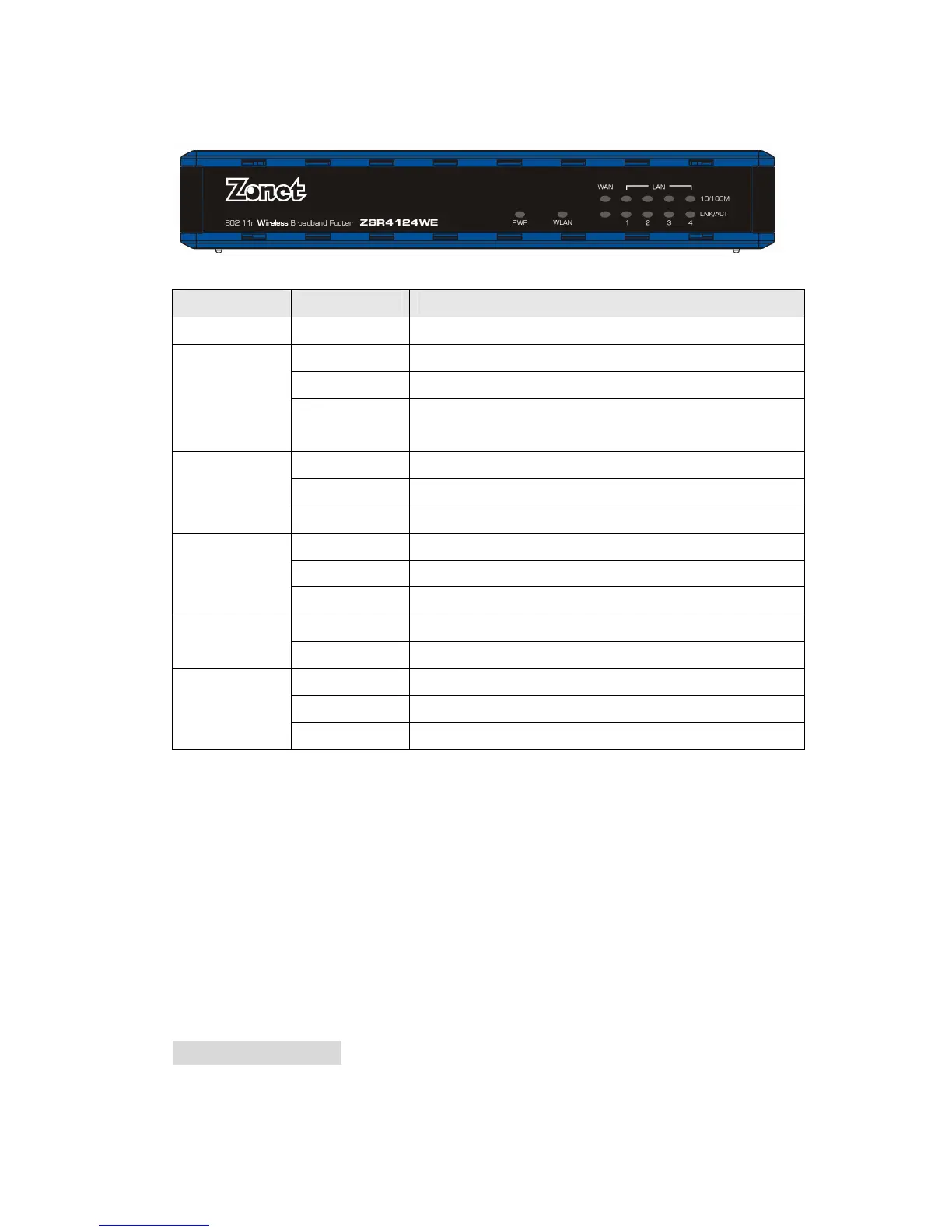

Front Panel
LED Name Light Status
Description
PWR On Router is switched on and correctly powered.
On Wireless WPS function is enabled.
Off Wireless network is switched off.
WLAN
Flashing Wireless LAN activity (transferring or receiving
data).
On WAN port (Internet) is running at 100Mbps.
Off WAN port (Internet) is running at 10Mbps.
WAN
10/100M
Flashing WAN activity (transferring or receiving data).
On WAN port is connected.
Off WAN port is not connected.
WAN
LNK/ACT
Flashing WAN activity (transferring or receiving data).
On LAN port is running at 100Mbps. LAN
10/100M
Off LAN port is running at 10Mbps.
On LAN port is connected.
Off LAN port is not connected.
LAN
LNK/ACT
Flashing LAN activity (transferring or receiving data).
2. PC Setup
Before you can connect to the router and start configuration procedures, your
computer must be able to get an IP address automatically (use dynamic IP address). If
it’s set to use static IP address, or you’re unsure, please follow the following instructions
to configure your computer to use dynamic IP address:
2-1. Windows IP address setup:
Windows 2000/XP
 Click “Start” button (it should be located at lower-left corner of your computer),
then click control panel. Double-click Network and Dial-up Connections icon;
