FRONT VIEW
Power Supply Cord
Drip Loop
Aquatic Turtle or Aquarium Tank
Appliance
COD. 3322-0200

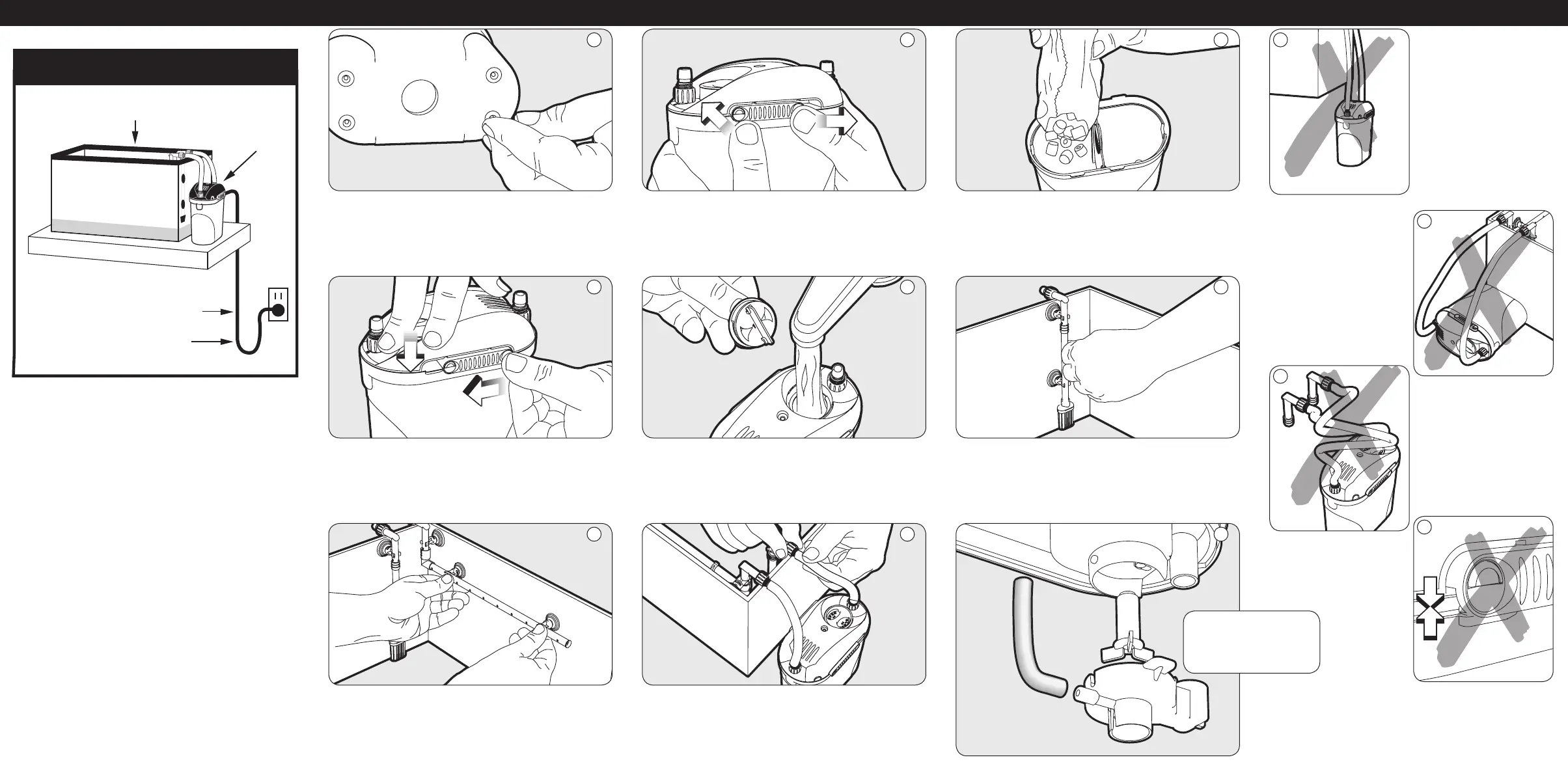

Insert the feet in their locations.
1
Open the filter by pushing first on the orange safety
device, and then slide the clip towards the right end side.
HELPFUL HINT: Hold the orange button in while sliding
the clip into the un-locked position.
2
Open the top cap and FILL UP COMPLETELY. To close
the cap, rotate it until the locking device clicks.
HELPFUL HINT: Replace the top cap before plugging
the filter in.
5
Push the pipes onto their spigots and lock with the
screw nuts.
HELPFUL HINT: Be sure that the intake tube is connected
to the spigot labled “IN.”
8
Rinse carbon bag (U) under running water and insert it
into the filter chamber. Do not open the carbon bag.
Remove the ceramic media from plastic bag, wash under
running water and put into in the filter chamber on top of
the carbon media.
3
6
9
Close the filter by pressing down the head completely and
slide each locking clip from right to left.
Press the suction cups on the spray bar against the
thoroughly cleaned wall.
7
It is recommended that
the filter is placed on the
same level as the tank.
A
For best performance
place the filter in an
upright position beside
the tank.
B
Avoid tight bends or
kinks in the (inlet or
outlet) pipes.
A
The filter will be closed only
after pushing fully down the
head and the clips from the
right to the left hand side.
B
ATTENTIONUSE DRIP LOOP
ASSEMBLY INSTRUCTIONS
Identify the parts you have found in the box and in
the accessories bag. See diagram of parts on
reverse side.
Assemble the suction cups (G1) onto the clips (G2).
Mount the screw-nuts (E) onto the hard elbows (I)
and on the filter head.
Insert the strainer (H) onto the intake tube (N).
Close one end of the spray bar tube (tube with
holes P) with the plug supplied (in the parts bag).
Mount the rubber elbow (M) onto the one hard
elbow (I).
If you prefer to use the diverter (L) mount it directly
onto the rubber elbow (M).
4
Thoroughly clean the wall before pressing the suction cups
and tube against it.
HELPFUL HINT: If necessary, carefully trim the rigid intake
tube and spray bar. With the intake strainer in place, the
intake tube should just reach the bottom of your tank.
HELPFUL HINT:
The “Air Vent Tube”
should be pointed
up-toward the motorhead.
