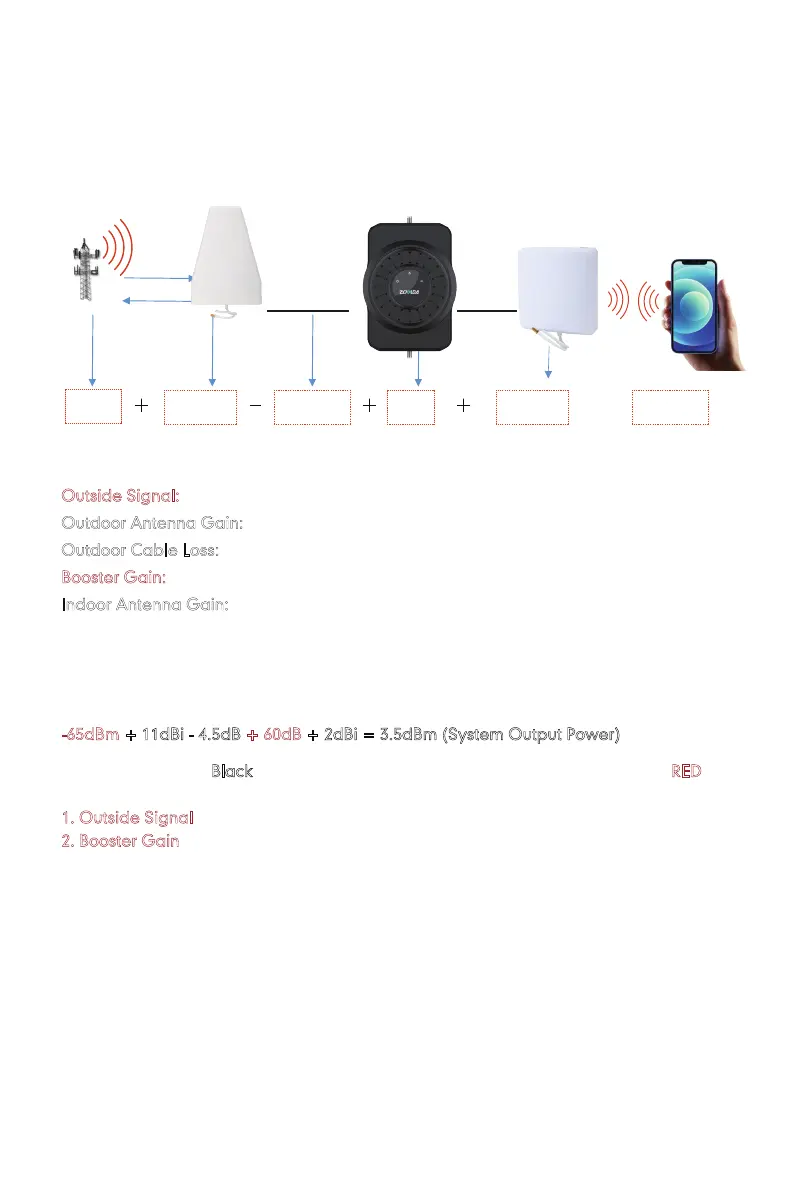

Working Principle in Formula
Outside
Signal
Outdoor
Antenna Gain
Outdoor
Cable Loss
Booster
Gain
Indoor
Antenna Gain
System
Output Power
Out of the Formula:
Outside Signal:
To be received by outdoor antenna from cell tower
Outdoor Antenna Gain:
The gain of outdoor antenna
Outdoor Cable Loss:
The loss of the outdoor cable
Booster Gain:
The actual working gain of the booster
Indoor Antenna Gain:
The gain of indoor antenna
For example:
-65dBm + 11dBi - 4.5dB + 60dB + 2dBi = 3.5dBm (System Output Power)
Since the figures in Black color are fixed when you finish the purchase, thus the RED
figures of
1. Outside Signal
2. Booster Gain
will play a vital role in reaching the best output power during the
installation, especially when we know the FCC limits the booster system values.
So the user guide is focused on:
1. Getting the best outside signal.
2. Keeping the maximum booster gain.
=
