Zotac B150ATX Series

B150ATX series Motherboard
14
SPDIF-Out Header-CN4
This header provides a SPDIF (Sony/Philips Digital
Interface) output to digital multimedia device through
coaxial connector.
CN4 - Pin Denition
Pin Signal
1 GND
2 SPDIF-out
3 VCC
q PWRLED
Attach the front panel power LED cable to these
two pins of the connector. The Power LED indicates
the system’s status.
q PWR SW
Attach the power button cable from the case to
these two pins. Pressing the power button on the
front panel turns the system on and off rather than
using the power supply button.
q HDD LED
Attach the hard disk drive indicator LED cable to
these two pins. The HDD indicator LED indicates
the activity status of the hard disks.
q RST SW
Attach the Reset switch cable from the front panel
of the case to these two pins. The system restarts
when the RESET switch is pressed.
Note: Some chassis do not have all four cables. Be
sure to match the name on the connectors to the
corresponding pins.

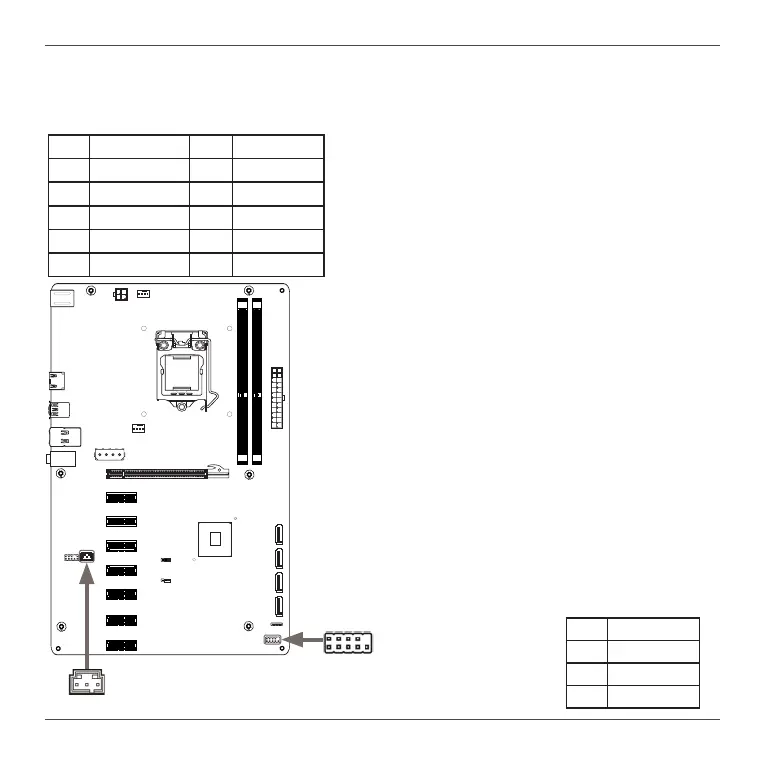

Front Panel Header-FP1
The front panel header on this motherboard is one connector used to connect the following
cables :
CN4
1
120
240
121
1.5V
120
240
121
1.5V
115XLM
REMOVE
+
FP1
FP1-Pin Denition
Pin Signal Pin Signal
1 HDD_LED+ 2 PW_LED+
3 HDD_LED- 4 PW_LED-
5 GND 6 PWR_SW
7 RESET 8 GND
9 NC 10 KEY
