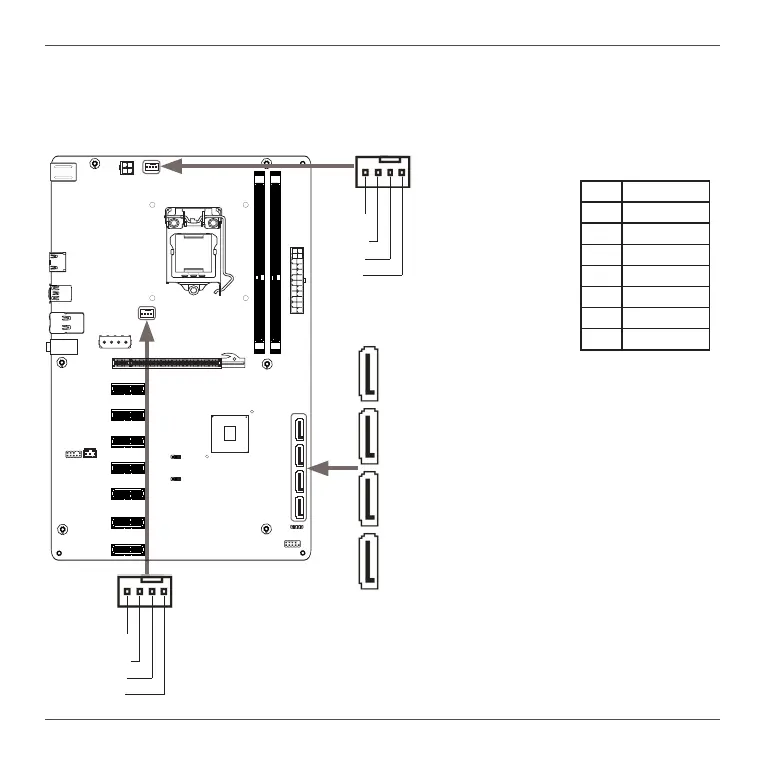

Serial-ATA (SATA) Connectors (SATA1~4)
The Serial ATA connector is used to connect the Serial ATA device to the motherboard. These
connectors support the thin Serial ATA cables for primary storage devices. The motherboard
incorporates four SATA III ports (SATA1-4) with maximum tranansfer rate up to 6.0 Gb/s each.
SATA-Pin Denition
Pin Signal
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
Fan Connectors
There are two fan connectors on the motherboard, including system
fan connector-SYSFAN1 and CPU fan connector-CPUFAN1.
120
240
121
1.5V
120
240
121
1.5V
115XLM
REMOVE
+
CPUFAN1
SATA1
GND
+12V
Sense
Control
GND
+12V
Sense
Control
SYSFAN1
SATA2
SATA3
SATA4
