B150ATX series Motherboard
1. PS2 Mouse Port
3. HDMI Port
2. PS2 Keyboard Port
4. USB 3.0 Ports

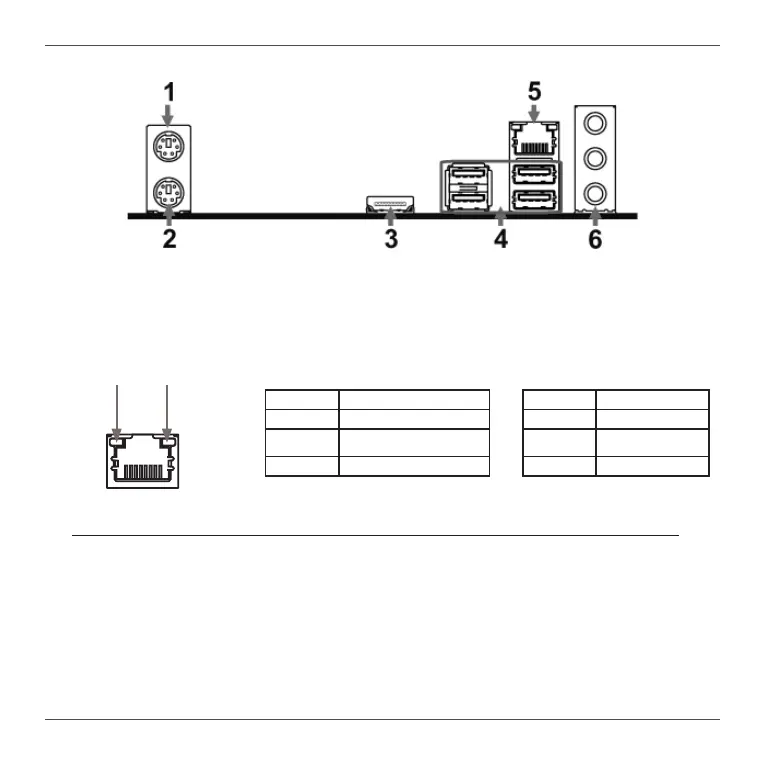

Figure 2. Backpanel connectors
Activity LED
Status Descritption
Off No link
Orange Linked
Blinking Data activity
5. LAN port LED indicators
Speed LED
Status Description
Off Speed: 10 Mbps
Green Speed: 100 Mbps
Orange Speed: 1000 Mbps
Speed LED Activity LED
6. Port 2-Channel 4-Channel 6-Channel
Blue Line-In Rear Speaker Out Rear Speaker Out
Green Line-Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Center/Subwoofer
