Chapter5ServiceConguration
zte(cfg)#setvlanpvlansession1promis-port26isolate-port1-3
lCongurationVerication
zte(cfg)#showvlanpvlan
pvlansession:1
promis-ports:26
promis-trunks:
isolate-ports:1-3
isolate-trunks:
community-ports:
community-trunks:
PVLANCongurationExampleTwo
lCongurationDescription
Addatrunk1andisolatedports4,5and6intosession2.SeeFigure5-15.

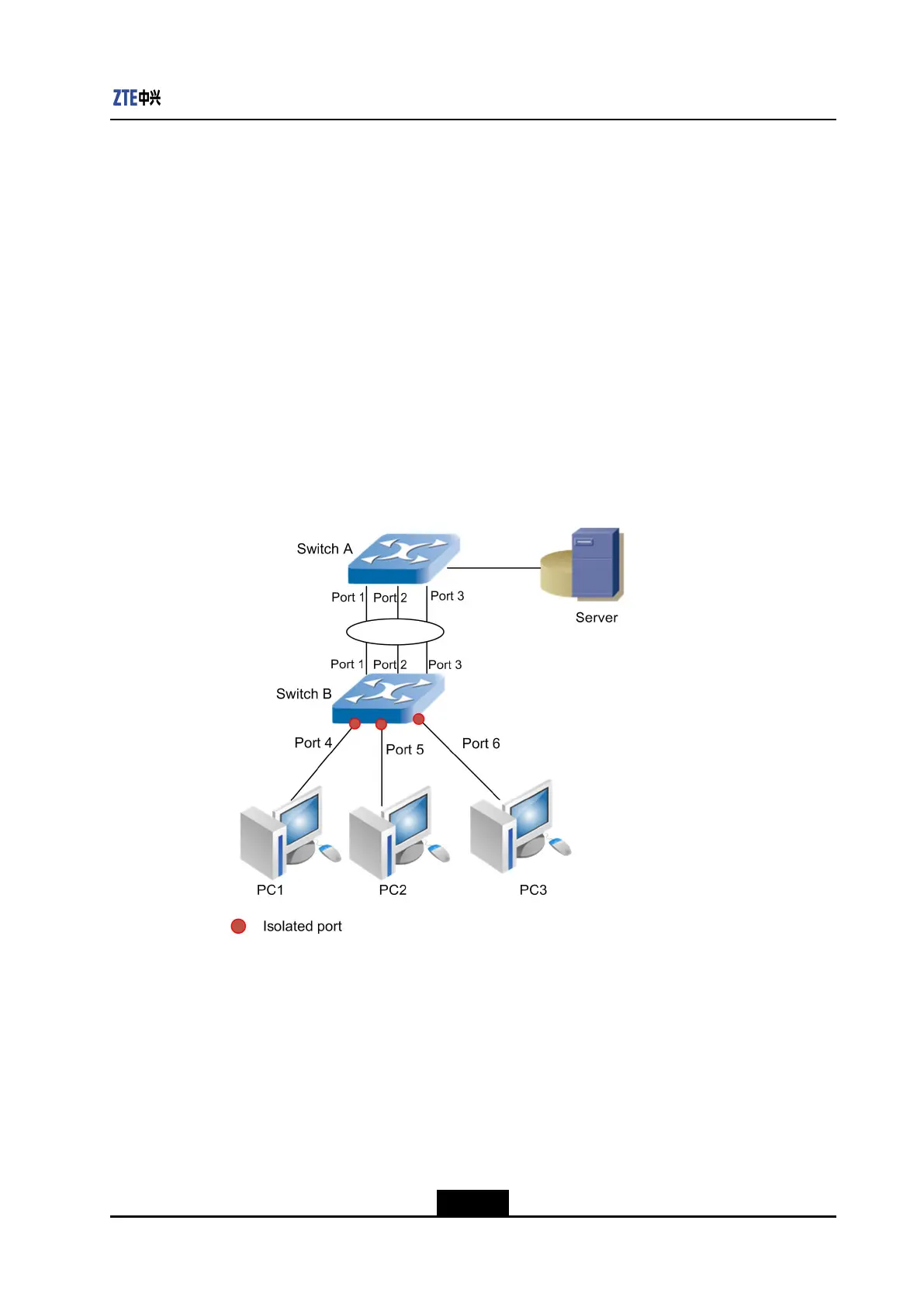

Figure5-15PVLANCongurationExample2
lCongurationProcedure
1.CongurationofswitchA:
zte(cfg)#setlacpenable
zte(cfg)#setlacpaggregator1addport1-3
zte(cfg)#setlacpsggregator1modedynamic
2.CongurationofswitchB:
zte(cfg)#setlacpenable
zte(cfg)#setlacpaggregator1addport1-3
zte(cfg)#setlacpaggregator1modedynamic
zte(cfg)#setvlanpvlansession2promis-trunk1isolate-port4-6
