Chapter5ServiceConguration

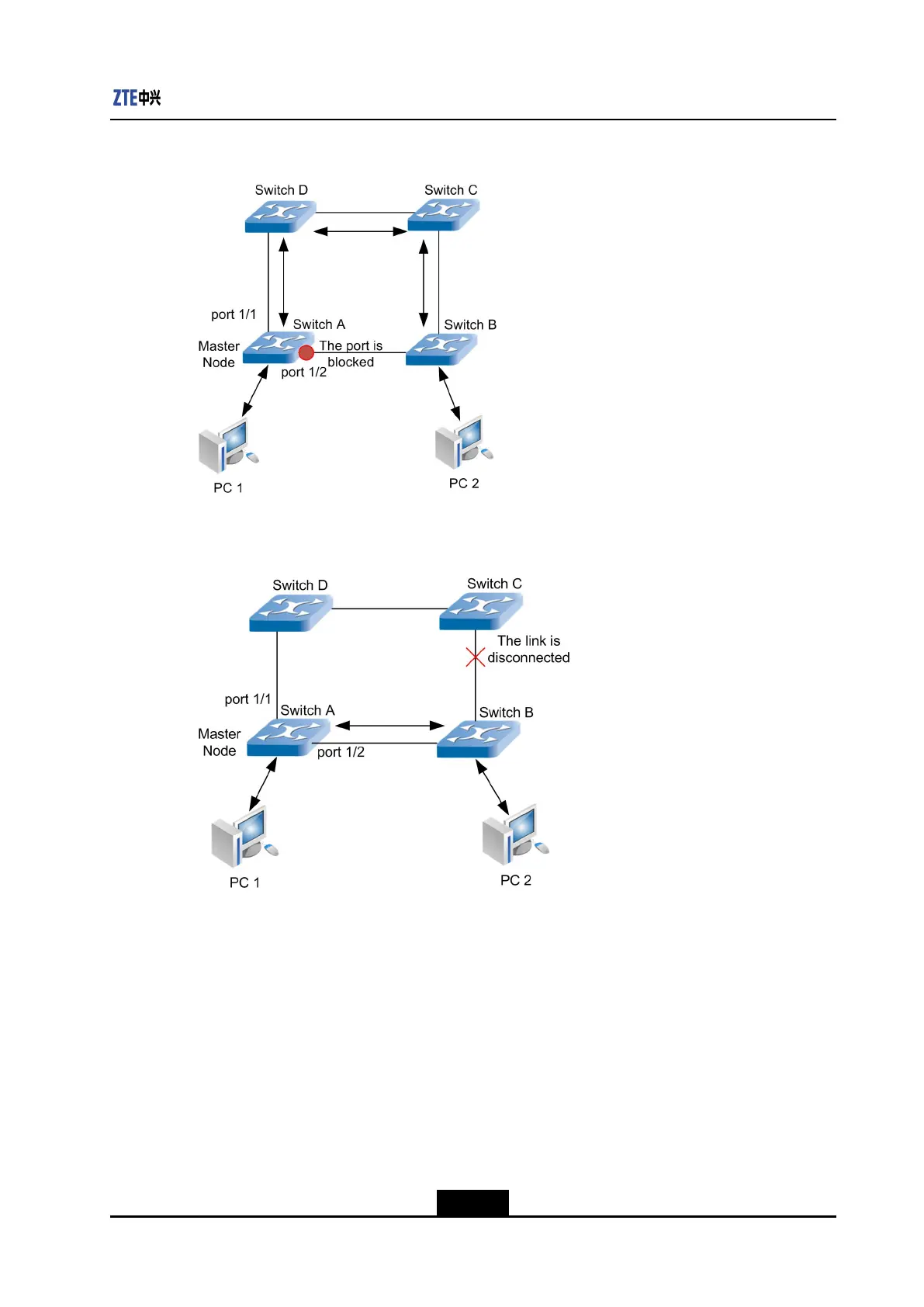

Figure5-37DiagramoftheMasterNodeBlockingitsSecondaryPortWhentheRing
isinUPState
Figure5-38DiagramoftheMasterNodeOpeningitsSecondaryPortWhentheRing
isinDOWNState
AsshowninFigure5-37,alllinksoperateproperly,theringisinUPstate,thesecondary
portofthemasternodeisblocked,andtrafcneedstogothroughswitchCandswitchD.
AsshowninFigure5-38,thelinkbetweenswitchBandswitchCisdisconnected,thering
stateischangedtoDOWN,ZESRrapidlytransitsthesecondaryportofthemasternode
toForwardingstate,andtrafcisswitchedquicklytoswitchAwithoutgoingthroughswitch
CandswitchD.
WhenthelinkbetweenswitchBandswitchCrecoversfromdisconnection,thesecondary
portofthemasternodeisblockedagain,theringisswitchedtoUPstate,andtheentire
ZESRregionreturnstothestateshowninFigure5-37.
