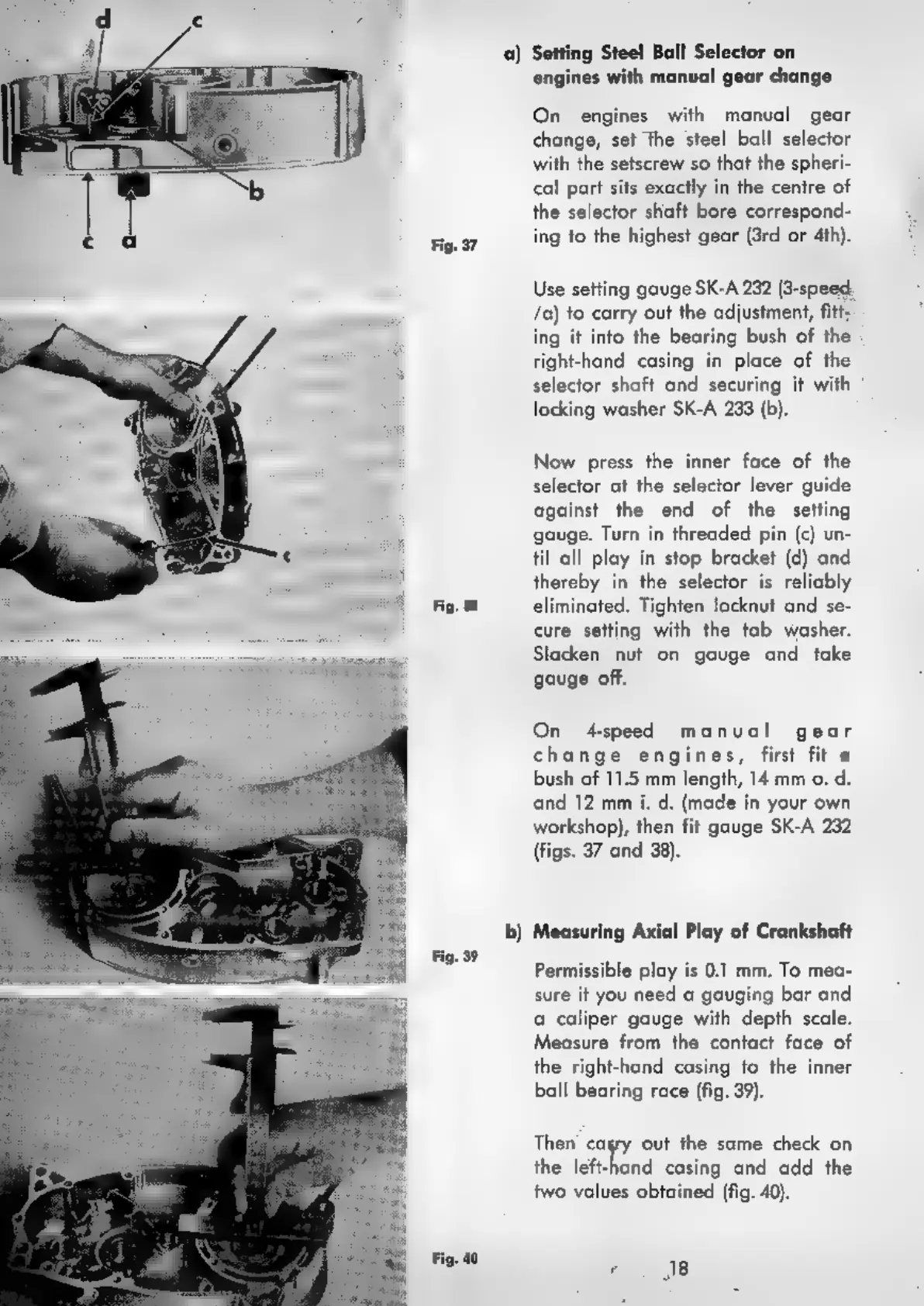

a) Setting Steel Ball Selector on
engines with manual gear change
On engines with manual gear
change, set the steel ball selector
with the setscrew so that the spheri-
cal part sits exactly in the centre of
the selector shaft bore correspond-
ing to the highest gear (3rd or 4th).
Use setting gauge SK-A 232 (3-speed.
/a) to carry out the adjustment, fitt-
ing it into the bearing bush of the
right-hand casing in place of the
selector shaft and securing it with
locking washer SK-A 233 (b).
Now press the inner face of the
selector at the selector lever guide
against the end of the setting
gauge. Turn in threaded pin (c) un-
til all play in stop bracket (d) and
thereby in the selector is reliably
eliminated. Tighten locknut and se-
cure setting with the tab washer.
Slacken nut on gauge and take
gauge off.
On 4speed manual gear
change engines, first fit a
bush of 11.5 mm length, 14 mm o. d.
and 12 mm i. d. (made in your own
workshop), then fit gauge SK-A 232
(figs. 37 and 38).
D Measuring Axial Play of Crankshaft
Permissible play is 0.1 mm. To mea-
sure it you need a gauging bar and
a caliper gauge with depth scale.
Measure from the contact face of
the right-hand casing to the inner
ball bearing race (fig. 39).
Then cagry out the same check on
the left-hand casing and add the
two values obtained (fig. 40).
